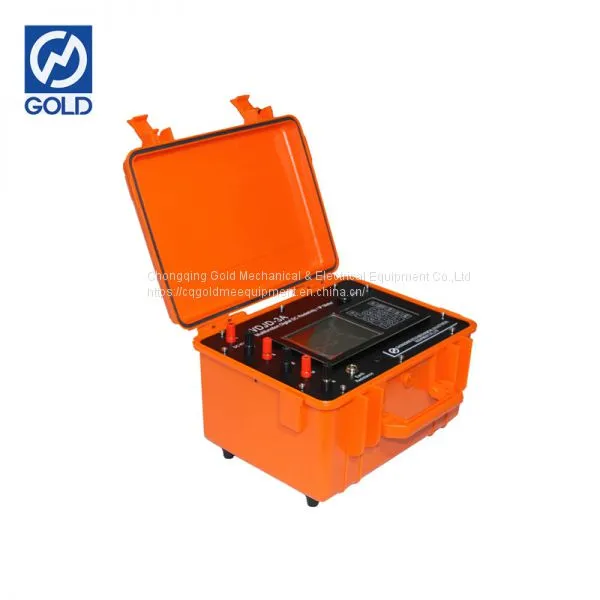

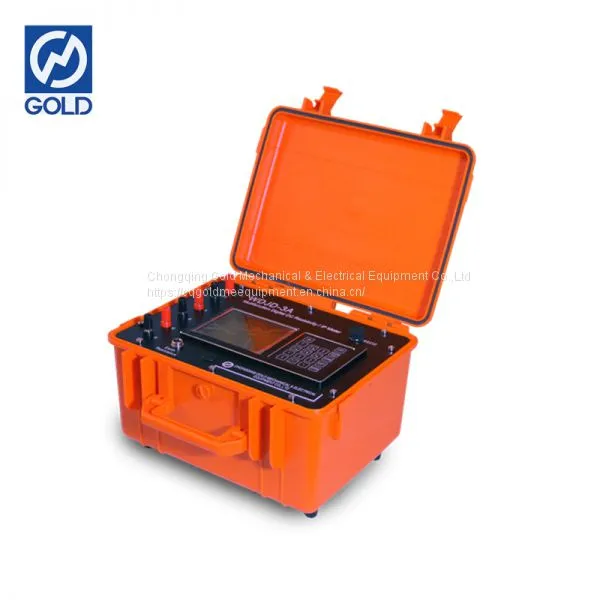

Fast Speed Geological DC Resistivity Instrument Underground Mineral Detector
Technical Specification
Main Application
Introduction

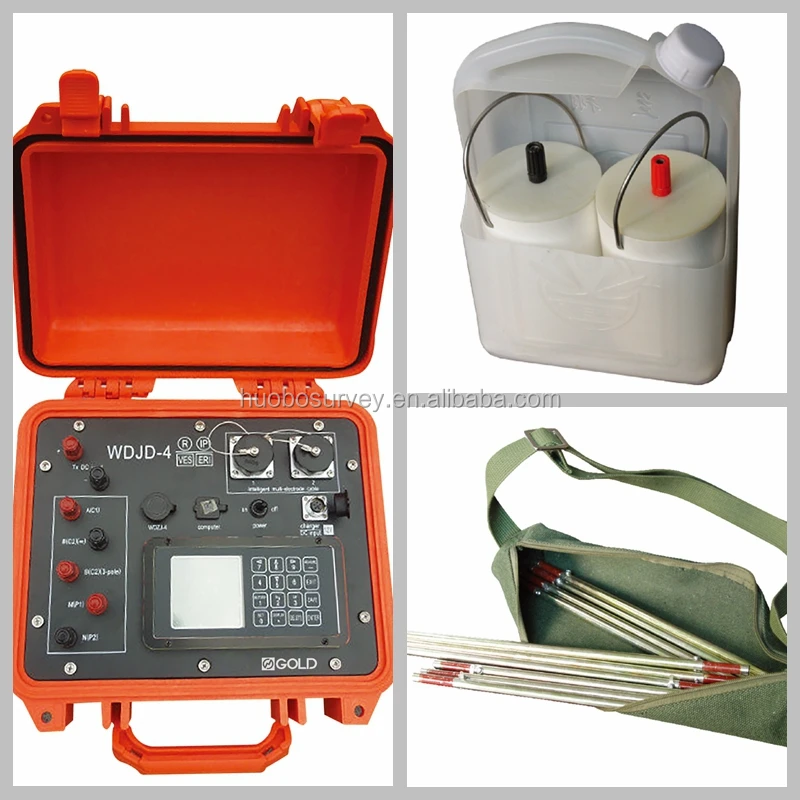

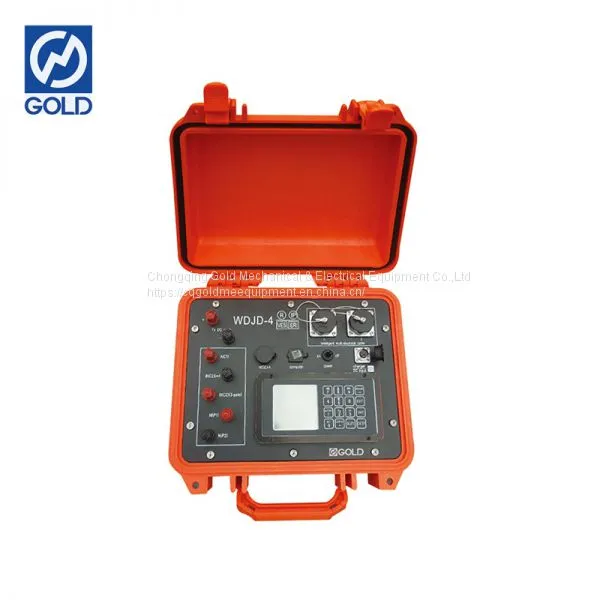

WDJD-4 Multi-function Digital DC Resistivity/IP Meter is our new generation model with 32 single-chip and 24 bit A/D technology on the basis of years of experience of design and manufacture, which could carry on Res and IP survey at the same time. It features multiple functions, high accuracy, fast speed, high reliability and excellent expandability. Measured data of WDJD-4 can be processed by other multi-electrode resistivity software, which makes the interpretation more convenient.
The single WDJD-4 can conduct general electrical resistivity/IP survey with twist pair wire, iron electrodes and power source. If WDJD-4 is used together with WDZJ-4 multiplex electrode switcher multi-electrode cable, electrodes and power source, it can conduct not only general electrical resistivity/IP survey but also multi-electrode 2D Resistivity imaging.
Main Features
• Transmitting unit and receiving unit are of all-in-one design, portable and lightweight.
• Super high-power, high anti-interference performance and precision: up to 6600w (1100v×6A) power, 48Vp-p voltage range ensures to get a good result in a area with high resistance.
• Automatically achieving compensation of self-potential, drift and electrode polarization, up to ±10V.
• Receiving unit support transient over-voltage protection, transmitting unit supports over-voltage protection, over-current protection and AB open-circuit protection.
• For general resistivity and IP survey function, 9 types of electrode arrays are available. Electrode distance (namely “Program”) can be inputted or called. Geometric factor K can also be generated automatically or calculated manually; For multi-electrode 2D resistivity imaging, up to 18 electrode arrays are available. It could scanning measure according to fixed section (including AMNB, ABMN, AMBN, AMN, MNB, A-MN-B, Sp M, Sp MN, charge M, charge MN) or continuous rolling scanning measure according to variable section (including A-M, A-MN, AB-M, AB-MN, MN-B, A-MN rectangle).
• Program: the program can memorize 100 groups of electrode distances, avoiding repetitive input. Or you just input a program Id and step to call the corresponding electrode distances.
• Earth resistance inspection: ground condition can be inspected at any time.
• Mass data storage: Up to 1GB capacity (extended) enable store 5,000,000 groups measuring data (including current, voltage, SP, Ro, Ms, metal factor, TH, R, J).
• All parameter and data are under power-failure protection; and thus data will not be lost even thought the system shuts down accidentally.
• USB port enables it to transfer data to computer.

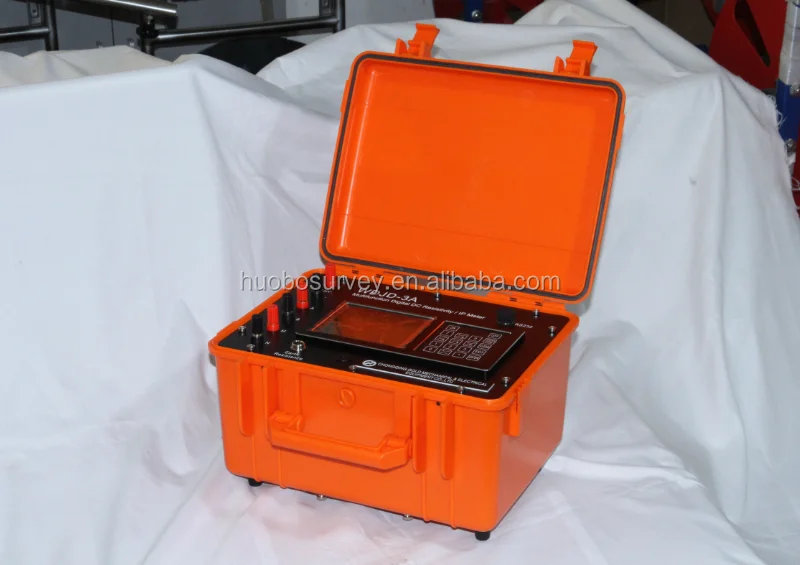

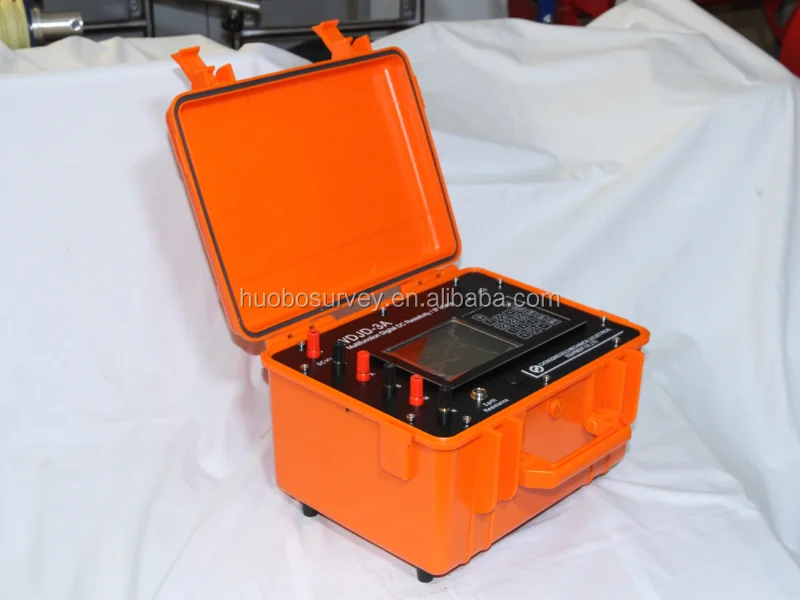

Product Show

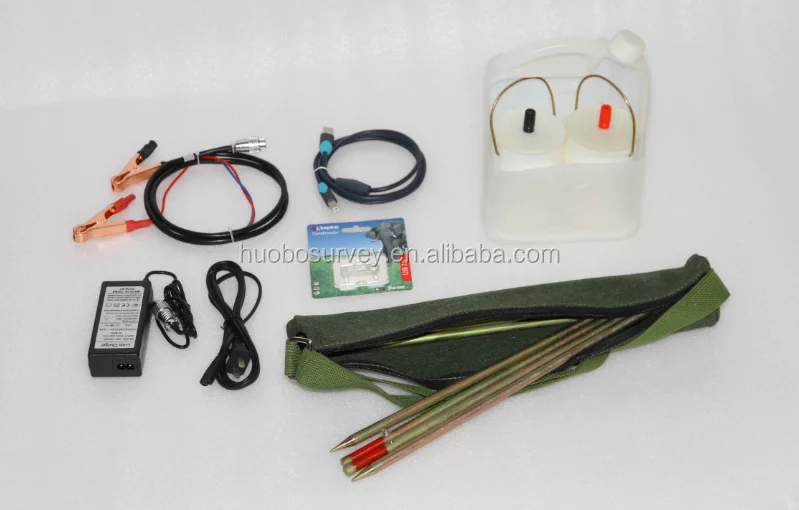

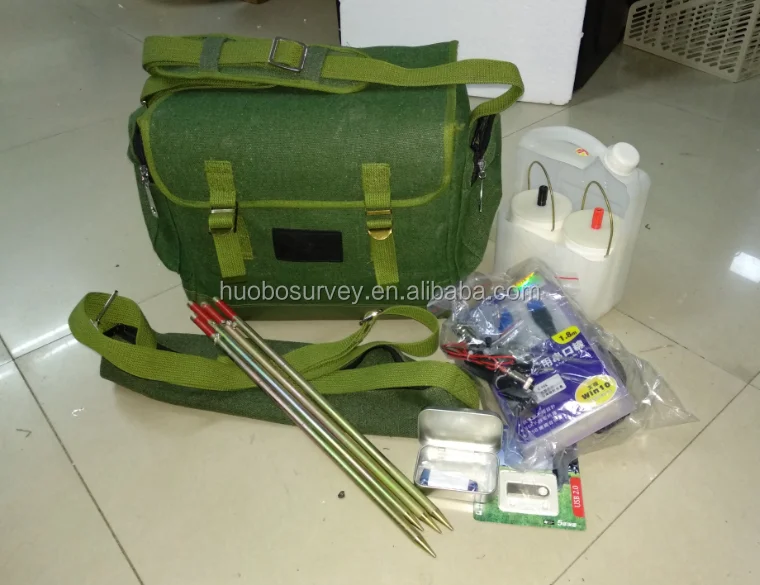

Packing
