Factory Directly Sell Digital Hydraulic, Air Pressure Gauges
Description Factory Directly Sell Digital Hydraulic, Air Pressure Gauges

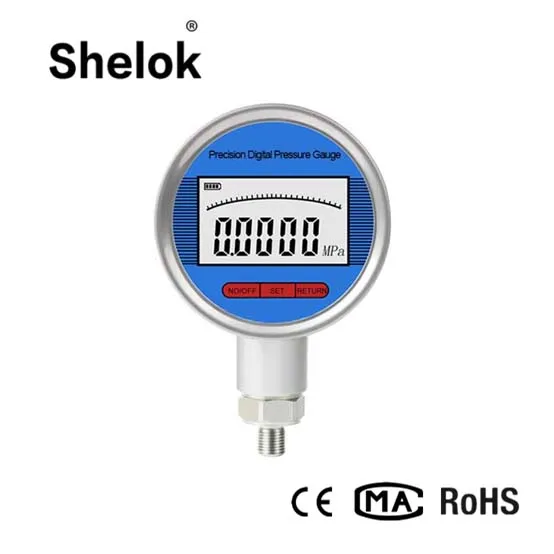

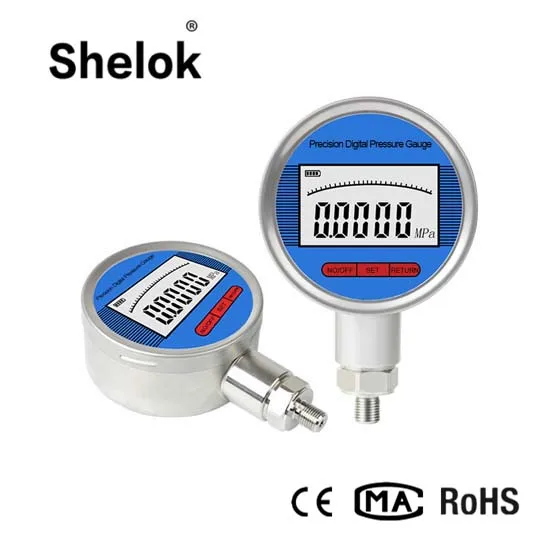

YK-100 digital precision presure gauge is a new product of our company, is mainly designed and produce for measurement work, with characteristic of high acquisition frequency, good stability, small precision loss, is most popular with the measuring workers.
Detailed Images Factory Directly Sell Digital Hydraulic, Air Pressure Gauges
Specification Factory Directly Sell Digital Hydraulic, Air Pressure Gauges
Factory Directly Sell Digital Hydraulic, Air Pressure Gauges | |
Pressure range |
-0.1~0MPa 0~100MPa |
Analog output |
4-20MA |
Data output |
RS485, RS232 |
Power supply |
Rechargeable battery |
Process connection |
M20*1.5 |
Display |
5 digits LED |
Over load |
1.5-3 times |
Medium temperature |
-40℃~70℃ |
Hysteresis |
0.01% |
Accuracy |
0.1%FS, 0.05%FS, 0.02%FS, 0.01%FS |
Isolation technology |
signal isolation technique, anti electromagnetic interference |
Zero |
zero automatically settled, don't need for calibration |
Progress display |
visual display of pressure percentage |
Dimension |
φ100mm × 34mm |
Weight |
0.75kg |
Features Factory Directly Sell Digital Hydraulic, Air Pressure Gauges
1.Visual display the bar charts of pressure percentage
2.Can realize the self calibration correction
3.Acquisition speed can be set to (0.3~10) s/time
4.The battery life of up to 5 years
5.The technology of signal isolation and Anti electromagnetic and Radio frequency interference
6.Zero self stabilization technology, temperature compensation technology
Selection Factory Directly Sell Digital Hydraulic, Air Pressure Gauges
YK-100 |
Code |
Accuracy |
||
A |
0.05 |
|||
B |
0.1 |
|||
C |
0.2 |
|||
D |
Flange |
|||
E |
Special Accuracy |
|||
Code |
Connection mode |
|||
1 |
M20*1.5 |
|||
2 |
1/2NPT |
|||
3 |
M14*1.5 |
|||
4 |
G1/2 |
|||
5 |
Special connector |
|||
Code |
Pressure type |
|||
G |
Gage pressure |
|||
D |
Differential pressure |
|||
A |
Absolute pressure |
|||
YK-100 |
A |
1 |
G |
|
