Full Automatic EPS Block Molding Machine

Full Automatic EPS Block Molding Machine thumbnail-1
Full Automatic EPS Block Molding Machine thumbnail-2
Full Automatic EPS Block Molding Machine thumbnail-3
Full Automatic EPS Block Molding Machine thumbnail-4
Full Automatic EPS Block Molding Machine photo-1

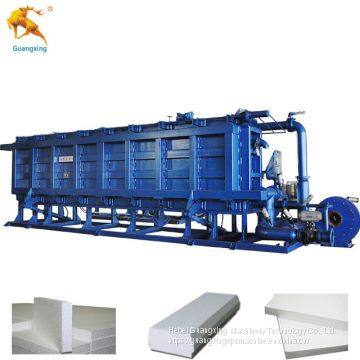

Full Automatic EPS Block Molding Machine photo-2

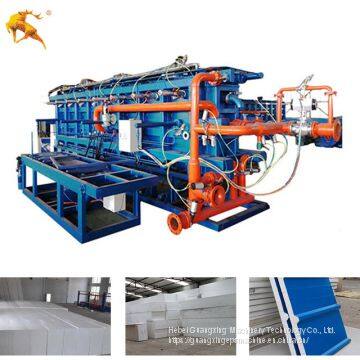

Full Automatic EPS Block Molding Machine photo-3

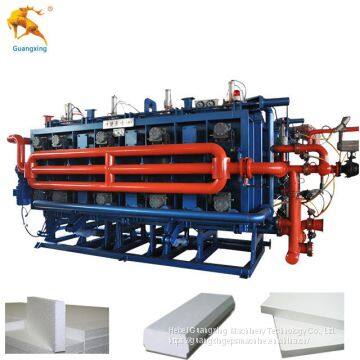

Full Automatic EPS Block Molding Machine photo-4
US$ 29000 - 32000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
OPTEM
Place of Origin:
China
Model Number:
PSB-300
Contact Supplier Request Quote Chat Now
Hebei Guangxing Machinery Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin
Delivery Detail:
1 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name OPTEM
Place of Origin China
Model Number PSB-300
Certification CE
After-sales Service Provided Engineers available to service machinery overseas
Warranty 1 year maintenance
Weight 5t
Dimension(L*W*H) 4500x2150x2950Mm
Voltage 380v
Product Type Other, Styrofoam EPS block, EPS insulated panel, EPS roof block , EPS cornice , EPS foam decoration ,
Condition New
Power(W) 9.5Kw


With 30 years experience , Guangxing Machinery make the qualified eps

 block machine,eps block molding machine, eps block making machine,

Vertical EPS Block Molding Machine and Adjustable EPS Block Molding

 Machines . We provide Turn-key service for EPS insulated panel production .

Technical Data:

Items

PSB-200

PSB-300

PSB-400

PSB-600

PSB-800

Net   Internal Size Of Mould Chamber

2040x1020x530mm

3060x1240x630mm

4080x1240x630mm

6120x1240x630mm

8120x1240x630mm

EPS   Block Size

2000x1000x500mm

3000x1200x600mm

4000x1200x600mm

6000x1200x600mm

8000x1200x600mm

Density

4.5-30Kg/m³

4.5-30Kg/m³

4.5-30Kg/m³

4.5-30Kg/m³

4.5-30Kg/m³

Production Efficiency

(Standard Condition)

Density: 4-8kg/m3 , cycle time : 2-4   Min/cycle

Density: 8-12kg/m3 , cycle time : 4-6   Min/cycle

Density:12-18kg/m3 ,cycle time : 6-10   Min/cycle

Density:18-30kg/m3,cycle time : 8-15   Min/cycle

Steam

Consumption

1tons block steam consumption around 2-4 Tons   steam

Compressed Air Entry

Consumption

Pressure

DN65

1~1.5m3/cycle

0.6Mpa

DN65

1.5~1.8m3/cycle

0.6Mpa

DN65

1.8~2m3/cycle

0.6Mpa

DN65

2~2.3m3/cycle

0.6Mpa

DN65

2.2~2.5m3/cycle

0.6Mpa

Power Supply

380V

380V

380V

380V

380V

Power

7Kw

9.5Kw

11Kw

15Kw

15Kw

Max. External Dimension

3600x2000x2750Mm

4500x2150x2950Mm

6500x2150x2950Mm

7500x2150x2950Mm

9500x2150x2950Mm

Installed Weight

3t

5t

7t

10t

12t





Main Machine Features：

Strong Machine Structure:

1) Main machine frame is welded by high-quality profile steel plate and

    strong rectangular tubes , ensure a strong machine structure from the base .

2) Processed by heating-treatment to release the welding stress, the machine

   frames is with high strength, non-deformation, and with and high resistance

   to the expansive force from high-density products.

3) In order to keep the rust away ,the machine will be processed by shot blast

    treatment or sand treatment . Then it is painted by several times anti-rust

    bottom painting and several times of anti-rust surface painting , which

   will achieve very good anti-corrosion performance and make the whole

   block molding machine with a longer lifetime .

4) The surface of the mould is made of special aluminum alloy panel or

    stainless steel sheet which can realize a high efficiency of heat conduction,

    favorable tensile strength and long service life.



Steam System :

The machine is integrated with overseas advanced and special penetrating

and heating techniques for shaping, and a high pressure suction fan for

material feeding, cooling with a strong penetrability, favorable adhenivity,

 low consumption of steam, high speed of shaping and low water content

so as to ensure the uniformity of inside and outside of the product.



Control System:

The machine is controlled by PLC (Shneider )full computer touch screen

displayer (Schneider ) which can realize a full automatic cycle operation

of mould opening, mould closing, material feeding, heating, heat preserving,

vacuum cooling, demoulding and extruding-out of finished products.


Kind Note :

1) If customer produce many EPS blocks with density over 18kg/m3 ,

he can consider to use vacuum type EPS block molding machine , which

will improve production efficiency 40~80%.

2) Guangxing technology is able to do EPS block molding machine for thicker

    EPS block size , such as 3000x1220x1220mm , 4000x1200x1000mm ,

    6000x1200x1000mm , ...Professional mature technolgy , good

    EPS block quality .










Product Tags: Full Automatic EPS Block Molding Machine , EPS Block Molding Machine , EPS Block Machine
