Home > Products > mine drilling rig > KQZ-200D Air Pressure and Electricity Joint-action DTH Drilling rig

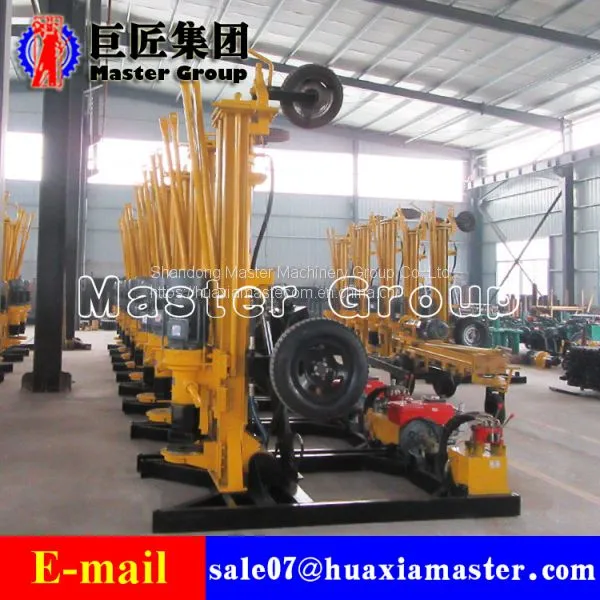

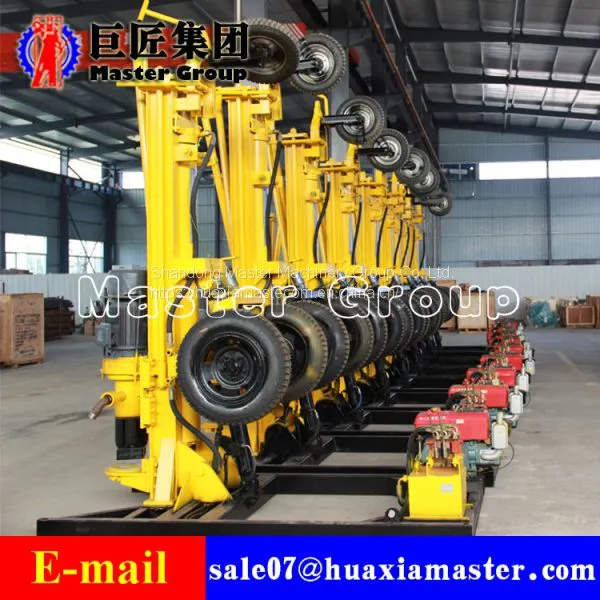

KQZ-200D Air Pressure and Electricity Joint-action DTH Drilling rig
- 100 Set / Sets per Month
- QingDao
- T/T D/P D/A
- 10 days
You May Like
Product Details
| Brand Name | HuaXia Master | Place of Origin | China | |
| Model Number | KQZ-200D | Weight | 650kg | |
| Application | drilling in all kinds of rock strata in open pit, water conservancy and construction slope treatment | Max. Drilling Diameter | 100-254mm |
Product Description
The brief introductions of KQZ-200D pneumatic drilling rig
KQZ-200D drilling rig is suitable for drilling and geothermal drilling. It has many advantages, such as large diameter, deep drilling, fast footage, flexible movement and wide application area.
The Specifications of KQZ-200D pneumatic drilling rig
KQZ-200D | ||
Borehole diameter | mm | 100-254 |
Borehole depth | m | 200 |
Drilling angle | ° | 45-90 |
One-time feed stroke | mm | 1500 |
Motor power | kw | 11 |
Diesel engine power | hp | 8.5 |
Rotating speed of drilling tools | rpm | 52 |
Air pressure | mpa | 1.45-2.5 |
Air consumption | l/min | 15-27 |
Total weight | kg | 650 |
