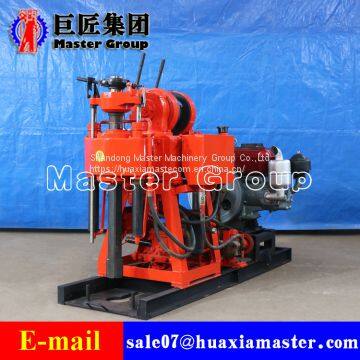

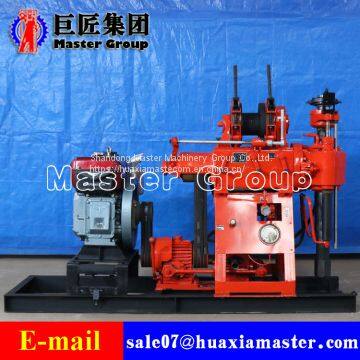

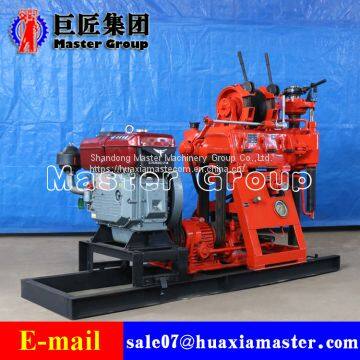

Help CenterDiamond Core Drilling Rig XY-180 Hydraulic Core Drilling Rig
Related Products
-
Road and High-rise Building Foundation Exploration XY-200 Hydraulic Core Drilling RigUS$ 5000 - 6000MOQ: 1 Set -
Rock Core Drilling Machine XY-3 Hydraulic Core Drilling RigUS$ 5000 - 6000MOQ: 1 Set
-
Wheels Portable Drilling Machine XYX-3 Wheeled Hydraulic Core Drilling RigUS$ 5000 - 6000MOQ: 1 Set
-
Crawler Mounted Drilling Rig XYD-3 Crawler Hydraulic Core Drilling RigUS$ 5000 - 6000MOQ: 1 Set
-
Vehicle-mounted Drilling Machine XYC-3 Vehicle-mounted Hydraulic Core Drilling RigUS$ 5000 - 6000MOQ: 1 Set
1. Applications of XY-180 core drilling rig
The XY-180 drilling rig is designed on the basis of the XY-1A drill. It is a low speed and high torque portable drilling machine with oil pressure.
This drill rig is suitable for engineering geological survey of railway, hydropower, traffic, bridge, dam foundation and other buildings, geological core drilling and physical investigation, drilling holes for small holes and blasting holes, a small water well drilled.
2. Parameters of XY-180 core drilling rig
Drilling depth（m） |
180/150/120/90/70/30 |
Borehole diameter（mm） |
75/91/110/130/150/300 |
Maximum opening diameter（mm） |
375 |
Drill pipe diameter（mm） |
42/50 |
Spindle Speed (r/min) |
71/142/310/620 |
Spindle Stroke（mm） |
450 |
Upgrading Ability (KN) |
15 |
Diameter of steel wire（mm） |
12 |
Type |
gear pump |
Model |
YBC-12/80 |
Rated pressure (MPa) |
8 |
Rated speed (r/m) |
1500 |
Displacement（ml/r） |
8 |
Power supply |
ZS1115 diesel engine and 15kw motor |
