Chongqing Gold Mechanical & Electrical Equipment Co., Ltd is specializes in manufacturing and development of geophysical equipment such as Resistivity Meter, IP instrument, Resistivity Imaging, Seismic Instrument, Magnetic Instrument, Borehole Camera, Borehole Logger, Drilling Equipment and Survey Instrument.

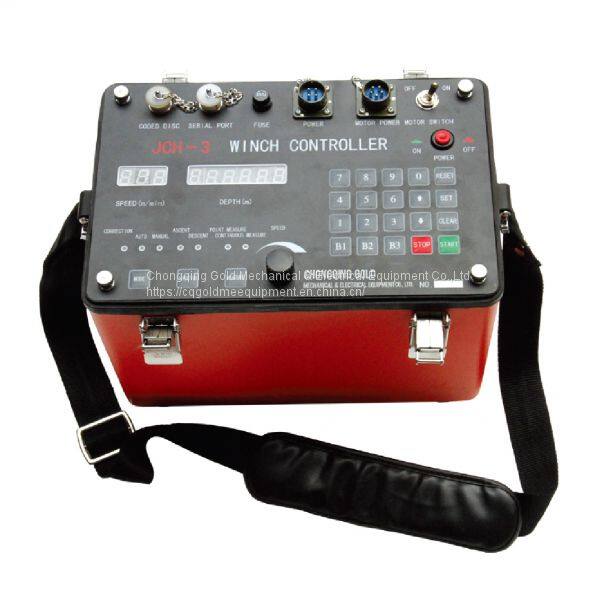

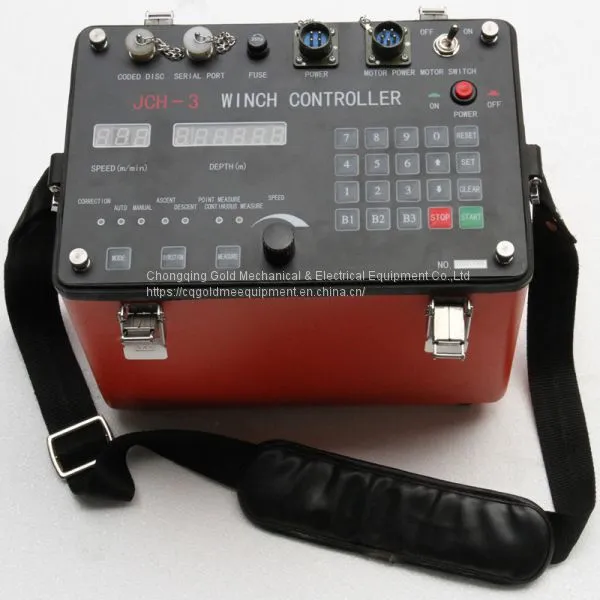

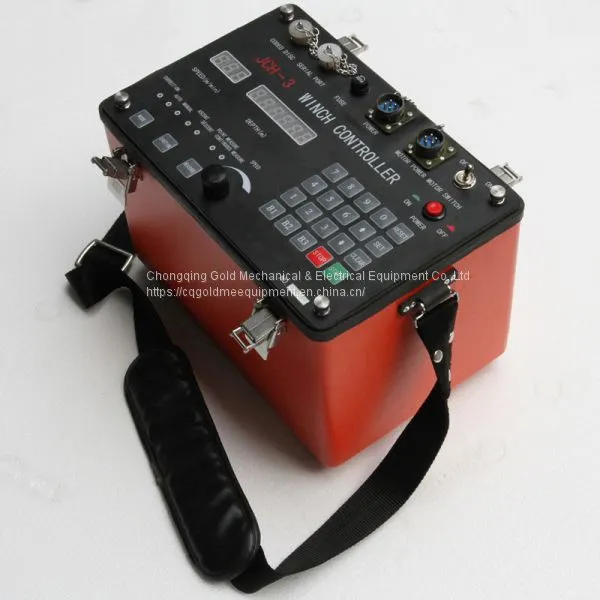

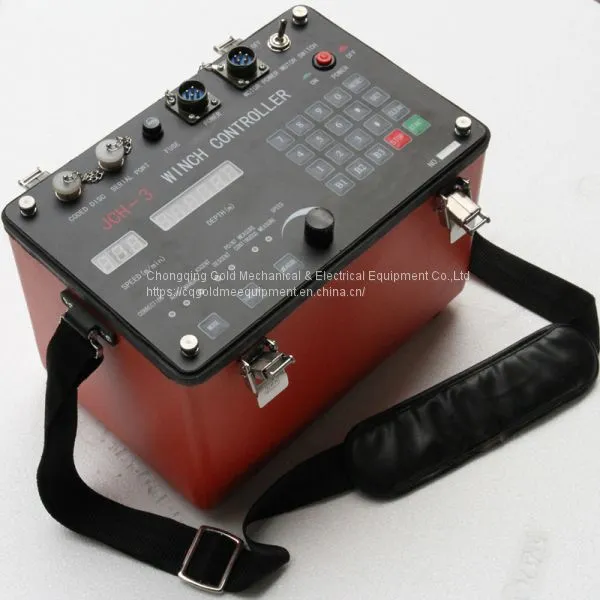

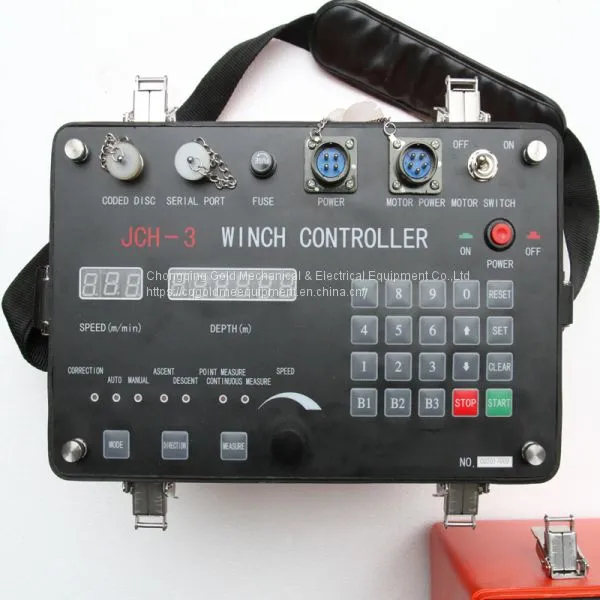

Well Digital Logging Survey System Borehole Testing Winch Controller
Technical Specification
• 12bit A/D Conversion, Program-Controlled Magnification K=0.5~128
• Counting Channel: f≤500KHz
• Digital Signal Transmission Frequency: 9600bit/s
• Power Supply Cycle: 400ms
• Current: 2mA~500 mA Optional
• Signal Input Range: ≤±10V
• Continuous Working Time: ≤24 hr
• Power Consumption:
• Volume: 420×260×210mm,
• Weight:
• Working Temperature Range: -10℃~ +50℃
• Working Power Supply: AC220V±10% 50Hz ±5%
• Logging Speed: 0~30 m/min Adjustable (as per sampling interval)
About Product
Applications & Features
• Coal Field Digital Integrated Logging.
• Hydrological Engineering Digital Integrated Logging.
• Solid Metal Ore Digital Integrated Logging.
• Other Minerals Digital Integrated Logging.
• External Laptop (Desktop PC).
• For upward logging, also for downward logging.
• Receive digital signal, analog signal.
• 8 taps of power supply current, Optional.
• Automatic sampling as per depth interval, sampling interval arbitrarily.
• Indoor simulation logging, repeatability observation of instruments and probes.
• Membrane panel, attractive and durable.
Product Show

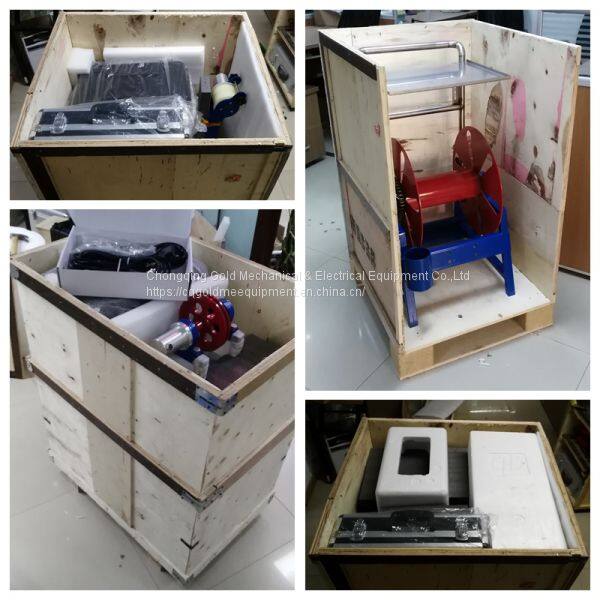

Packing

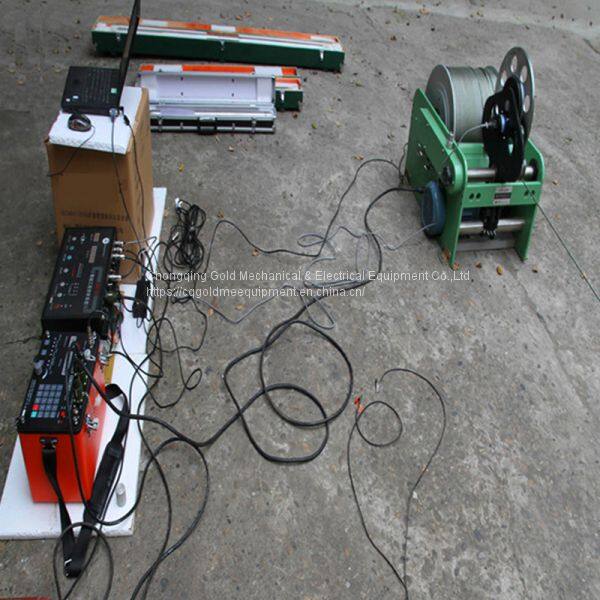

Produst Testing
Exhibition Show
Our Team
Product Series Show
Contact Information
Pls contact me if you are interested
