Outline

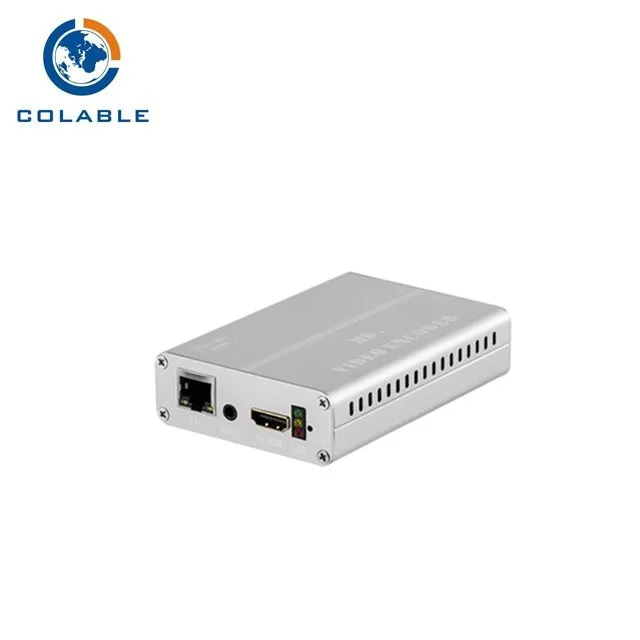

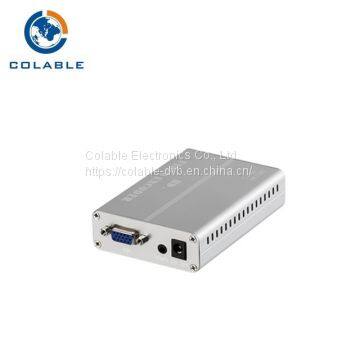

COL-8201HV single channel Multi-port H.265 encoder is most competitive cost and easy-to-use
video streaming appliance designed for professional video producers . The product support 1 ch
annel HDMI/CVBS/VGA/Ypbpr input, Encoding out dual stream of h.265 /H.264 with MP3/ AAC
audio format. From any HDMI input source such as a camera or switcher, it generates an H.265/
H.264-encoded stream compliant with RTSP, RTP, HTTP, UDP and RTMP protocols. The product
can be applied to education, health care, IPTV, conference, remote education, news interview,
banking, transportation and other industries.
Features
1. 1 channel HDMI/CVBS/VGA/Ypbpr input,
2. Support HLS &SDK
3. Support APP on Mobile phone
4. Support Wifi & auto research hot spot(optional)
5. Support lithium Battery(optional)
6. Support non-signal encoding
7. Support TS with Audio Alone
8. Low power consumption design
9. Up to 720P, 1080P HD video input
10. System supports WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN764, LINUX
11. Supports MP3 and AAC audio format selection
12. Encoding specification: BASELINE PROFILE / MAIN PROFILE/ HIGH PROFILE
13. Support a click to restore the default configuration
14. Support STB decoding
15. Support Main TS stream and the sub TS stream can use different network protocols for transmission
(Multi-rate multi-protocol support)
16. Support multiple equipments display at the same time on a computer
17. Support network directly connected, don’t need match HD collection card.
18. Providing RTSP/RTP/HTTP/RTMP/UDP protocol
19. Support H.265/H.264 and AAC audio.
20. Web control interface
21. Comply with CBR/VBR 16KBIT/S~12MBIT/S standard
Technical Specification
Video | Input | 1 channel HDMI/CVBS/VGA/Ypbpr input |
Resolution | 1920x1080p/1920x1080i/1280x720p/720*576i/720*576p/640*480i | |
Encoding standard | H.265/H.264 | |
Encoding | H.265 MAIN PROFILE H.264 BASELINE PROFILE H.264 MAIN PROFILE H.264 HIGH PROFILE | |
Bitrate mode | CBR/VBR 16KBIT/S~12MBIT/S | |
GOP type | Adjustable | |
Video preprocessing | De-interlacing, noise reduction, sharpening | |
OSD | Image, word | |
Audio
| Encoding | AAC,MP3 |
Resample Rate | Adaptive output sample rate (option) 32K, 44.1K, 48K, 64K, 96K, 128K, 160K, 192K | |
Sampling | 32000,44100,48000 | |
Bitrate | 64Kb/s~384Kb/s | |
System | RJ45 | 1000M Ethernet port |
Protocol | HTTP,UDP,RTSP,RTMP,ONVIF | |
Configuration interface | WEB interface | |
Upgrade | Software upgrades remoted | |
Environment | Dimensions | (W×D×H): 103mm x 70mm x 25mm |
Net Weight | 0.5KG | |
Temperature | -20℃+ 60℃ | |
Power Requirements | 12V -2A | |
Power consumption | 5W |
Application
IPTV digital headend
Encoding programs to YouTube
Internet conferencing system video capture
Remote education video system
Hotel TV System
Hospital, Bank, transport agency system
Colable Electronics Co., Ltd is locate in City Chengdu, Sichuan province, main science
and technology R&D center of west China, also one base on Radio and TV broadcasting
industry.
We are specializing on TV broadcasting for about ten years, with network building among
domestic and overseas. Our projects relate to different areas, such as city or village cove
rage, hotel, hospital, university, casino etc. Colable electronics is expert transforming tele
vision system from analogue to digital, or building new digital system in most cost-effective
way. That is the reason why our customers choose us.
Our main products include, satellite decoder (both free and scrambled styles MPEG2/4/
H.264 SD & HD encoder; TS multiplexer, scrambler, QAM/QPSK/COFDM modulator, CAS
& SMS, EPG, DVB-C/S/T set top box, MMDS transmitter, antenna, etc.
Products Qulity: Most of our products get CE approved:set top box have report from State Ad
ministration for Entry Exit Inspection and Quarantine.
Technical Support: Our R&D department is composed br the most experienced engineer with
young university graduate,bring new energy continuously. Customers will be informed at first time
as long as our software upgrade or new management software version come out .
Shipment Speed: All packages of orders will be shipped 2-5 days sfter customer deposit.
Usually we use the speediest DHL/UPS/Fedex for small order delivery,and we have long term
cooperated carriers for common air & sea delivery with cheap price and high speed.
Guarantee:All products will have life-long skill support ,head ends for free repair within 3 years.
Application
FAQ
1. Q: What is the payment way you can accept? A: L/C, TT, Western Union, Credit Card etc.
2. Q: What delivery way you adopt?
A: Usually we suggest sample or small order by express or air, big order or big size
goods by sea. We cooperate with many express companies (DHL , UPS, FedEx, EMS etc.)
and famous global carriers with high discount for freight.
