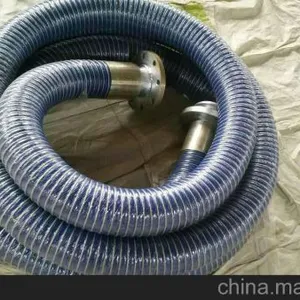

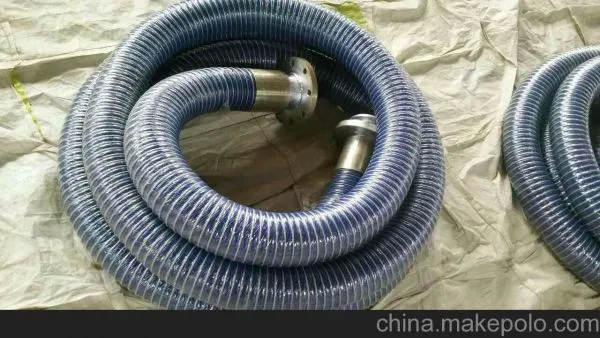

Help CenterChemical Resistant High Temperature Resistant Oil Convey Oil Transfer Hose
Related Products
-
High Pressure Pipe/tubing Paint Delivery Oil Transfer HoseNegotiableMOQ: 0 -
Petroleum Transportation Heat Resistant Oil Transfer Hose Large DiameterNegotiableMOQ: 0
-
Oil Hose Large Diameter Oil Transfer Hose Wear ResistantNegotiableMOQ: 0
-
High Pressure Oil Convey Oil Transfer Hose Large DiameterNegotiableMOQ: 0
-
Acids Transfer Oil Transfer Hose Oil-resistant High Temperature ResistantNegotiableMOQ: 0
WIRE: Galvanised carbon steel inner wire (G)
Galvanised carbon steel outer wire (G)
also available with 304 Stainless Steel internal or external wires 316 on request
COLOUR: Blue/Black/Red
Features:
Composite hose is 40% lighter than the rubber hose which has the same diameter and length.
Excellent flexibility
Good positive and negative pressure resistance
Excellent corrosion resistance for chemical liquid medium
Outstanding flame retardant property
Anti-static
Long-term durability
The CCS and ABS certificates are available.
Parameter：
Model |
Internal diameter mm |
Bending radius mm |
Working pressure Mpa |
Burst pressure Mpa |
Length m |
Connection mode |
RGH25 |
25 |
150±5 |
2.5 |
10 |
1～40 |
customer requirements |
RGH40 |
40 |
190±5 |
2.5 |
10 |
1～40 |
customer requirements |
RGH50 |
50 |
210±5 |
2.5 |
10 |
1～40 |
customer requirements |
RGH80 |
80 |
300±5 |
2.5 |
10 |
1～40 |
customer requirements |
RGH100 |
100 |
350±5 |
2.5 |
10 |
1～40 |
customer requirements |
RGH125 |
125 |
420±5 |
2.5 |
10 |
1～40 |
customer requirements |
RGH150 |
150 |
558±5 |
2.5 |
10 |
1～40 |
customer requirements |
RGH200 |
200 |
705±5 |
2.5 |
10 |
1～40 |
customer requirements |
RGH250 |
250 |
851±5 |
2.5 |
10 |
1～20 |
customer requirements |
RGH300 |
300 |
1100±5 |
2.5 |
10 |
1～10 |
customer requirements |
RGH350 |
350 |
1250±5 |
2.5 |
10 |
1～10 |
customer requirements |
RGH400 |
400 |
1450±5 |
2.5 |
10 |
1～10 |
customer requirements |
