ACSR
Standard of ACSR
This product can press GB1179-83, GB/T1179-1999 and Q/SX107-2001 standard and American standard ASTM - B231 manufacturing.The product is suitable for fixed installation transmission power line.Rare earth products conductive performance is good, strong anti-corrosion, acid resistance, is suitable for humid coastal areas.
Product Name and Model
|
ACSR（JL/G） | ||
| Nominal Cross Section (mm2) | Number/Monofilament /Diameter （mm） |
|
| Aluminum | Steel | |
| 10/2 | 6/1.50 | 1/1.50 |
| 16/3 | 6/1.85 | 1/1.85 |
| 50/8 | 6/3.2 | 1/3.2 |
| 70/40 | 12/2.72 | 7/2.72 |
| 95/20 | 7/4.16 | 7/1.85 |
| 120/70 | 12/3.60 | 7/3.60 |
| 150/35 | 30/2.50 | 7/2.50 |
| 185/45 | 30/2.80 | 7/2.80 |
| 210/50 | 30/2.98 | 7/2.98 |
| 240/40 | 26/3.42 | 7/2.66 |

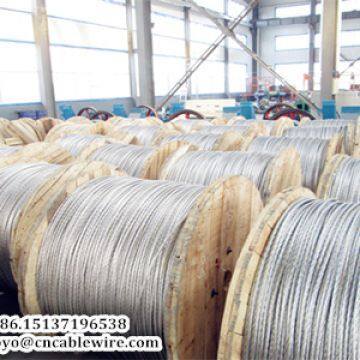

Model Picture of ACSR
Use Features of ACSR
1. ACSR maximum allowable working temperature does not exceed 80 ℃.
2. Laying temperature should not be less than -20 ℃.
3. The wire allows bending radius of 12 times the cable diameter.
Application of ACSR
ACSR used for overhead power transmission and other places, and can withstand considerable tension.
GB standard: GB14049-93
Conductor: aluminium
Bending radius:
Single core: 20 (D + d) ± 5% mm
Multi-core: 15 (D + d) ± 5% mm
Gongyi Shengzhou Metal Products Co., Ltd. is a professional China Wire and Cable Manufacturers, mainly supply YC Rubber Sheathed Cable,YH Rubber Cable,RVV Cable,YJV Cable,Aluminium Conductor Steel Reinforced(ACSR),Aerial Insulated Cable,ABC Cable,House Electric Wire, etc. series of wire and cable products, sincerely welcome everyone to visit.
