RS485 Common Pressure Transmitters, Pressure Sensors 4-20mA Display
Description RS485 Common Pressure Transmitters, Pressure Sensors 4-20mA Display
YD31 Series pressure transmitter is a series pressure transmitter of our standard transmitter.
Imported chip assembly, reflecting a world-class pressure transmitter technology.Compact, rugged. Light weight, easy to install. Easy to use. Maintenance-free. Zero outside the range can be continuously adjusted, a wide range of migration. Suitable for a variety of occasions in harsh environments and corrosive media.

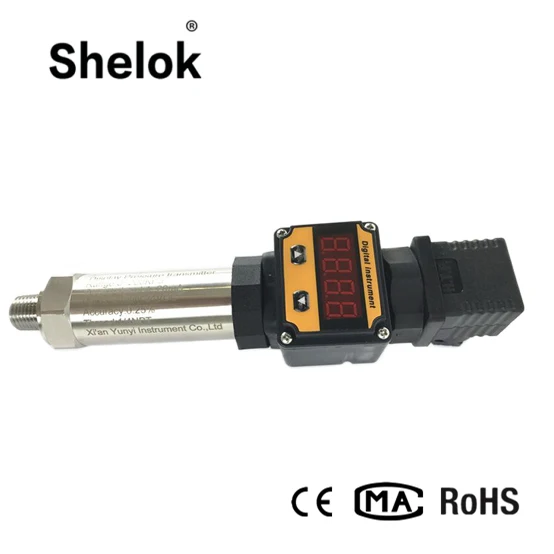

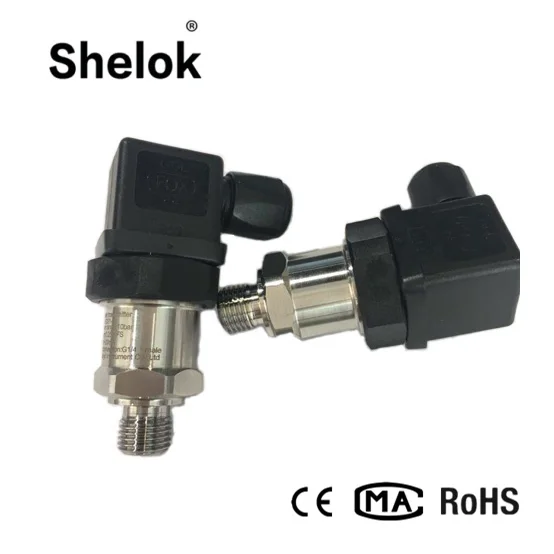

Detailed Images RS485 Common Pressure Transmitters, Pressure Sensors 4-20mA Display
Specification RS485 Common Pressure Transmitters, Pressure Sensors 4-20mA Display
RS485 Common Pressure Transmitters, Pressure Sensors 4-20mA Display | |
Media | Oil, water, gas and compatible with 316L stainless steel |
Pressure | Ceramic type:0.1-40Mpa |
Overload | 2 times (10MPa or less); 1.5 times (10MPa or more) |
Accuracy | ± 0.1% FS ,± 0.2% FS , ± 0.5% FS,± 1% FS |
Nonlinear | <± 0.2% FS |
Hysteresis and repeatability | ≤ ± 0.1% FS |
Long-term stability | ≤ ± 0.1% FS / year |
Zero drift | ≤ ± 0.02% FS / ℃ |
Response time | ≤500ms (standard) |
Output | Current 2-wire: 4 ~ 20mA |
Supply voltage | DC24V (12 ~ 32VDC, less may contact) |
Electrical connection: | Standard for Hersman, optional direct outlet or M20 PIN Aviation |
Related products
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
Company Information
Shelok considers itself not only a manufacture but more conprehensively a provider of industry specific customer-oriented solutions.Our profound understanding of product application and strong technical backgrounds ensure you the best product solution and achieve a greater success.
Xi'an Shelok Instrument Technology co.,ltd is a professional R&D center and manufacture of measuring instruments.And here's a variety of products for you choice: pressure transmitters,temperature transmitters,flow transmitters,weighing instruments and so on.Our products have been made by advanced technology, with high quality, fast delivery period, which have attracted so many domestic and foreign customers.
Packing & Shipping
