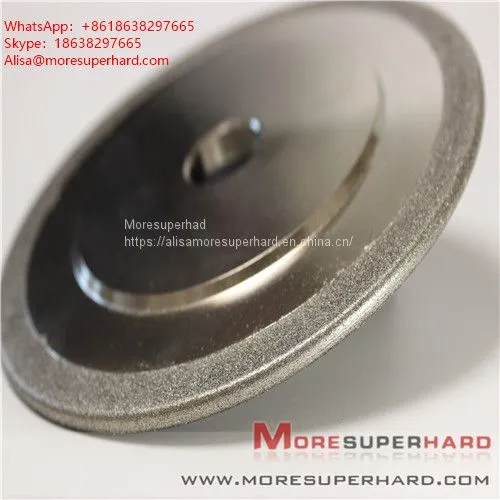

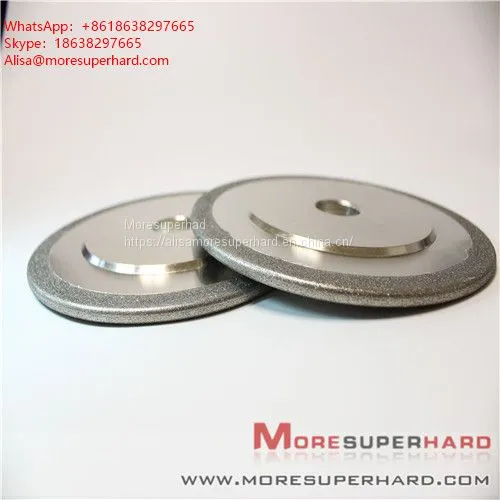

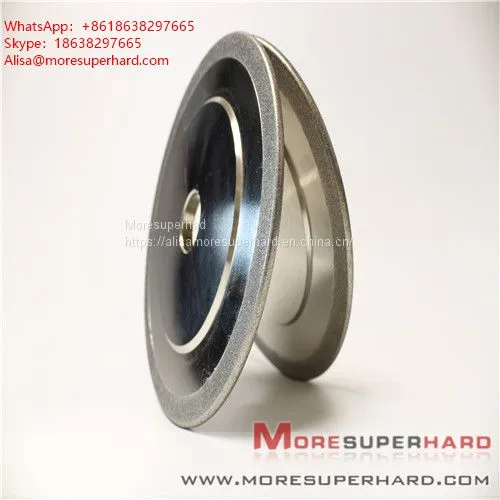

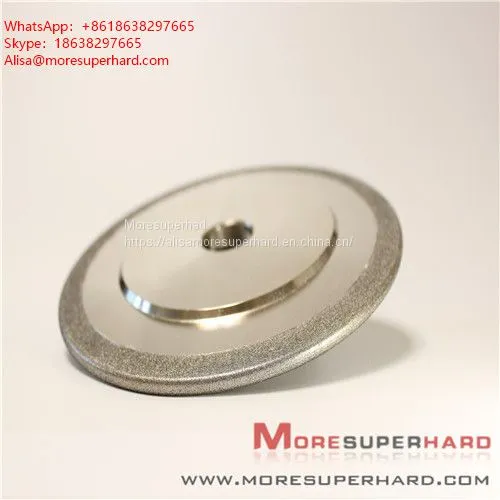

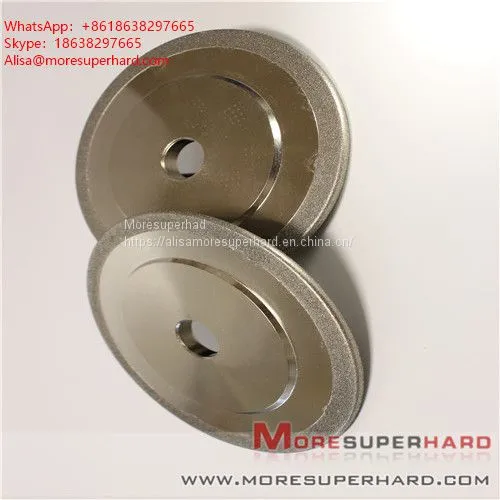

Electroplated diamond CBN grinding wheel can be used for surface grinding, internal grinding and external grinding Alisa@moresuperhard.com
- 1000 Piece / Pieces per Month
- Shanghai
- T/T PayPal Other
- 7 days
- Precision Grinding of 400 Mesh Tungsten Steel Cutting Tools with Double Beveled Sharp Angle Grinding Wheel Electroplated Diamond Sand
- 125mm resin diamond grinding disc green abrasive SDC2000 mesh metallographic grinding machine polishing
- Customized cup shaped electroplated grinding wheel for machining hard alloy knives with precision grinding of 1000 grit diamond sand
- DIACRYSTON CBN Wheels 75Dx5Wx1Xx12°x0.04Rx24H CBN400MD
- Mini cubic boron nitride resin slice outer diameter 30 ultra-thin thickness 0.8mm CBN1200 mesh
- 3M™ Cubitron™ II Fibre Disc 180mm crossing 27698 36+ / 27740 60+
Product Details
Brand Name: | Moresuperhard | Place of Origin: | China | Size: | 100*40*10 |
Shape: | Cup-Shaped | Hardness: | N | Bonding Agent: | Rubber |
Abrasive: | Diamond |
Product Description
Electroplated diamond and Cubic Boron Nitride (CBN) tools are made up of a basic single layer or multi-layers (depending on application) that are bonded to the tool surface using a nickel matrix. The product can be made with various shapes and they are suitable for special complicated profile, surface grinding ,Internal grinding, Slot grinding,Profile grinding and others form grinding.
Description:
The electroplated grinding wheels have characteristics of high grain density ,sharp grinding ,high efficiency, good precision ,without dressing etc. The product can be made with various shapes and they other form grinding which have strict requirement on geometry and a lot of tools which are difficult to process with other methods can be solved here .are suitable for special complicated profile , super-thin ,especially small and other form grinding which have strict requirement on geometry shape and dimension ,Therefore it improves the process efficiency and a lot of tools which are difficult to process with other methods can be solved here .
Electroplated CBN products :Mainly used for machining metallic material such as chilled cast iron ,founded alloy steel ,titanium alloy and so on .
Features
1. Very Good Abrasion Resistance
2. Good Form-holding capability
3. Least Resistance to Damage
4. Chemical Stability
5. Controllable Stock Removal Rate and Surface Finish Characteristics
6. Heat Resistance
Common Specification:
Specification | |||
Shape | Specification(Diameter) | Grit | |
Plane grinding wheel | 50~400 | 36#~800# | |
Irregular grinding wheel | Less than 400 | 36#~800# | |
Electroplated grinding dot | 0.15~50 | 36#~800# |
Applications Of Electroplated Bond Grinding Wheels
diamond tools for non - ferrous industry | CBN tools for metallic materials industry |
* Carbide (grinding green and sintered tungsten carbide) * Ceramic (grinding ceramics like SIC, AJO,ZrO, etc) * Automotive (brake liners and cutting re-enforced rubber mouldings) * Pharmaceutical (grinding factitious knee joint) * Dental (profiling rubber bonded grinding pins) * Ferrite (grinding magnetic parts) * Chemical (grinding laboratory glass) * Graphite (grinding graphite parts) * Glass (grinding tubes, automotive components) * Fiberglass ,Plastics and Electronic components, etc | * High-speed tool steels * Die steel * Hardened carbon steels * Hardened stainless steels * Alloy steels,Titanium Alloy * Aerospace alloys * Abrasion resistant ferrous materials, etc |
Advantages Of Electroplated Diamond And CBN Wheels
No dressing procedure necessary,Body can be re-plated several times
High geometric and proportion precision,Complicated forming
retain their original shape and dimensions throughout their working life
Simple electroplated process, less investment convenient manufacturing
Excellent surface roughness, high grinding efficiency , long tool life
free-faster cutting, no dressing, less heating due to the diamond particles protruding from the surface.
We supply various kinds of diamond/CBN grinding wheel
1)Type:resin bond diamond/cbn grinding wheel,electroplated bond diamond/cbn grinding wheel,metal bond diamond/cbn grinding wheel,vitrified bond diamond/cbn grinding wheel.
2)Shapes:cup diamond/cbn grinding wheel,flat/plain diamond/cbn grinding wheel,taper cup diamond/cbn grinding wheel,dish diamond/cbn grinding wheel etc.
company Information
More SuperHard Products Co., Ltd is dedicated to finding solutions that help our clients in all markets succeed. More SuperHard has been manufacturing high-quality, competitively priced superabrasive diamond and cbn tools that are designed to perform in a wide range of industrial ,such as pcd tools grinding, natural diamond polishing, auto parts processing , thermal spray coated industry, optical glass, semicon and led industry, woodworking tool , cnc tool grinding and roll machining ,others ultral precision industry.
The company production and sales of products covered vitrified bond tools, resin bond tools, metal bond tools, electroplated diamond/cbn tools, vaccum brazed products, cvd diamond tools, polycrystalline diamond (pcd) tools, cubic boron nitride (cbn) tools.our objective is to meet all the customers’ needs and help every customer achieve maximum benefits. more brings in revenue for you, you win, we win!
More SuperHard supplies the wheels for several application mainly:
1.Carbide round tools on cnc machines : flute grinding, gash grinding, end facing, clearance angle and cylindrical grinding .
2. Insert grinding for machines such as: agathon, wendt, haas, waida and ewag.
3.Woodworking saw blade and tools .
4.Hss tools
5.Cutting wheels
our team
Many Years Of Experience Makes Our Work Team The Best Value And Quality Of Diamond And CBN Tools To Ensure A Continuous Development In Knowledge,Sincerity Service And Technology Progress.
Products Range:
1. vitrified bond/resin bond/Metal bond/Electroplated diamond grinding wheel & other diamond tools
2. PCD milling tools, PCD turning tools, PCD drilling tools, PCD engraving tools, PCD/pcbn inserts, PCD/pcbn cutting tools, PCD/pcbn grooving tools, CBN inserts
3. PCD/TSP diamond, CVD diamond tools, large size synthetic diamond, Natural diamond tools, diamond abrasive tools
4. diamond grinding&cutting discs, diamond cutting blade, diamond cup wheel, diamond dressers
5. Roller cutting tools, PDC cutters, PDC drill bits& PDC core bits
6. PCD tool grinder & PCD grinding machine
Our product’s advantages: 1.High grinding efficiency |
2.Wonderful edge quality |
3.Long service life |
4.High polishing efficiency |
5.Large Exports |
6.Considerable after-sell service |
7.Amazing performance |
8.Various types and sizes available |
9.Direct Factory Manufacturer |
10.Backing/substrate material: Aluminum |
11.Abrasive layer: diamond |
12.Bond: vitrified |
13.Excellent cutting edges |
14.Reduced cycle times |
15.Custom Engineered |
