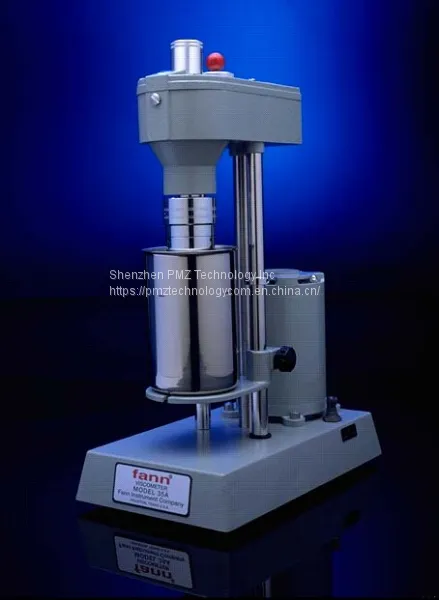

Model 35 Viscometer

Viscometer Model 35Widely known as the Standard of the Industry for drilling fluid viscosity measurements


DIRECT TO ME: INFO, PMZTECHNOLOGY, COM


Fann produces a range of true Couette coaxial cylinder rotational viscometers. The Model 35 Viscometer is the best known and most commonly used Fann viscometer.


The test fluid is contained in the annular space or shear gap between the cylinders. Rotation of the outer cylinder at known velocities is accomplished through precision gearing. The viscous drag exerted by the fluid creates a torque on the inner cylinder or bob. This torque is transmitted to a precision spring where its deflection is measured and then related to the test conditions and instrument constants.


This system permits the true simulation of most significant flow process conditions encountered in industrial processing.


Direct Indicating Viscometers combine accuracy with simplicity of design, and are recommended for evaluating materials that are Bingham plastics. Model 35 Viscometers are equipped with factory installed R1 Rotor Sleeve, B1 Bob, F1 Torsion Spring, and a stainless steel sample cup for testing according to American Petroleum Institute Specification RP 13B.


Other rotor-bob combinations and/or torsion springs can be substituted to extend the torque measuring range or to increase the sensitivity of the torque measurement. Shear stress is read directly from a calibrated scale. Plastic viscosity and yield point of a fluid can be determined easily by making two simple subtractions from the observed data when the instrument is used with the R1-B1 combination and the standard F1 torsion spring.




The Model 35 Viscometer has been evaluated for compliance, and fulfills the requirements of EN 61010-1:2010, CAN/CSA C22.2 No. 61010-1-2012 and UL61010-2-030:2012.


A copy of this Declaration of Conformity is available upon request.





 Ordering Information and Specifications


Six speed viscometers have speeds of 600, 300, 200, 100, 6, and 3 rpm


Twelve speed viscometers have speeds of 600, 300, 200, 180, 100, 90, 60, 30, 6, 3, 1.8, and 0.9 rpm

FANN PARTS FOR VISCOMETER MODEL 35SA 207199

DIRECT TO ME : INFO ,  PMZTECHNOLOGY, COM

Model 35 Viscometer
Viscometer Model 35Widely known as the Standard of the Industry for drilling fluid viscosity measurements

Fann produces a range of true Couette coaxial cylinder rotational viscometers. The Model 35 Viscometer is the best known and most commonly used Fann viscometer.

Part No.    Model No.    # of Speeds    Voltage
207198    35A    6    115 Volts 60 HZ
207199    35SA    6    115 Volts 50 HZ
207200    35A/SR-12    12    115 Volts 60 HZ
207201    35SA/SR-12    12    115 Volts 50 HZ
101671767    35SA/SR-12 with Case and Transformer    12    115 Volts 50 HZ
101671768    35A with Case    6    115 Volts 60 HZ
101671770    35SA with Case and Transformer    6    115 Volts 50 HZ
101671771    35SA/SR-12 with Case

 PLUG SCREW   30999/207603

 HOUSING COVER ASSY.  30793/207496

 CLUSTER GEAR    30928/207559

 CLAMP NUT  30988/207597

 CLAMP SPACER  30989/207598

 CLAMP SCREW  30977/207588

 BOB SHAFT & DIAL ASSY.  30723/207445

 RETAINER  30027/207144

 LENS  30975/207586

 JACK SHAFT ASSY  30717/207440

 GEAR WORM  30716/207439

 WASHER  30715/207438

 LOWER DRIVE SHAFT  30925/207558

 SHIM    31275/207778

 SHIFT ROD ASSY  30822/207511

 STOP SCREW  30779/207487

SPLASH GUARD  30887/207539

 THRUST WASHER   31912/208002

 CENTER SHAFT GEAR ASSY   30830/207514

 FLEX COUPLING  30053/207152

 SWITCH BOOT  31288/207784

 SWITCH   32919/208365

 BALLS(6)  31271/207776

 STAINLESS STEEL SAMPLE CUP  30929/207560

FANN mud cup 209586

FANN screws 209501

FANN model 140 mud balance  206768

FANN model 141  TRU-WATE Pressuerized Balance  100003565

FANN model 140 mud balance without case  206769

FANN 102267855 RheoVADR Rheometer

102312548 Safe Cell Single Ended for Screens w/CellTell

206768 Mud Balance Model 140

206984 Rheometer Model 280 Hand-Powered

209540 Heating Jacket f/500ml HPHT FP 115V

207357 Mud Test Kit - Basic

210400 Mud Test Kit PORTA LAB ™ Model 853 (Airplane)

210402 Mud Test Kit PORTA LAB™ Model 855 (Offshore)

207228 Filter Press Half Area

207198 Model 35A Viscometer - 115v/60Hz

207200 Model 35A/SR-12 Viscometer - 115v/60Hz

205971 Hamilton Beach Model HMD400 / 3 Spindle - 115v/60z

102030761 Roller Oven, Model 802P, 600F, 2-cell

FANN 206051 N8700  FILTER PAPER API 3.54 (9CM) FOR FILTER PRESS, 100/PACK,

FANN 209586 38854  CELL HPHT 500ml 303SS 1800PSI SINGLE END

FANN   206056 (N8800) Filter Paper 2.5” Diameter, Box of 100

FANN   206051 (N8700) Filter Paper 3.5” Diameter, Box of 100

FANN VISCOMETER MODEL 35SA  10095275  207199

FANN ROTOR R-1 30847  207523

FANN BOB B-1 30844  207521

FANN CO2 Cartridges 208608  10pcs/box

FANN filters paper 206056 Box of 100

FANN filters paper 206051 Box of 100

FANN Back pressure Receiver 209542

101522348 Bath Digital Refrigerated 115V 28.4L

100047908 Press Hydraulic Manual 12 Ton

 FANN VISCOMETER MODEL 35SA S/N:10095275 & 7,P/N207199

 FANN COVER PLATE  39743/207459

 FANN SPLASH GUARD 30887/207539

 FANN SPLASH GUARD 30887/207539

 FANN PLUG SCREW 3099/207603

 FANNLENS  30975/207586

 FANNEXTERNAL RETAINING RING L4982/205697

FANN SWITCH BOOT 31288/207784FANN Electrical Stability Tester 208557 — EST Probe with Cable

FANN VISCOMETER MODEL 35SA S/N 10095275 & 7,P/N207199 REF: FANN

STAGE PART NO :30726/207448

RUBBER FEET (4)  PART NO :L7213/205779

BEARING (2) PART NO :30732/207450

SHIM PART NO :31899/207998

MAIN SHAFT GEAR  30920/207553

MAIN SHAFT KEY 30804/207506

RETAINER (2)  PART NO :31546/207867

BEARING SHIELD   30912/207546

CLAMP SLEEVE (2)  30986/207595

FANN VISCOMETER MODEL 35SA S/N 10095275 & 7,P/N207199 REF: FANN

DUST CAP PART NO :30973/207585

FANN  RESISTIVITY METER MODEL 88C DIGITAL  207960  31763

FANN  old 331979 NEW 102365354  ROLLER OVEN MODEL 705ET 1000 WATT

FANN 102410859   VISCOMETER MODEL 45

FANN 210463 Oil & Water Retort Kit,

FANN VISCOMETER MODEL 35SA S/N 10095275 & 7, P/N 207199

FANN 31771/207963  WORM GEAR

FANN 30917/207550  LOWER CHANGE GEAR

FANN 31794/207971  TEMP . WARNING TAG

FANN 30922/207555  BEARING ( COVER HOUSING)

FANN 30795/207498  SPEED SELECTION  TAG

FANN 30716/207439   GEAR WORM

FANN 30715/207438  WASHER

FANN 30712/207436  BUSHING

FANN 30813/207507   SHAFT & GEAR FOR JACKSHAFT ASSY

FANN 30701/207428  SPACER

FANN 30026/207143  INTERNAL RETAINING RING

FANN 31419/207817   FLAT WASHER

FANN 30725/207447  MOTOR (35SA)

FANN 30976/207587  IDLER SHAFT

FANN 30776/207485  FLAT SHAFT

FANN 31398/207814  EXTERNAL RETAINER

FANN 31919/208004  IDLER GEAR( 35SA)

FANN 31866/204371   STRAIN RELIEF

FANN A7003/203512  POWER CORD

Part No. Model No. # of Speeds Voltage

207198 35A 6 115 Volts 60 HZ

207199 35SA 6 115 Volts 50 HZ

207200 35A/SR-12 12 115 Volts 60 HZ

207201 35SA/SR-12 12 115 Volts 50 HZ

101671767 35SA/SR-12 with Case and Transformer 12 115 Volts 50 HZ

101671768 35A with Case 6 115 Volts 60 HZ

101671770 35SA with Case and Transformer 6 115 Volts 50 HZ

101671771 35SA/SR-12 with Case
