Panasonic CM402-M Pick and Place Machin

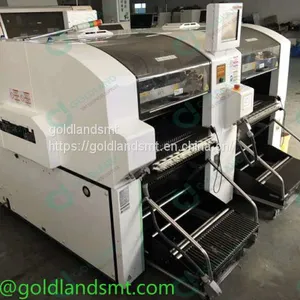

Panasonic CM402-M Pick and Place Machin thumbnail-1
Panasonic CM402-M Pick and Place Machin photo-1
US$ 200 - 300 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
panasonic
Place of Origin:
China
Model Number:
CM402-M
Contact Supplier Request Quote Chat Now
Goldlandsmt
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name panasonic
Place of Origin China
Model Number CM402-M

Panasonic CM402-M pick and place machine

If you don't see what you are looking for, please contact：jack@goldlandsmt.com

Description

MODEL ID: CM402-M

MODEL NUMBER:  KXF-4Y3C

PCB DIMENSIONS:  L 50 mm x W 50mm to L 330 mm × W 250 mm

HEAD TYPE:  Type A-2 (12/12 nozzles HIGH-SPEED)       (OPTION)

 Number of nozzles:    12 nozzles/head

 Maximum speed:    0.052 s/chip (69,500 cph)

 Placement accuracy:    ±40um/chip

 Component dimensions:  (01005")0402 chip to L 12mm x W12mm xT6.5mm

HEAD TYPE:  8+8 HIGH-SPEED                                (OPTION)

 Number of nozzles:    8 nozzles/head

 Maximum speed:    0.06 s/chip (60,000 cph)

 Placement accuracy:    ±50um/chip

 Component dimensions:  0201 (0603) C, R to L 24 mm × W 24 mm

HEAD TYPE:    8+3 MULTI FUNCTION                        (OPTION)

 Number of nozzles:    3 nozzles/head

 Maximum speed:    0.21 s/QFP (17,140 cph)

 Placement accuracy:    ±0.035 mm/QFP

 Component dimensions:    0402 (1005) C, R to L 100 mm × W 90 mm

PCB EXCHANGE TIME:  0.9 s (board length: up to 240 mm)

ELECTRIC SOURCE:  3-phase AC 200 V ±10 V / AC 400 V ±10 V, 2.5 kVA

PNEUMATIC SOURCE:    490 kPa, 150 L/min (standard, machine body only)

DIMENSIONS  W 2,350 mm x D 2,460 mm x H 1,430 mm

MASS    2,700 kg
