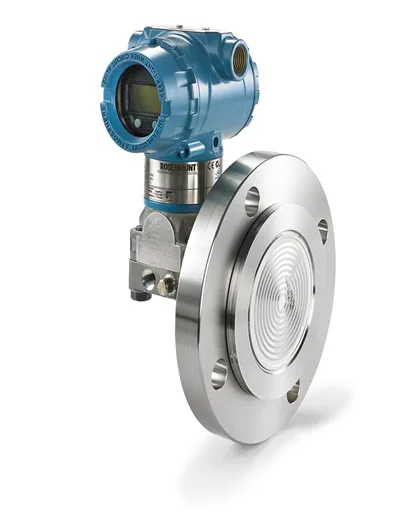

Rosemount 3051L is a fully-integrated level solution, which offers field-proven reliability. This transmitter is safety certified, and makes possible Tuned-System™ assembly or direct mounting. This helps reduce the temperature effects by 10-12%. The response time is improved by more than 80% compared to that of traditional installations. This helps in optimizing the overall performance.
Output
4-20 mA with digital signal based on HART Protocol
Low Power, 1-5 V dc with digital signal based on HART Protocol
Low power, 0.8-3.2 V dc with digital signal based on HART Protocol, optional
Range
0-8.3 inches H2O to 0-300 psi
Accuracy
+/-0.075% of span
Power
4-20 mA: 10.5-42.4 V dc with no load
Low Power: 6-12 V dc with no load
Materials
Sensor Wetted Parts: SST, Hastelloy, Monel, Tantalum
Process Flange: Carbon Steel, Stainless Steel
Fluid
Sensor fill fluid: DC 200 Silicone, DC 704, Silicone, Syltherm 800, Syltherm XLT, Inert (Halocarbon), Glycerin and Water, Neobee M-20, Propylene Glycol and Water
Mounting
Coplanar and Traditional flanges
Adapters: High-side Diaphragm: 316L SST, Hastelloy C-276
Max. Operating Pressure
Up to 300 psi (20,68 bar)
Process Connection
Flanged: ANSI/ASME, EN/DIN, JIS
Process Wetted Material
316L SST, Alloy C-276, Tantalum
Diagnostics
Basic Diagnostics, Power Advisory Diagnostics
Features
Power advisory diagnostics proactively monitor electrical loop integrity
Local Operator Interface (LOI) for simple, local commissioning on-site without the use of extra tools
Tuned-System Level assembly and direct mounting produce optimal performance for level applications
Factory-assembled and out-of-the-box ready level solution eliminates on-site assembly, testing and calibration
Optimized seal system construction ensures a quality measurement in harsh process conditions
SIL 2/3 certified to IEC 61508 (via 3rd party) and prior-use certificate of FMEDA data for safety installations
