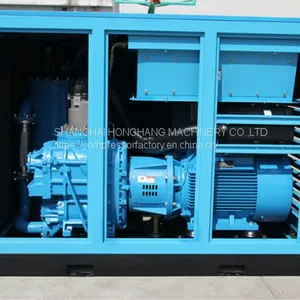

Two stage compression screw air compressor
Feature & Advantages:
Advantages of Two-stage Screw Air Compressor
The rotor was processed through more than 20 procedures, which guarantees the accuracy, reliability, and effectiveness of the rotor profile.
The replacement of the one-stage by two-stage can reach the pressure required and achieve energy-saving effect by 15% more.
The pressure ratio is reduced in every compressor stage, which will reduce the bearing load and expand the life of the host machine.
The Coolant spray curtain design allows the gas which is cooled by the spraying coolant after the first-stage compressor to the second-stage compressor directly, and this process will omit the intercooler, thus largely reduce the power consumption and the maintenance cost.
Technical Parameters:
Model |
Motor Power (kw/hp) |
Pressure (bar) |
Air Flow (m3/min) |
Outlet Inch |
Dimension (mm) |
Weight (kg) |
|
TSC-75A |
75/100 |
7 |
17.6 |
DN65 |
2570*1570*1760 |
3000 |
8 |
16.8 |
|||||
10 |
13.5 |
|||||
13 |
11.2 |
|||||
|
TSC-90A |
90/125 |
7 |
20.8 |
DN65 |
2570*1570*1760 |
3500 |
8 |
20.1 |
|||||
10 |
18.0 |
|||||
13 |
15.8 |
|||||
|
TSC-110A |
110/150 |
7 |
26.6 |
DN65 |
2570*1570*1760 |
3600 |
8 |
25.0 |
|||||
10 |
20.5 |
|||||
13 |
20.0 |
|||||
|
TSC-132A |
132/180 |
7 |
30.0 |
DN80 |
2800*1700*1850 |
4000 |
8 |
28.2 |
|||||
10 |
24.0 |
|||||
13 |
20.9 |
|||||
|
TSC-160A |
160/215 |
7 |
35.2 |
DN80 |
3165*1680*1945 |
4200 |
8 |
33.2 |
|||||
10 |
30.0 |
|||||
13 |
26.9 |
|||||
|
TSC-185A |
185/250 |
7 |
42.1 |
DN100 |
3500*1860*2100 |
4500 |
8 |
38.1 |
|||||
10 |
34.1 |
|||||
13 |
30.8 |
|||||
|
TSC-200A |
200/270 |
7 |
46.0 |
DN100 |
3500*1860*2100 |
4500 |
8 |
41.4 |
|||||
10 |
40.1 |
|||||
13 |
32.9 |
|||||
|
TSC-220A |
220/300 |
DN100 |
3500*1860*2100 |
4600 |
||
8 |
47 |
|||||
|
TSC-250A |
250/340 |
7 |
56.8 |
DN125 |
4240*2000*2100 |
6500 |
8 |
54.2 |
|||||
10 |
47.1 |
|||||
13 |
40.8 |
|||||
|
TSC-280A |
280/380 |
7 |
63.2 |
DN125 |
4240*2000*2100 |
6700 |
8 |
60.0 |
|||||
10 |
54.1 |
|||||
13 |
45.8 |
|||||
|
TSC-315A |
315/420 |
DN125 |
4240*2000*2100 |
7200 |
||
8 |
67.5 |
|||||
