Product Description

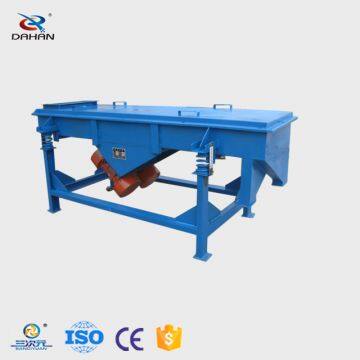

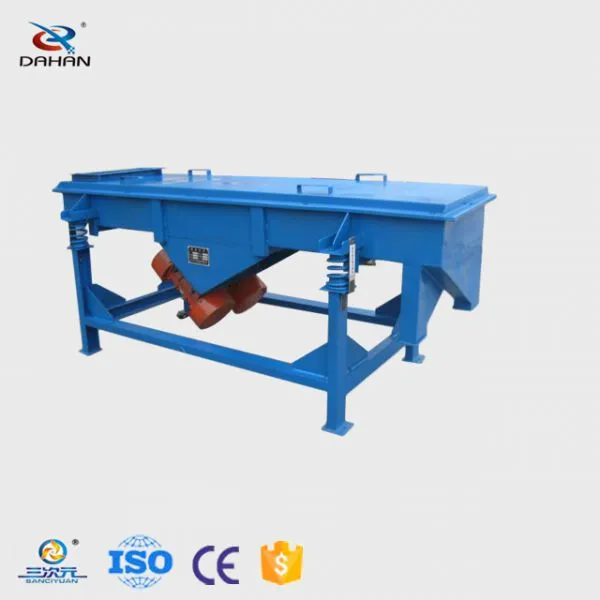

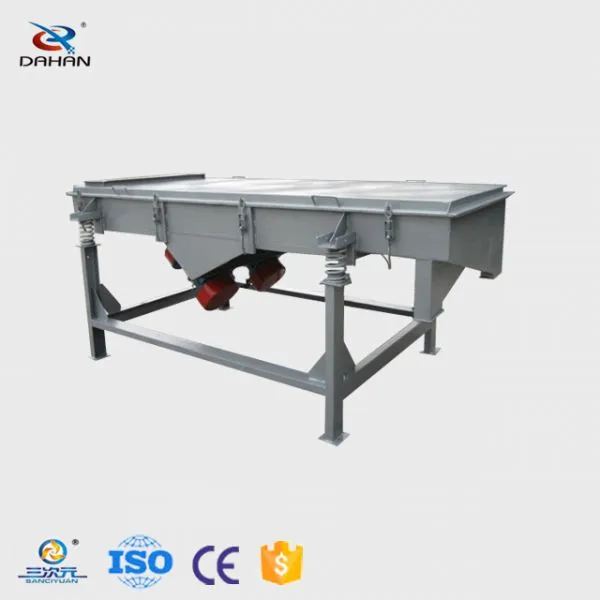

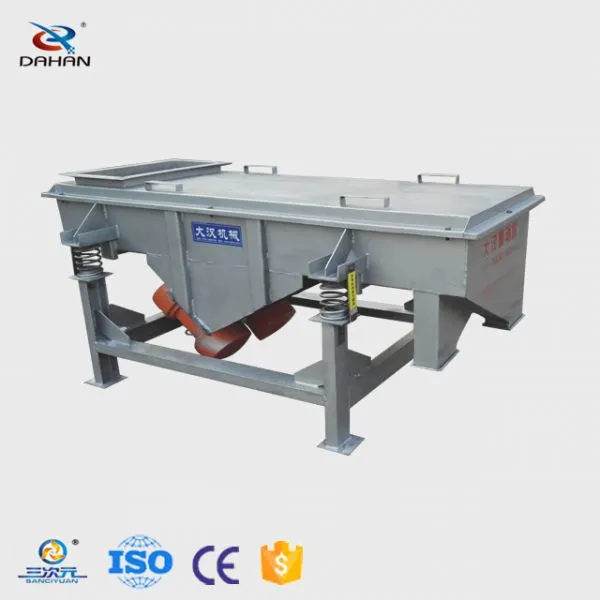

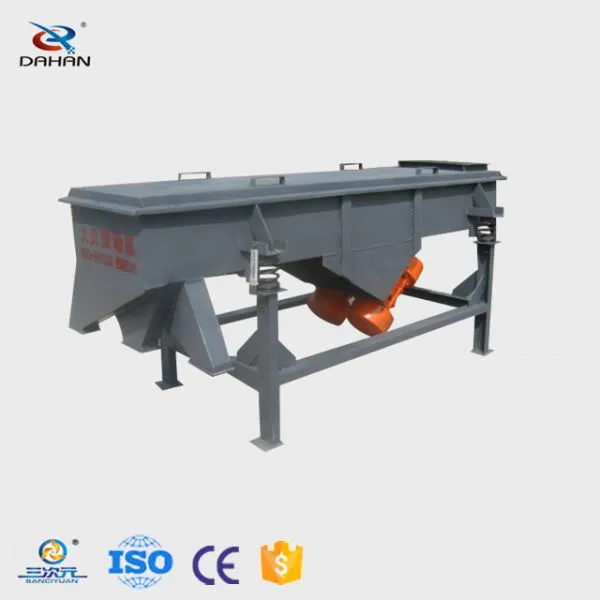

Large capacity fine sieving linear vibrating screen machine vibration motor
excitation as the source of vibration,so that the material was tossed in the sieve,
while forward in a straight line material evenly into the screening machine feeder
feed port,multi-layer mesh specifications of sieve,sieve material,respectively,
discharged from their exports.With low power consumption,high yield, simple
structure,easy maintenance,fully enclosed structure,no dust,automatic nesting,
more suitable for pipeline operations.
Working Principle
Large capacity fine sieving linear vibrating screen machine use vibration motor
as vibration source,the materials is rosed and moved in the straight at the same
time.The materials are entered into entrance equality,and then go through screen
to create the material with different sizes,which was discharged,from different
gates.It is suitable for low consuming,high output,and simple structure,easily
maintain all-closed structure,no powder dispersed,automobile discharged.
Technical Parameters
| Model | Screen Size(mm) | Layers | Capacity(t/h) |
RPM (r/min) |
Power(kw) | Vibrating direction angle |
| DZSF520 | 500*2000 | 1-5 | 0.03-5 | 960 | 2*(0.37-0.75) | 45-60 |
| DZSF525 | 500*2500 | 0.06-15 | 2*(0.37-0.75) | |||
| DZSF530 | 500*3000 | 0.06-18 | 2*(0.37-0.75) | |||
| DZSF1020 | 1000*2000 | 0.07-20 | 2*(0.37-1.1) | |||
| DZSF1025 | 1000*2500 | 0.07-15 | 2*(0.37-1.1) | |||
| DZSF1030 | 1000*3000 | 0.1-20 | 2*(0.37-1.1) | |||
| DZSF1224 | 1200*2400 | 0.1-23 | 2*(0.37-1.5) |

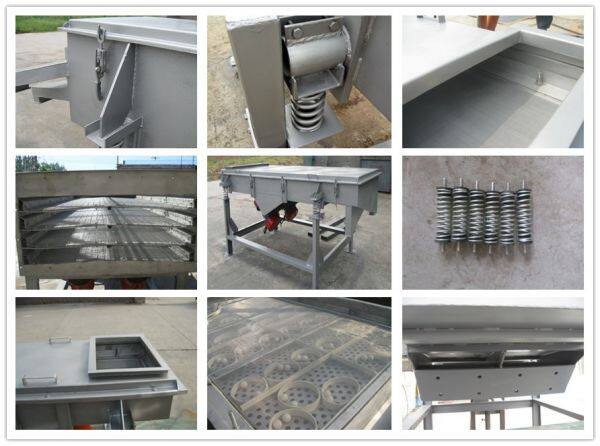

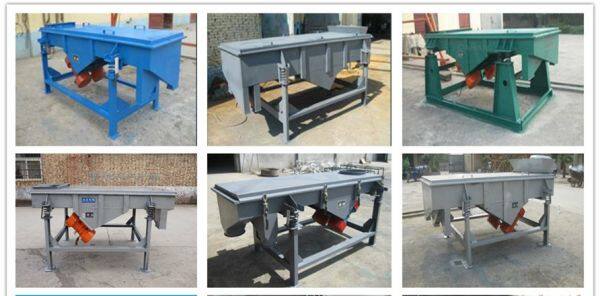

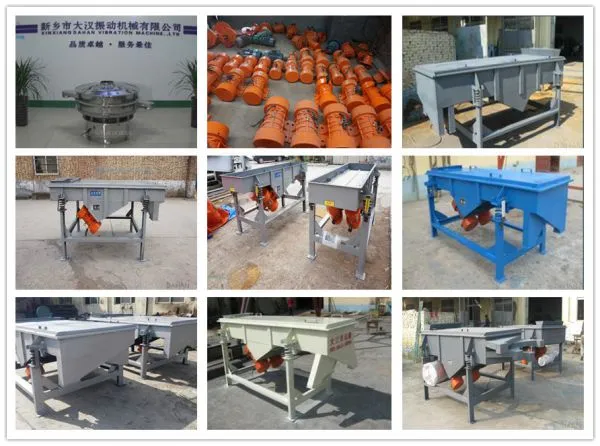

Product details
Application
Linear vibrating screen is the efficient new screening equipment widely used in
mining,coal,metallurgy,building materials,refractory materials,light industry,
chemical industry.

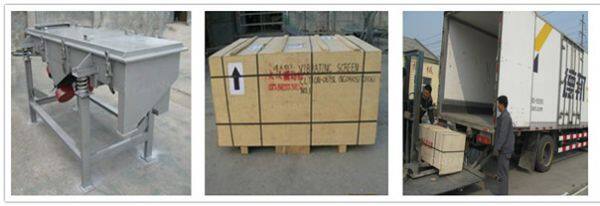

Packing&Delivery

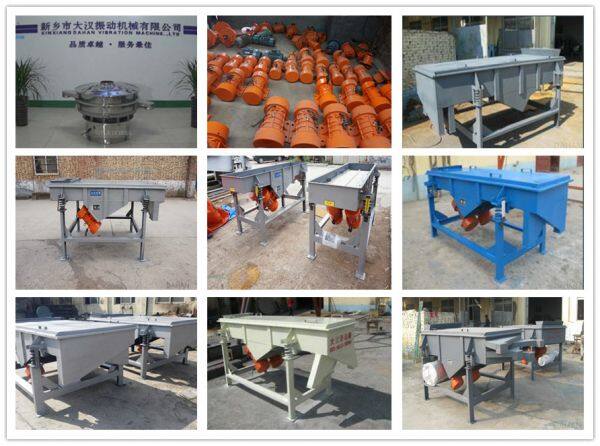

Our Company
The Xinxiang Dahan vibrating machinery co.,Ltd.
The Xinxiang Dahan vibrating machinery co.,Ltd. is specialized in the vibrating screen equipment,vibration machinery series products manufacturer,from the design and
production to sales provide a complete assembly line service,committed to solve
all kinds of sieving problem,after years of development process of the introduction
of foreign advanced technology to improve the original screen,and upgrades,for
customer screening requirements in terms ally developed into a professional
manufacturing enterprise in the industry of xinxiang vibrating screen.
Our Service
1)We provide 12months quality warranty to make sure your machine well runs
consistently.
2)Professional engineer design the production line for you.
3)Recommend suitable equipment according to your special demand.
4)Common problem can be solved through web in 24 hours,complex problem
can be reacted immediately in 24 hours and solved as soon as possible
Certifications
FAQ
Q:What is the real delivery time of your factory?
A: 10 to 15 days for general series products, meanwhile, customized products
would need 20 days to 40 days based on different situations.
Q: How do you ensure the quality of your products?
A: Generally, our equipments are the most durable type in the industry, this is also
the feature of the label impression of DH for most of our customers at home or
abroad.However, we do recognized that there do have small amount of the
product which may got faulty or damaged for different reasons.
Q: How do your after-sale service work if the product got damaged?
A: In the gurantee time 12 months, our general aftersale serve.
