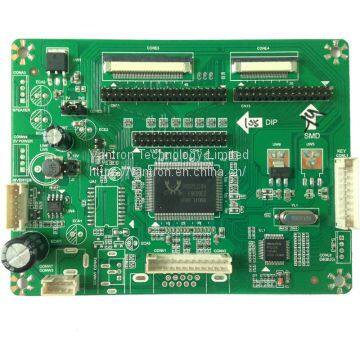

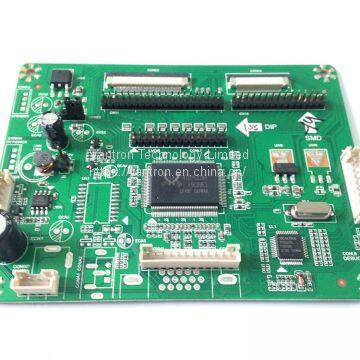

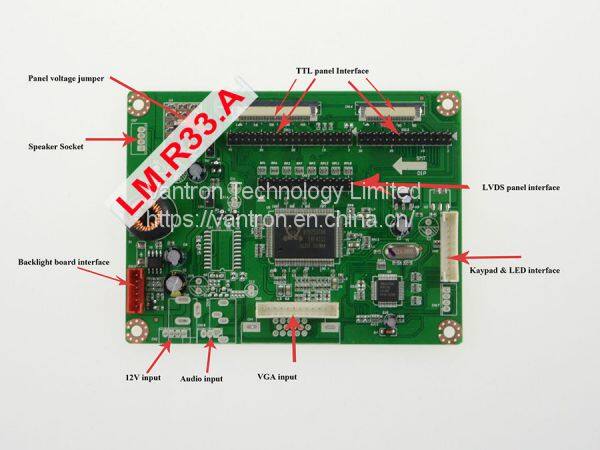

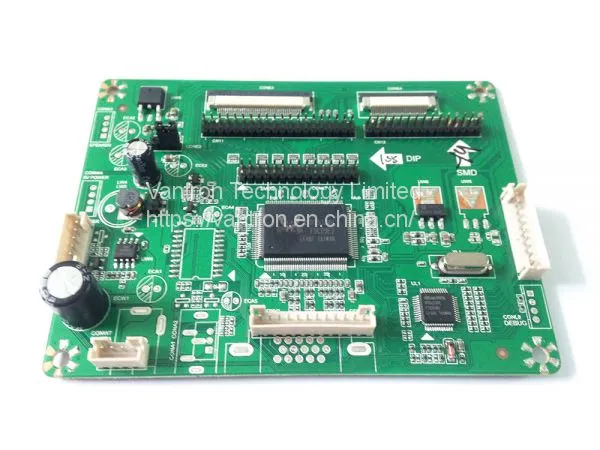

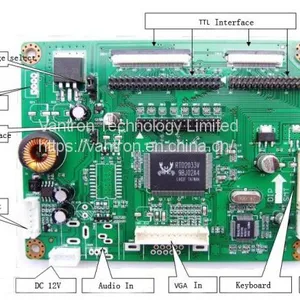

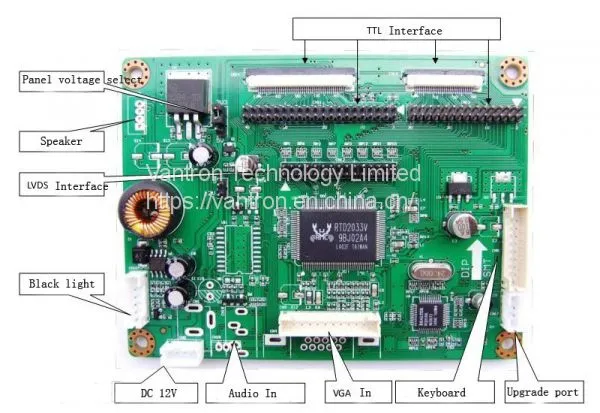

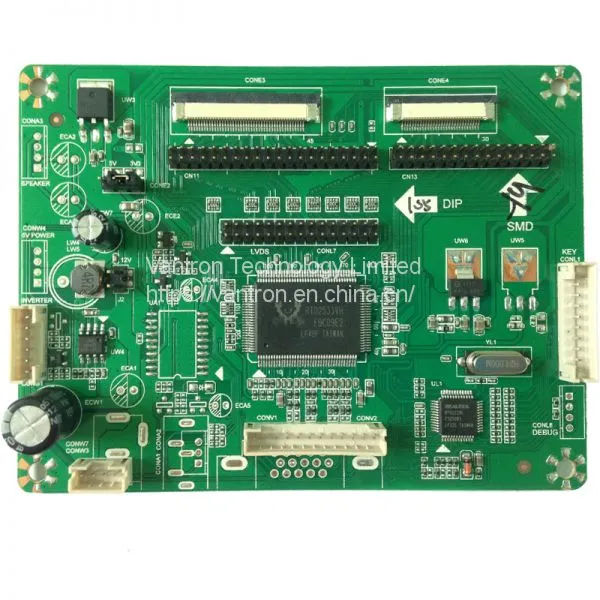

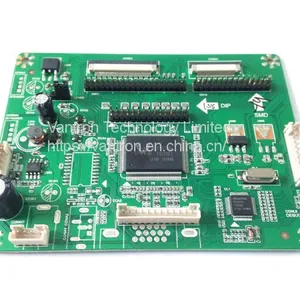

LM.R33.A LCD Display Controller Board with VGA Connector

1. Support Resolutions:

VGA:640*480        SVGA:800*600

XGA:1024*768       SXGA+:1680*1050

2. Interface:

RGB input: 60Hz AT VGA SVGA XGA WXGA+ SXGA+

72Hz AT VGA SVGA

75Hz AT VGA SVGA XGA

AUDIO output: acoustic power 2*1W/8Ω

3. Panel Voltage:3.3V/5V/12V(option)

4. Panel interface:Single/Double LVDS， TTL 45PIN+30PIN FFC  30PIN+40PIN

5. Voltage requirement:DC/12V

6. Working environment:Relative humidity<80%,0-40℃

stand-by power consumption:<1W

7. ODS Language: Simplified Chinese Traditional Chinese, Korean, French , Italian, Spanish and Portuguese
