Square Air Conditioning Ventilation Diffuser Parts

Ventech,China
Square Air Conditioning Ventilation Diffuser Parts thumbnail-1
Square Air Conditioning Ventilation Diffuser Parts thumbnail-2
Square Air Conditioning Ventilation Diffuser Parts thumbnail-3
Square Air Conditioning Ventilation Diffuser Parts thumbnail-4
Square Air Conditioning Ventilation Diffuser Parts thumbnail-5
Square Air Conditioning Ventilation Diffuser Parts photo-1

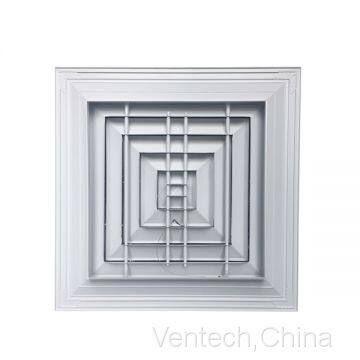

Square Air Conditioning Ventilation Diffuser Parts photo-2

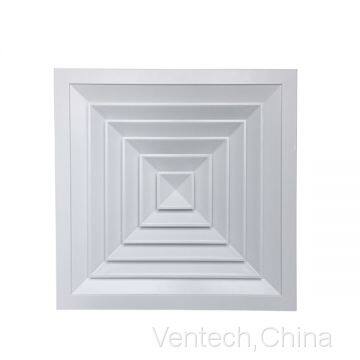

Square Air Conditioning Ventilation Diffuser Parts photo-3

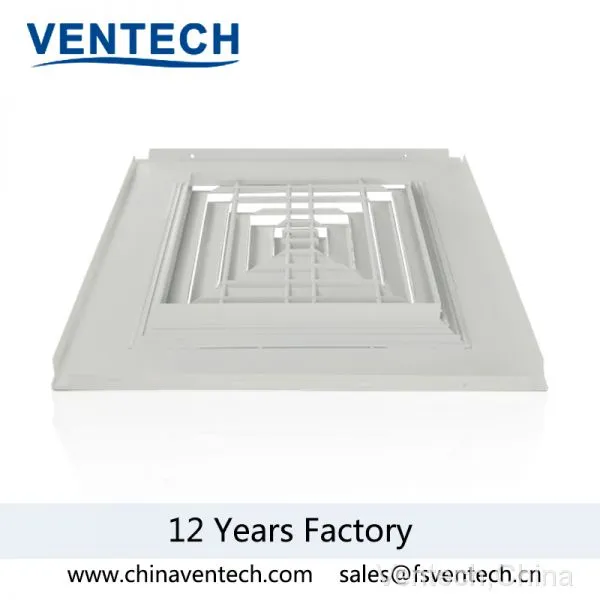

Square Air Conditioning Ventilation Diffuser Parts photo-4
Square Air Conditioning Ventilation Diffuser Parts photo-5
US$ 3 - 10 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Ventech
Place of Origin:
China
Model Number:
SCD-VA
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Ventech
Place of Origin China
Model Number SCD-VA
Type HVAC Systems

square air conditioning ventilation diffuser parts

ventech air diffuser

1.Feature:

*The directions of discharge air can be selected to meet the requirements of rooms with 1 to 4 way

*Supply air can be oriented to vertically be blades of 1,2,3,4 directions

*They can be used both for supply and return applications

*Depengding an architectural demands the face can be square or recctangular

*They are siutable for using in rooms with heights up to 4 m

*Material:They can be made of extruded aluminum profiles,or aluminum sheet

*Accessories :Damper ,Plenum box

*Mount:by screws, by clips

*Finishing:White powder coating Ral9010,Ral9016,or customized color,Anodized

*Core is removable to allow for better installation and maintenance



- - 5_.jpg- - 6_.jpg- - 7_.jpg










3.AVAILABLE SIZES:
Unit Size is determined by duct dimensions. Diffuser necks are undersized to suit ductwork.


Selection Table:

Standard Size HxL(mm)Air Volume(m3/h)Throw Max.(m)
150*1501200.90
225*2252401.40
300*3004001.70
375*3756002.00
450*4508402.40
525*52511202.55
600*60014602.70

 Datas are chosen when the air velocity is 2.4m/s and the velocity at throw distance is 0.5m/s





4.Types:
