Product Details
| Brand Name | Ventech | Place of Origin | China | |
| Model Number | SCD-VC | Type | HVAC Systems |
Product Description

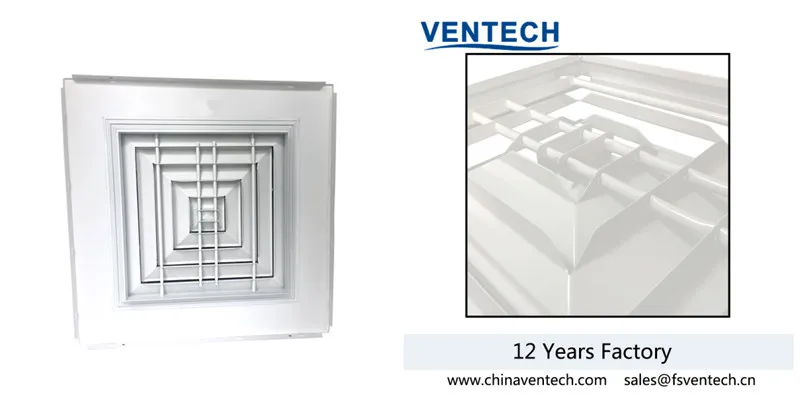

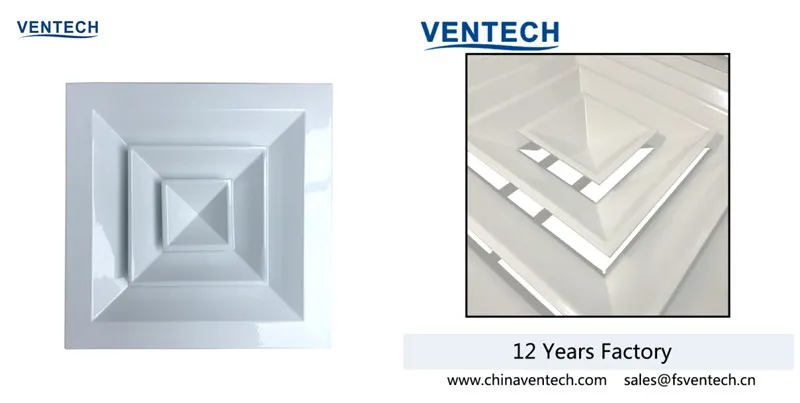

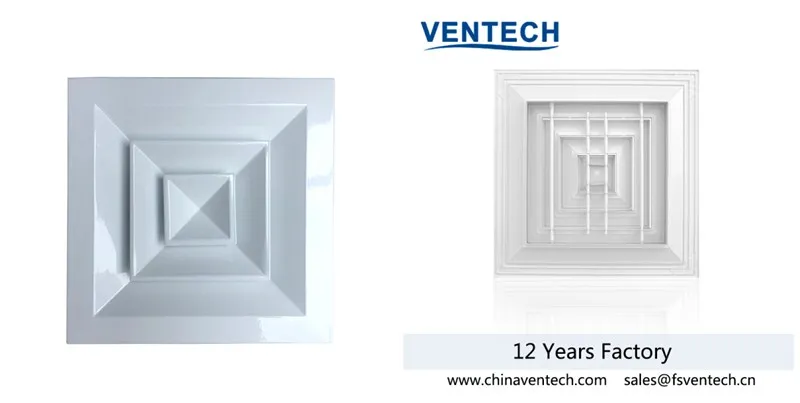

Supply Square Ceiling Diffuser Air Diffuser hvac ventilation
1.Feature:
*The directions of discharge air can be selected to meet the requirements of rooms with 1 to 4 way
*Supply air can be oriented to vertically be blades of 1,2,3,4 directions
*They can be used both for supply and return applications
*Depengding an architectural demands the face can be square or recctangular
*They are siutable for using in rooms with heights up to 4 m
*Material:They can be made of extruded aluminum profiles,or aluminum sheet
*Accessories :Damper ,Plenum box
*Mount:by screws, by clips
*Finishing:White powder coating Ral9010,Ral9016,or customized color,Anodized
*Core is removable to allow for better installation and maintenance

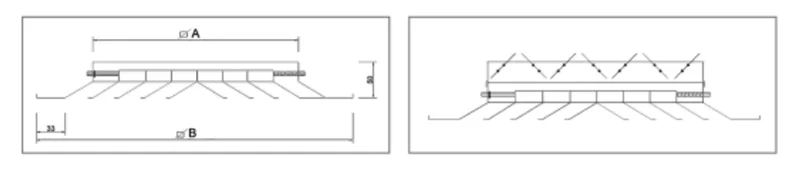

2.Structure:
3.AVAILABLE SIZES:
Unit Size is determined by duct dimensions. Diffuser necks are undersized to suit ductwork.
Selection Table:
| Standard Size HxL(mm) | Air Volume(m3/h) | Throw Max.(m) |
| 150*150 | 120 | 0.90 |
| 225*225 | 240 | 1.40 |
| 300*300 | 400 | 1.70 |
| 375*375 | 600 | 2.00 |
| 450*450 | 840 | 2.40 |
| 525*525 | 1120 | 2.55 |
| 600*600 | 1460 | 2.70 |
Datas are chosen when the air velocity is 2.4m/s and the velocity at throw distance is 0.5m/s

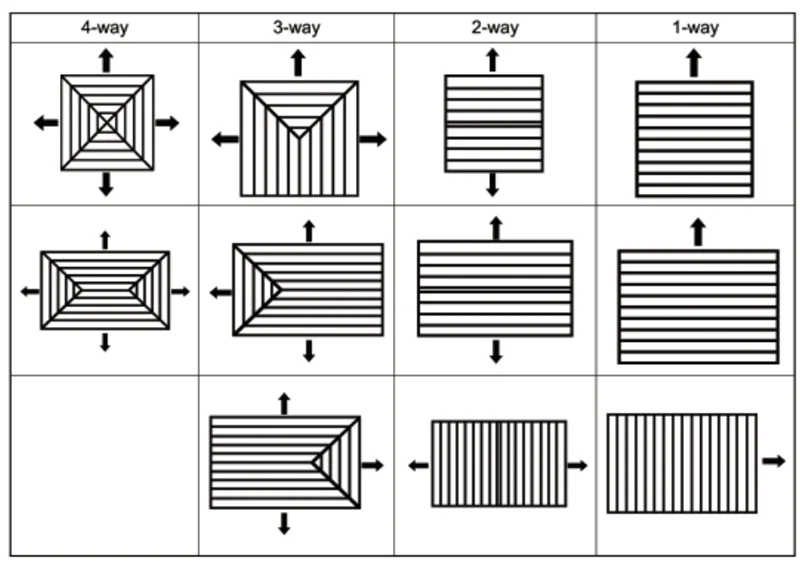

4.Types:
