Home > Electrical & Electronics > Electronic Tube & Transistor > Rectifier Diode > Factory Direct Sell RS1M Surface Mount Fast Recovery Rectifiers Diodes SMA Case
Factory Direct Sell RS1M Surface Mount Fast Recovery Rectifiers Diodes SMA Case
US$ 0.08 - 0.1
MOQ: 5000 Pieces
Key Specifications
Get Latest Price
Brand Name:
JUXING
Place of Origin:
China
Model Number:
RS1M
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
3 days
Related Products
-
Factory Direct Sell RS2MBF Ultrathin Surface Mount Fast Recovery Rectifiers Diodes SMBF CaseUS$ 0.06 - 0.10MOQ: 10000 Pieces -
Factory Direct Sell FR307 Fast Recovery Rectifiers Diodes DO-27 Case 3.0A 1000VUS$ 0.10 - 0.10MOQ: 900 Pieces
-
Factory Direct Sell FR107 Fast Recovery Rectifiers Diodes DO-41 Case 1A 1000VUS$ 0.05 - 0.10MOQ: 3000 Pieces
-
Factory Direct Sell FR307 Fast Recovery Rectifiers Diodes DO-27 Case 3.0A 1000VUS$ 0.10 - 0.10MOQ: 900 Pieces
-
Factory Direct Sell SR1100 Schottky Barrier Rectifiers Diodes DO-41 Case 1.0A 100VUS$ 0.08 - 0.10MOQ: 3000 Pieces

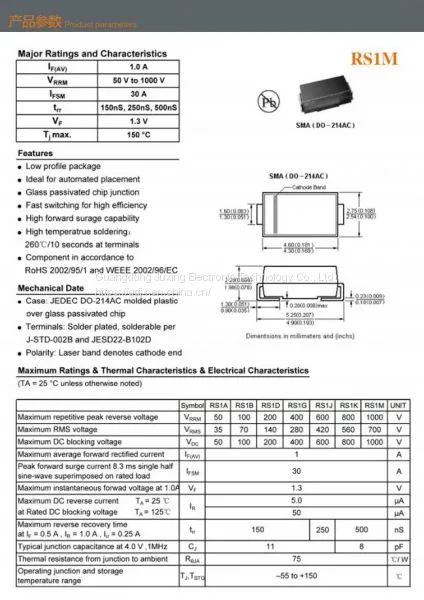

Brand Name
JUXING
Place of Origin
China
Model Number
RS1M
Type
Rectifier Diode
Max. Reverse Current
1.0A
Max. Forward Current
30A
Max. Reverse Voltage
1000V
Max. Forward Voltage
1.3V
Package Type
Surface Mount
RS1M is the Surface mount Fast recovery rectifiers diodes make by Juxing
50mil GPP chips SMA case
An important parameter of the fast recovery diode is the reverse recovery time TRR, which is defined as the time interval when the current flows through the zero points from forward to reverse, and then from reverse to the specified value Irr.
RS1M adopt international standard chip manufacturing, with stable and reliable performance.
Our company has passed the ISO9001 international quality standard system and ISO9001:2008 quality.
Management system, ISO14001 environmental management system certification. At the same time, products passed SGS and UL testing is in line with international environmental protection RoHS directive.
