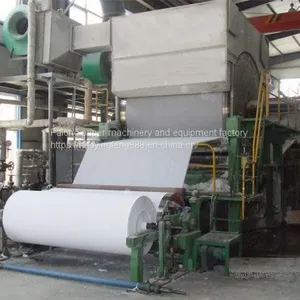

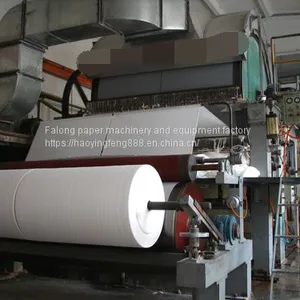

Help Center787-1092-2880 Type High Speed Toliet/ Tissue Paper Making Machine
Related Products
-
Type 1575 Living Paper Toilet Roll Paper Machine, Toilet Papermaking MachineUS$ 58000 - 98000MOQ: 1 Set -
Papermaking Machinery, With Low Investment and High Return Rate, 787 and 1092 and 1575 Type Toilet Paper Machines.US$ 23000 - 98000MOQ: 1 Set
-
Tissue Paper Napkin Making Machine，1880mm High Speed Toilet Paper MachineUS$ 50000 - 150000MOQ: 1 Set
-
Tissue Paper Napkin Making Machine，1092type and 1880type Toilet Paper Making MachineUS$ 50000 - 150000MOQ: 1 Set
-
Toilet Roll Paper Machine，3 Tons per Day Model 1575 Toilet Paper MachineUS$ 50000 - 150000MOQ: 1 Set
787-1092-1575-1880-1760-2400-2880 Type Series High-speed Tissue Paper Making Machine
|
tpye ltem |
1092 |
1575 |
1760 |
1880 |
2400 |
2800 |
Designing speed (m/min) |
30-90 |
60-220 |
90-220 |
90-220 |
220 |
220 |
Working speed (m/min) |
30-80 |
50-120 |
80-180 |
90-180 |
130-180 |
130-180 |
Output weight (g/m2) |
13-30 |
13-30 |
13-30 |
13-30 |
13-30 |
13-30 |
Productive capacity(t/d) |
2-3 |
3-5 |
4-6 |
5-7 |
6-8 |
7-10 |
Diameter of drye(mm) |
Φ2500×1450 |
Φ2500×2000 |
Φ2500×2100 |
Φ2500×2400 |
Φ2500×2800 |
Φ2500×3100 |
Power of main motor (kw) |
30 |
37 |
37 |
45 |
55 |
55 |
Rail gauge(mm) |
1900 |
2400 |
2600 |
2800 |
3400 |
3700 |
Small toilet paper machine 787, toilet paper machine price
787 type toilet paper machine
Equipment technical parameters:
Product categories: production of packaging paper, corrugated paper, toilet paper, superstition burning paper, napkins, cultural paper, etc.
Raw materials: raw pulp, waste paper, bamboo, straw, cotton poles, etc.
Equipment output: 1-1.5T/ days
Production ration: 13 grams ----50 grams
Equipment speed: 40----90 M / min
Equipped with boiler: 0.5T high pressure boiler
1. Pulp making equipment:
Serial number name
Power remark for (stage)

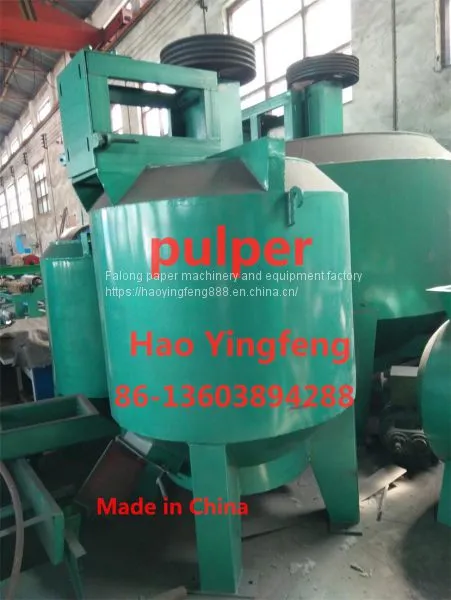

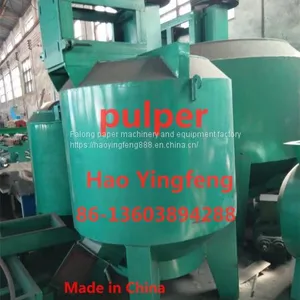

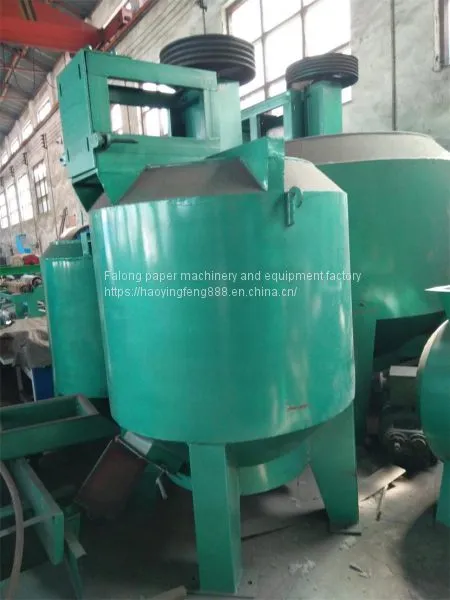

1 1m3 hydraulic pulper
20.5 square vibrating screen
3 vertical mixer 1
4250 type refiner
5 rinsing machine

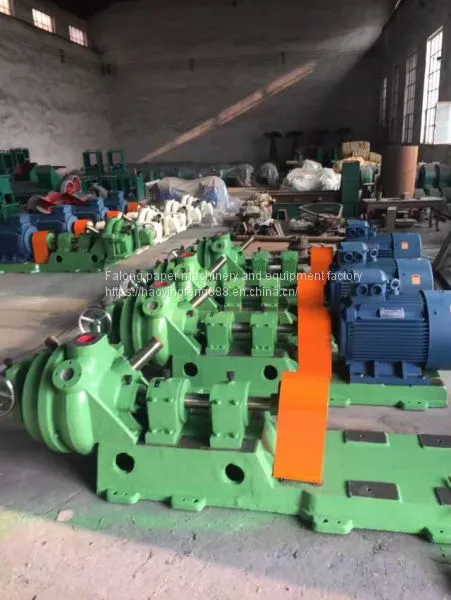

6 3 inch slurry pump
Type 733 vacuum pump
The main components of type two and 787 single cylinder single paper machines are as follows:

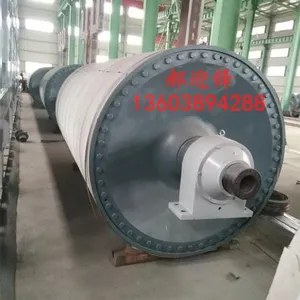

1, dryer: 1000 x 1100mm 1, bearing type.

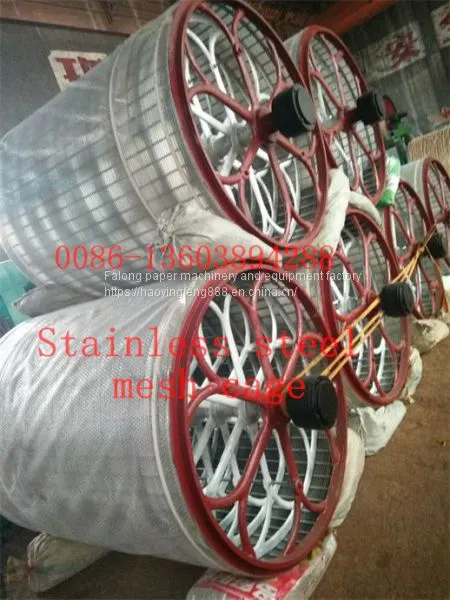

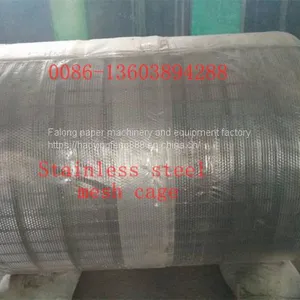

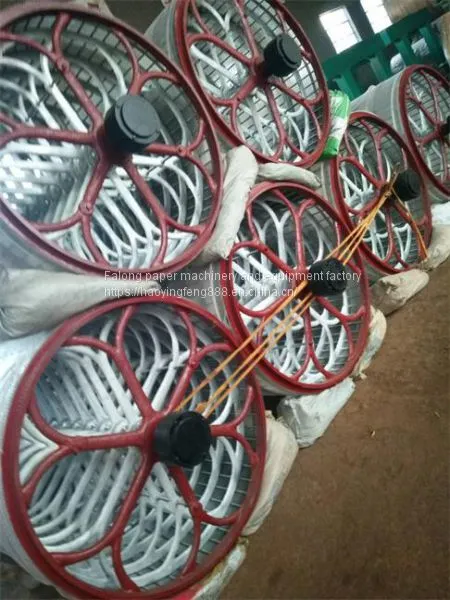

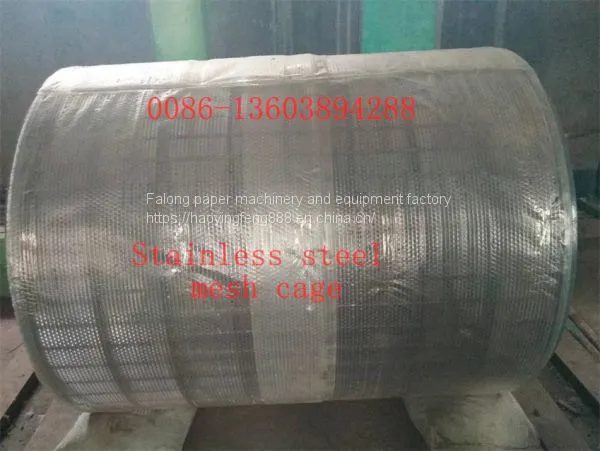

2, net cage: 700 x1100mm
3, couch roll: 1.
4, idler: 1.
5. Water squeezing device: 1 sets.
6, cloth guide roller: 7.
7, tight blanket: 1 sets, 1 sets of carpet.
8, mechanical scraper: 1.
9, rack runway: 1 sets.
(with 4 kW electromagnetic speed regulating motor)
Three. Complete the equipment:

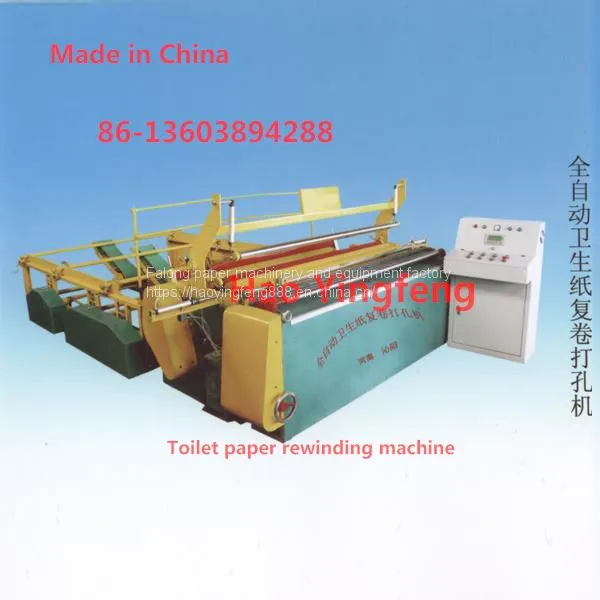

1, toilet paper rewinder: 1 sets with 3KW motor.
2, toilet paper cutter 1 with 3KW motor.
3, split machine
Four. Production process flow chart:
Raw material (raw pulp, waste paper) - - - --> High Consistency Water pulping machine - - - - > bleaching machine - - - - - - propeller - - - - - - - > vibrating screen - - - - - - - > pulping machine - - - - - - - > desander - - - - > mixer - - - - - - - > pulping pump - - - - - - - - - - - - - - - - - - > toilet paper main machine - - - - - - - - - - - - - - - - - - paper cutting machine - - - - - - - - - - > Packaging - - - - - - - - - - > sales
Sales Manager: Hao Ying Feng 0086-13603894288
