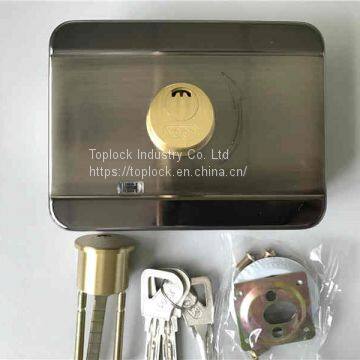

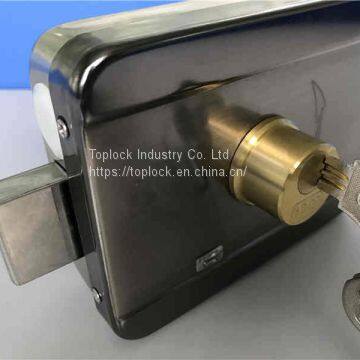

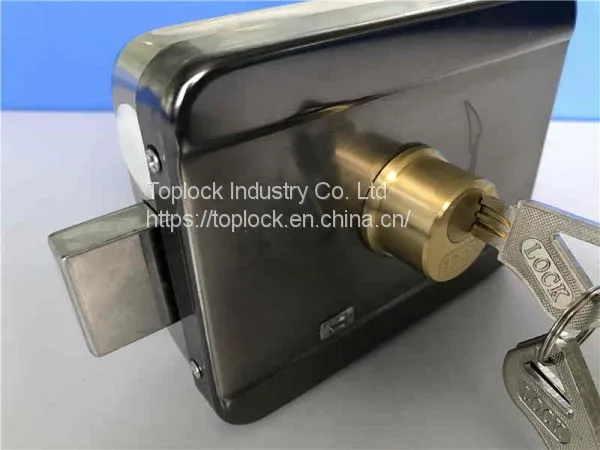

Intelligent Electronic Lock Safe with Double-end Brass Cylinder and Button

Product Detail

Lock Dimensions: 131.5L*99.5W*42.5H(mm)

Material/Surface: High Strengthen steel, Nickel plated

Working Voltage: 12VDC

Quiescent Current: 15mA

Operating Current: ≤350mA

Temperture: -20℃~ +50℃

Lock Tongue Length: >20mm

Fail Safe: Locked when energized

Passed Durability: Over 500,000

Scope of Application: Widely used in intelligent community, factory, warehouse, base station, and building intercom

Certification: CE, Rohs, FCC

Remark: Push button, remote control, feedback could be optional.

Advantage:

1. Stepping motor used, more stable, more accurate and longer life.

2. The length of the lock tongue＞20mm，meet GA/T73-94 5.1.6B standard

3. Can be compatible with building system of entrance guard system, etc

4. Automatically detects the door status, automatic processing to open close the door

5. Long life (more than 500,000), on / off, high sensitivity about ON/OFF, low power consumption

6. Warranty service will be honored if the damage is not caused by human, Top-Lock provide 1 year warranty for relative products.
