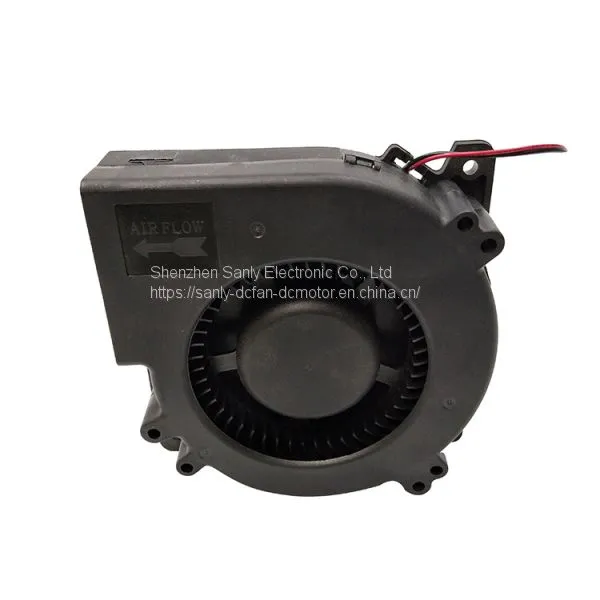

12032 120*120*32mm dc Centrifugal Blower Fan 12v Electric Blower

12032 120*120*32mm dc Centrifugal Blower Fan 12v Electric Blower thumbnail-1
12032 120*120*32mm dc Centrifugal Blower Fan 12v Electric Blower thumbnail-2
12032 120*120*32mm dc Centrifugal Blower Fan 12v Electric Blower thumbnail-3
12032 120*120*32mm dc Centrifugal Blower Fan 12v Electric Blower thumbnail-4
12032 120*120*32mm dc Centrifugal Blower Fan 12v Electric Blower thumbnail-5
12032 120*120*32mm dc Centrifugal Blower Fan 12v Electric Blower photo-1
12032 120*120*32mm dc Centrifugal Blower Fan 12v Electric Blower photo-2
12032 120*120*32mm dc Centrifugal Blower Fan 12v Electric Blower photo-3
12032 120*120*32mm dc Centrifugal Blower Fan 12v Electric Blower photo-4
12032 120*120*32mm dc Centrifugal Blower Fan 12v Electric Blower photo-5
US$ 12.29 - 29.98 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
SANLY
Place of Origin:
China
Model Number:
SF12032S/BL
Contact Supplier Request Quote Chat Now
Shenzhen Sanly Electronic Co., Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen, Guangzhou
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name SANLY
Place of Origin China
Model Number SF12032S/BL
Certification CE, ROHS
After-sales Service Provided Engineers available to service machinery overseas
Voltage 12VDC
Power 4.8W
Speed 2000RPM
Air Volume 22.46CFM
Blade Material Plastic
Mounting Wall Fan
Electric Current Type DC

12032 120*120*32mm dc Centrifugal Blower Fan 12v electric blower


Specifications

Series

12032

Weight

195g

Bearing

Sleeve/Ball bearing

Power Cord

22AWG2468

Insulation Grade

Class B

Protection Grade

IP44/IP45

Operating Temperature

-10℃ ~ 60℃

Life Expectancy

15000-50000h

Rated
Voltage

Operating Voltage Range

Rated Current

Rated input power

Speed

Maximum

Maximum

Noise

Model

Function

VDC

VDC

Amp

Watt

R.P.M

m3/min

CFM

mmH2O

INH2O

dB-A

SF12032S/BL

FG/PWM/RD

12

6to13.5

0.40

4.80

2000

0.57

22.46

16.32

0.72

46.0

SF12032S/BM

FG/PWM/RD

12

6to13.5

0.65

7.80

2500

0.71

25.11

20.40

0.80

51.0

SF12032S/BH

FG/PWM/RD

12

6to13.5

1.20

14.40

3000

0.85

27.50

24.48

0.88

56.0

SF12032S/BL

FG/PWM/RD

24

15to25.5

0.25

6.00

2000

0.57

22.46

16.32

0.72

46.0

SF12032S/BM

FG/PWM/RD

24

15to25.5

0.40

9.60

2500

0.71

25.11

20.40

0.80

51.0

SF12032S/BH

FG/PWM/RD

24

15to25.5

0.65

15.60

3000

0.85

27.50

24.48

0.88

56.0


Dimension Drawing

Tips: We supply Kinds of Fans, if you need other items, please leave me a message of the sizes, colors and connectors!
