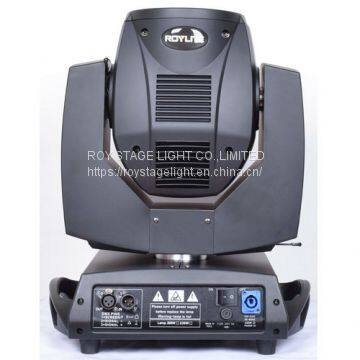

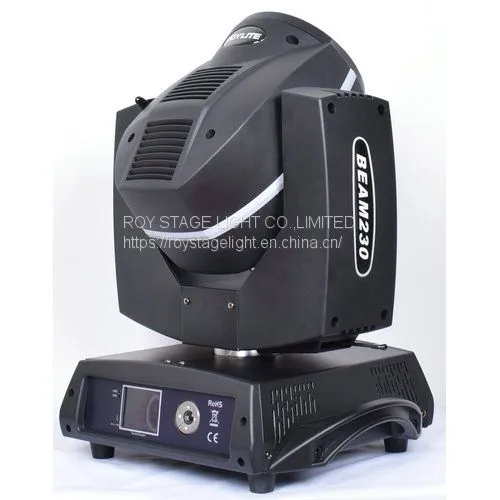

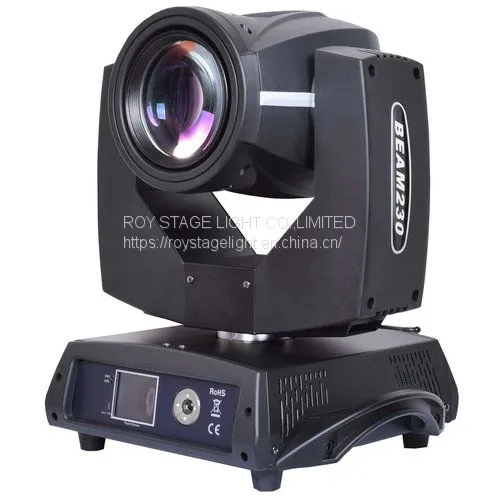

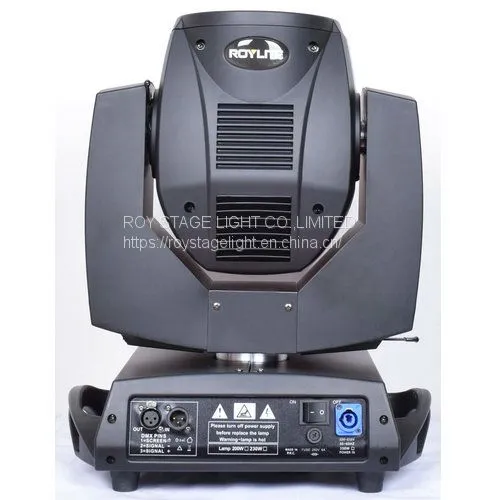

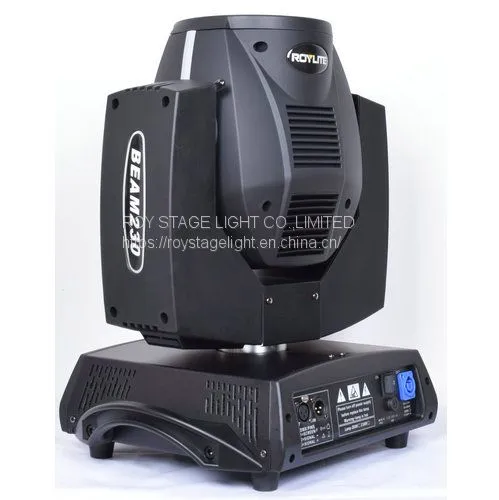

7R Beam 230w Moving Head
Model : R-MB230
Brand : ROYLITE
Lamp : MSD 230w bulb
Beam angle : 4°
Product description：This is a super hot seller, with high quality 14 color filters,it color the strong beam vividly. the high quality MSD R7 230w bulb gives high power strong beam light,beam angle 4°，17 fixed gobos and 8
LAMP SOURCE
Lamp type: MSD 7R 230w bulb,lifetime 2200 hours ( 5R lamp optional )
Reflector: Lamp and reflector together in one unit
Color temp: 8000K
Beam angle: 4°
Lens: Glass optical 3 lens group
COLOR SYSTEM
1 Fixed color wheel with14 color filters + white
two-way rotating and rainbow effect
GOBO SYSTEM
1 Gobo wheel with 17 gobos+white
EFFECT EQUIPMENT
1 rotating 8-facet prism with moving effect, 1 frost effect, dimming and strobe function, 0-100% linear dimmer, strobe speed 1-13/sec
MOVING PARAMETER
Angle: PAN=540°, TILT=270° 16 bit precision scan
3 Phases motor, fast movement.
PAN and TILT adopt electro-optic reset system, automatically reset the pan and tilt movement caused by accident.
CONTROL AND PROGRAMMING
Control channel: 16CH (standard) / 20CH (extended)
Protocol: Standard DMX512 protocol;
Display: LCD screen
Resolution control: Pan, Tilt, Gobo
DMX signal connection: 3 or 5-pin XLR input / output
ELECTRONIC CONTROL TECHNOLOGY
Fixture reset is controlled through menu or light console
On / Off lamp through remote control
Intelligent fan control
Electronic sensor detection
DMX channel level monitoring
Motor zero 16bit regulation and control
POWER SUPPLY
AC100-240V 50/60Hz
Electronic ballast
Input power: 335w
PHYSICAL
Product Dimension: 410mm × 331mm ×497mm
Package: 83cm × 46cm × 70cm (flight case)
45cm × 42cm × 55cm (carton)
Net Weight: 18kg
Gross Weight: 66 kg (flight case)
Gross Weight: 22.5 kg (carton)
PACKAGE
flight case 2 in 1
carton 1 in 1
