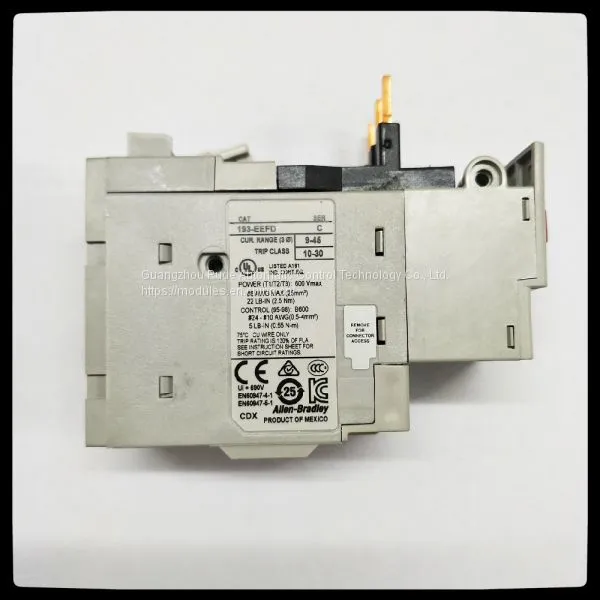

193-EC1DD E3 9-45 A Overload Relay

 E3 Plus Electronic Overload Relays

Bulletin 193 IEC and 592 NEMA E3 and E3 Plus Electronic Overload

 Relays are optimal world-class products with a broad range of features in one complete,

compact package. These multi-function, solid-state, microprocessor-based relays are designed to protect

single- or three-phase squirrel cage induction motors. Our relays help you manage and monitor

 motor performance to prevent and minimize production downtime.

193-EC1AB  E3 1-5 A Overload Relay

193-EC1AD  E3 1-5 A Overload Relay

193-EC1BB  E3 3-15 A Overload Relay

193-EC1BD  E3 3-15 A Overload Relay

193-EC1CB  E3 5-25 A Overload Relay

193-EC1CD  E3 5-25 A Overload Relay

193-EC1DD  E3 9-45 A Overload Relay

193-EC1DE  E3 9-45 A Overload Relay

193-EC1EE   E3 18-90 A Overload Relay

193-EC1FF  E3 28-140 A Overload Relay

193-EC1GF  E3 42-210 A Overload Relay

193-EC1GG E3 42-210 A Overload Relay

193-EC1HG E3 60-302 A Overload Relay

193-EC1JG  E3 84-420 A Overload Relay

193-EC1KH  E3 125-630 A Overload Relay

193-EC1LH  E3 172-860 A Overload Relay

193-EC1PB  E3 0.4-2.0 A Overload Relay

193-EC1ZZ  E3 9-5000 A Overload Relay

193-EC2AB  E3 Plus 1-5 A Overload Relay

193-EC2AD  E3 Plus 1-5 A Overload Relay

193-EC2BB   E3 Plus 3-15 A Overload Relay

193-EC2BD  E3 Plus 3-15 A OL

193-EC2CB  E3 Plus 5-25 A Overload Relay

193-EC2CD  E3 Plus 5-25 A Overload Relay

193-EC2DD E3 Plus 9-45 A Overload Relay

Features

1.0.4…90 A current range

2.DeviceNet Ready (ODVA Conformance tested)

3.LED indicators and Test/Reset button

4.Adjustable trip class 5…30

5.Ambient temperature compensation

6.True RMS current sensing (20…250 Hz)

7.Protection for single- and three-phase motors

8.Integrated I/O (2 in/1 out)

9.Programmable trip and warning settings

10.Diagnostic functions (history of last 5 trips)
