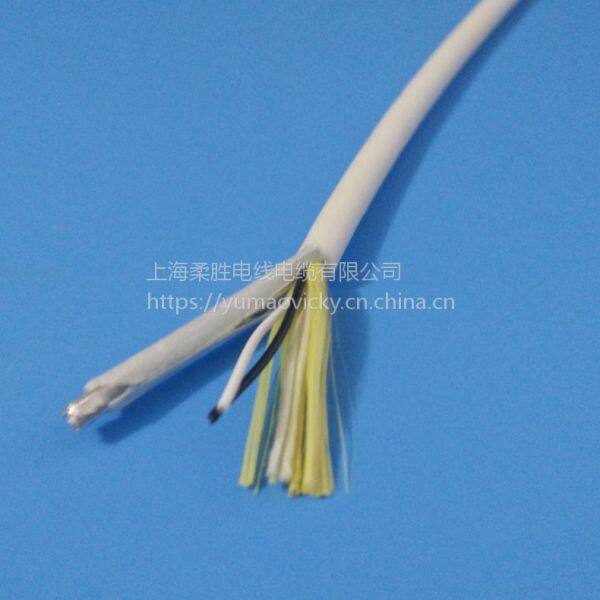

Umbilical Power Cable
You May Like
Product Description
Mechanical:
Braided kevlar strength member (1000 Ibs)
Standard length 500 meters
Sheath material: PVC
Diameter: 0.55” (customization available)
500Ibs(22.7kg) per 500 feet
Options:
Cable assembly for all cameras and lights
Cable assembly for ROV
ROV Tether/ROV Umbilical/ Underwater Floating Cable
ROV Tethers include power conductors, shielded data
pairs and video using coax, TSP, or fi ber optics. Designs available
in several confi gurations, including Neutral Buoyancy.
A varied degree of strength designs available depending on
workloads and handling system. The sample cables listed below
are proven working designs for vehicles used worldwide.
Features:
Floating Cable relies on foam core extrusion capabilities to achieve precise cable buoyancy requirements. It has good bendability, and abrasion-resistant and may be fitted with choice of jackets to achieve resistance to various chemicals including acids, salt water, oil, and gasoline. Cable is suited for powering and controlling robotic cleaning systems in swimming pools and aquarium facilities as well as marine applications and submersible environmental pumping systems
Conductors:
Stranded tin copper conductors for fl exibility and corrosion resistance.
Light weight, low dielectric copolymer insulation with great mechanical and
moisture resistance.
Strength Layer:
Light weight Aramid fi bers are designed into each cable construction to meet
specific ROV intended use for maximum strength and longevity.
Jackets:
Jacket Materials are chosen for optimal bonding, moisture and mechanical
resistance. Each ROV cable is uniquely designed for specifi c ROV types using
PE, TPE, PUR, and foam variations for fl otation.
