Basic Information
Name | High Quality Thick Wall ERW Steel Sonic Tube Sounding Pipe |
Shape | Round |
Outer Diameter | 50-60mm |
Wall Thickness | 1.0-3.5mm |
Standard | API 5L, ASTM A53M-2007, BS 1387, DIN 2391, GB/T 9711.1-1997, JIS G3445-2006 |
Steel Grade | Q195, Q215, Q235, Q345, ST35, St52 |
Surface | Bared, Galvanized, Oiled, Color Paint, 3 PE or other Anti-corrosive Treatment |
Inspection | With Chemical Composition and Mechanical Properties Analysis; Dimensional and Visual Inspection, Also with Nondestructive Inspection |
Usage | Used in the sonic testing application |
Main Market | Middle East, Africa, Asia and South American |

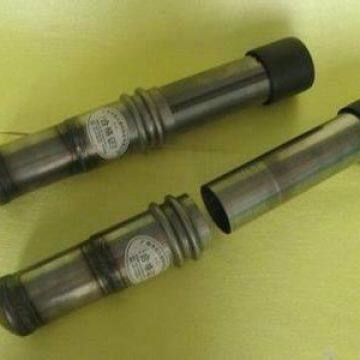

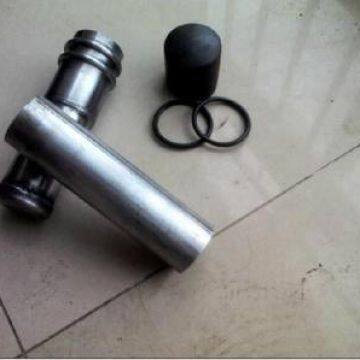

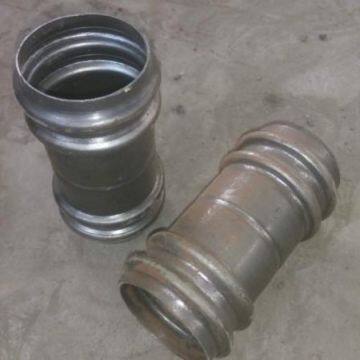

Position splice
• No wastage - standard lengths
• No Electricity/Welding/Threading
• Push-fit assembly
• Fast & Light handling by workers

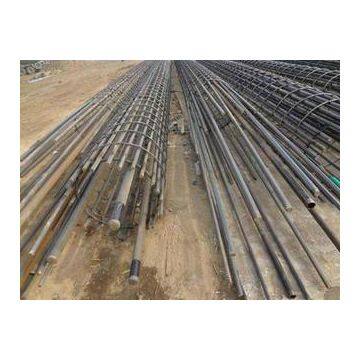

• Easy fixing to rebar cage
• No weather limitations
• Patented & designed for sonic testing
• 100% tested in factory
• Easy visual inspection on site
• Optional mechanical crimping
| Size/OD(mm | WT(mm) | Tensile strength(Mpa) | Elongation | Internal pressure(Mpa) | External ressure(Mpa) |
| 50 | 1--3.5 | ≥315Mpa | ≥14% | ≥1Mpa | ≥4Mpa |
| 54 | 1--3.5 | ≥315Mpa | ≥14% | ≥1Mpa | ≥4Mpa |
| 57 | 1--3.5 | ≥315Mpa | ≥14% | ≥1Mpa | ≥4Mpa |
