Help CenterZgs-Zg Pad-Mounted Transformer for Solar Project
Related Products
-
Sc (B) 10 Series Resin-Insulated Dry Type TransformerUS$ 500 - 1000MOQ: 1 Set -
Sg (B) 10 Series Non-Encapsulated H-Class Dry-Type Power TransformersUS$ 500 - 1000MOQ: 1 Set
-
S11 Series 6kv-35kv Power Transformer With off Circuit Tap ChangerUS$ 500 - 1000MOQ: 1 Set
-
S (B) H15-M Series Sealed Amorphous Alloy Power TransformerUS$ 500 - 1000MOQ: 1 Set
-
S13 Series of Three-Phase Oil Immersed TransformersUS$ 500 - 1000MOQ: 1 Set
Company Introduction:
Dehler Technology Co., Ltd. specializes in producing high and low voltage switchgear, box type substation, cable branch box, outdoor vacuum circuit breaker, isolation switch, grounding switch, load switch and low voltage components and other products.
Product Introduction:
ZGS-ZG modular transformer is designed to meet the growing demands for photovoltaic power supply. This product is designed on the basis of 35kV Pad-mounted transformer. The transformer, the load switch and the high voltage fuse are installed in the transformer enclosure, and the transformer insulation oil is used as the insulation and cooling medium of the entire product. The product has a small size, a light weight, and it is easy to install.

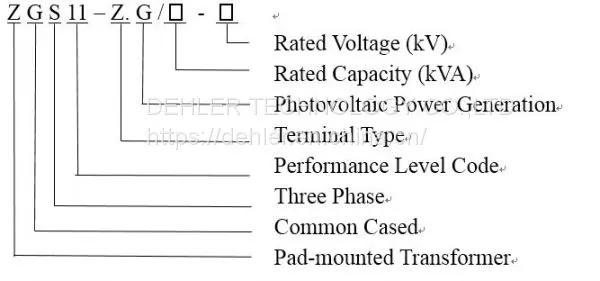

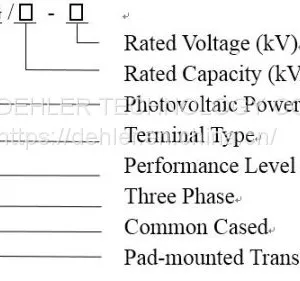

Model and Meaning
Features
1.The transformer body and the oil tank are closely connected with a fixed device. All the high voltage and low voltage line are soft-connected. The connection between tap wire and on-load tap-changer is cold-welded and fastened with bolts. All connections (including connections between coil and backup fuse, plug-in fuse, load switch, etc) are cold welded. The fastening part is equipped with self-locking anti-loose device to keep the transformer withstanding vibrations and bumps during the long-distance transportation. After delivering to the installation site, there is no need to do the conventional hanging core inspection.
2.The transformer has a whole-sealed structure, and there is no oil conservator.
3.The enclosure is specially treated to make it has a good anti-corrosion ability, and also gives it good performances in preventing wind erosion and salty fog.
Parameters
| Rated Capacity(kVA) | Voltage(kV) | Vector Group | Impedance Voltage(%) | No-load Loss (W) | Load Loss (W) | Total Weight(t) | Reference Dimensions(mm)L*W*H |
| 630 | High Voltage H.V. 36.75,38.5 ±2×2.5% Low Voltage L.V. 0.27-0.27 |
Dyn11 | 6.5 | 810 | 7820 | 4 | 2450*2260*2150 |
| 800 | 980 | 9350 | 4.5 | 2450*2280*2150 | |||
| 900 | 1070 | 10450 | 4.8 | 2450*2300*2150 | |||
| 1000 | 1150 | 11500 | 5 | 2520*2340*2150 | |||
| 1250 | 1370 | 13850 | 5.1 | 2520*2380*2150 | |||
| 1600 | 1650 | 16600 | 6.5 | 2520*2380*2150 |
