Help CenterEPON GPON ONU Stick SFP Module With MAC Inside
Related Products

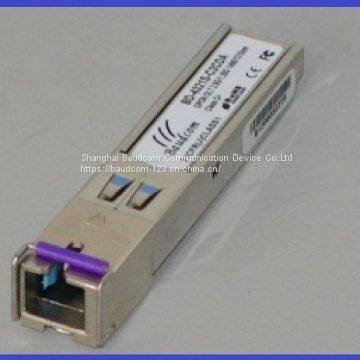

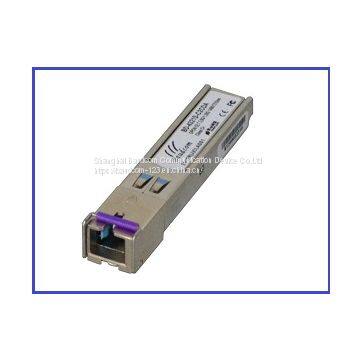

FEATURES
• Single fiber bi-directional data links asymmetric TX 1244Mbps/RX 2488Mbps GPON ONU application with GPON MAC function.
• SC/UPC receptacle SFP w ith GPON ONU MAC inside,“Plug-and-play” via auto-discovery and configuration
• 1310nm DFB burst mode transmitter, 1490nm APD-TIA continuous mode receiver
• 0 to 70°C operating case temperature for BD-1234-SPM, C-Temp
• -40 to 85°C operating case temperature for BD-1234-SPM, I-Temp
• Single 3.3V power supply
• Digital diagnostic monitor interface compatible with SFF-8472
• SFP MSA compliance
• Low EMI and excellent ESD protection
• Class I laser safety standard IEC-60825 compliant
• RoHS-6 compliance
APPLICATIONS
• Gigabit-capable Passive Optical Networks (GPON)
• BD-1234-SPM is an MSA-compliant SFP that incorporates not just the optics for an ONU, but all of the electronics need as well. It is a “PON on a Stick” that an entire FTTH ONU in a slightly oversized SFP. It can be plugged
into netw orking equipment. Allow ing the data interfaces on a sw itch, router, PBX, etc. to be customized for different fiber environments and distance requirements
• The BD-1234-SPM is designed as dual-mode ONU stick, it also supports the EPON ONU OAM. It
can be applied both on EPON system and on the GPON system .It w ill automatically establish an EPON link w ith the EPON OLT or GPON link w ith the GPON OLT.
STANDARDS
• Complies w ith SFP Multi-Source Agreement (MSA) SFF-8074i
• Complies w ith ITUT-T G.984.2, G.984.2 Amendment 1
• Complies w ith ITUT G.988 ONU management and control interface (OMCI) specification
• Complies w ith SFF 8472 V9.5
• Complies w ith FCC 47 CFR Part 15, Class B
• Complies w ith FDA 21 CFR 1040.10 and 1040.1
Tranmitter Optical Characteristics
Parameter |
Symbol |
Min |
Typical |
Max |
Unit |
Note |
Optical Center Wavelength |
λc |
1290 |
1310 |
1330 |
nm |
|
Spectral Width (-20dB) |
∆λ |
1 |
nm |
|||
Side Mode Suppression Ratio |
SMSR |
30 |
dB |
|||
Average Launch Optical Power |
AOP |
0.5 |
5 |
dBm |
Launched into SMF Fiber |
|
Burst off Average Output Power |
- |
-45 |
dBm |
|||
Extinction Ratio |
ER |
10 |
dB |
|||
Rise/Fall Time (20%-80%) |
TR/TF |
0.26 |
ns |
Unfiltered PRBS 223 - 1@1244.16 Mbps |
||
RIN15OMA |
-115 |
dB/Hz |
||||
Optical Return Loss Tolerance |
-15 |
dB |
||||
Transmitter Reflectance |
-10 |
dB |
Transmit on 20km SMF. |
|||
Transmitter and Dispersion Penalty |
TDP |
1 |
dB |
|||
Optical Waveform Diagram |
Compliant With ITU-T G984.2 |
PRBS 223 –1 @1244.16Mbps |
||||
Receiver Optical characteritics:
Parameter |
Symbol |
Min |
Typical |
Max |
Unit |
Note |
Operating Wavelength |
1480 |
1490 |
1500 |
um |
||
Sensitivity |
SEN |
-28 |
dBm |
PRBS 223 - 1 @2488Mbps |
||
Saturation Optical Power |
SAT |
-8 |
dBm |
|||
Loss of Signal De-Assert |
LOSD |
-29 |
dBm |
|||
Loss of Signal Assert |
0.5 |
dBm |
||||
Signal-Detected Hysteresis |
6 |
dB |
||||
Reveiver Reflectance |
-12 |
dB |
λ=1490nm |
|||
WDM Fitter Isolation |
38 |
dB |
λ=1550nm |
|||
35 |
dB |
λ=1650nm |
Question: Are the PON stick SFP module compatible with GPON and EPON system?
Answer: Yes, the SFP module is dual-mode stick ONU, can be compatible with GPON and EPON.
