Qatar Selling Poultry Farming Equipment Exhaust Fan & Ventilation System & Air Cooler/Air Heater in Poultry & Livestock Farm
US$ 280 - 300
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
POUL TECH
Place of Origin:
China
Model Number:
PT-CF
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
15 days
Related Products
-
Ghana Poultry Farm Deep Litter System & Broiler Floor Raising System With Automatic Nipple Drinker System & Feeding Pan System in Chicken ShedUS$ 120 - 150MOQ: 10 Sets -
Rwanda Poultry Farm Deep Litter System & Broiler Floor Raising System With Automatic Nipple Drinker System & Feeding Pan Line in Chicken ShedUS$ 120 - 150MOQ: 10 Sets
-
Sudan Chicken Shed Broiler Chicken Plastic Saltted Floor System With 5000 Chicks & Floor Raising System With Nipple Drinker System & Feeding Pan SystemUS$ 120 - 150MOQ: 10 Sets
-
Sudan Poultry Farm for 10,000 Broilers & Chicken Plastic Saltted Floor System & Broiler Floor System With Nipple Drinker System & Feeding Pan SystemUS$ 120 - 150MOQ: 10 Sets
-
South Africa Chicken House Broiler Plastic Saltted Floor System & Broiler Flooring Raise System With Nipple Drinker System & Feeding Pan LineUS$ 120 - 150MOQ: 10 Sets
Brand Name
POUL TECH
Place of Origin
China
Model Number
PT-CF
Certification
CE
After-sales Service Provided
No overseas service provided
Voltage
380 V
Power
1.1 KW
Speed
1440 R/MIN
Air Volume
43000 M/H
Blade Material
Stainless Steel
Mounting
Free Standing
Electric Current Type
AC

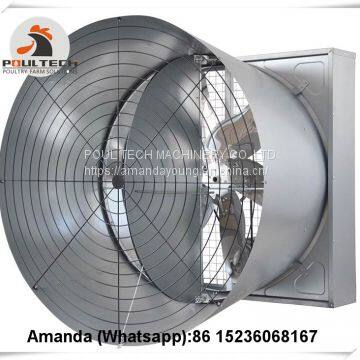

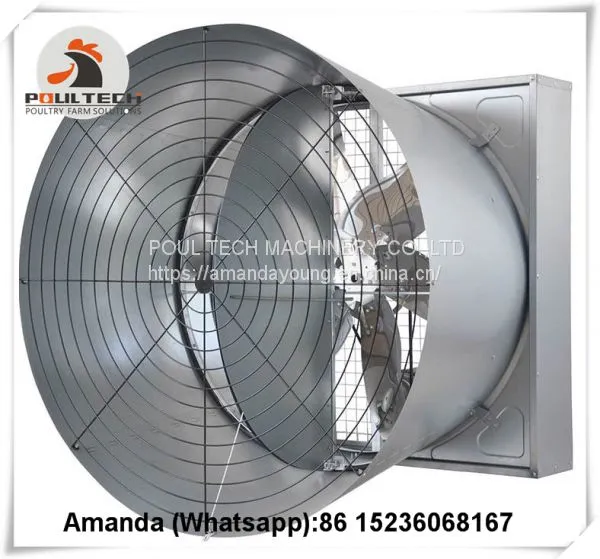

Fan Used in Livestock & Poultry Farming
| Description | Features |
| galvanized frame | Through strength test,square frame and round air guide sleeve are stamped and connected together by standard fasteners, using electric power and air tools. Zinc coat thickness no less than 200g per sq.m,resistant to corrosion and weathering. |
| louver leaves | Hot galvanized louver leaves are also made by stamping mold. 1.5mm-thick middle louver leaf supports plastic automatic centrifugal opening device,ensuring no deformation after operation for a long time. When fan stops operation,all leaves will close tight,leaning no leak for air or light. |
| SS blade | 6 stainless steel blades are self cleaned,with a stamping process by computer mathematical model. |
| V-belt | V-belt from MITSUBOSHI,with high strength,long life span and little maintenance. |
| Automatic belt tensioner | Aluminum magnesium alloy material,no deformation; Tensioned from the inside in order to avoid being distorted to reverse direction. |
| belt wheel and wheel hub | aluminum magnesium alloy material,die casted,with better corrosion resistance. Water proofing groove in the belt wheel protects water against entering inside. Built-in oil bearing in auto industry,maintenance-free. |
| Automatic centrifugal opening device | Injected by reinforced nylon,bearing drive structure included. When powered,the centrifugal opening device pushes louver leaves quickly and flexibly,then ideal temperature and ventilation can be reached within a short period. |
| Famous brand motor | 100% copper cored motor,with CCC authentication. Protection grade-IP55;Insulation grade-F |
| Invisible handle | Both sides of every fan are equipped with handle, making easier for transportation . Concave hole design avoids possible damage to handle when installation in the wall. |
Type 1:
Blade diameter:50 inch
Frequency (HZ):50
Motor speed(r/min):1400
Air volume(CBM):48000
Import power(KW):1.1
Rated Voltage(V):380
Noise(db):64
Dimension(mm):1380*1380*450
Type 2:
Blade diameter:36 inch
Frequency (HZ):50
Motor speed(r/min):1400
Air volume(CBM):23000
Import power(KW):1.1
Rated Voltage(V):380
Noise(db):64
Dimension(mm):1000*1000*450
