Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > FTTH Modem 1GE + RF CATV EPON ONU

FTTH Modem 1GE + RF CATV EPON ONU

Name: FTTH Modem 1GE + RF CATV EPON ONU
Brand: Baudcom
SKU: 159076923
Availability: InStock

FTTH Modem 1GE + RF CATV EPON ONU thumbnail-1

FTTH Modem 1GE + RF CATV EPON ONU thumbnail-2

FTTH Modem 1GE + RF CATV EPON ONU photo-1

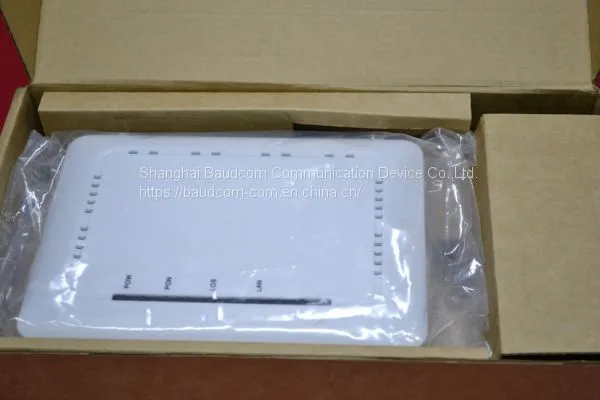

FTTH Modem 1GE + RF CATV EPON ONU photo-2

US$ 25 - 45 MOQ: 1 Piece

Key Specifications

Get Latest Price

Brand Name:

Baudcom

Place of Origin:

China

Model Number:

BD-ONU-301H

Contact Supplier Request Quote Chat Now

Shanghai Baudcom Communication Device Co.,Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

7 days

Product Details
Company Profile
Contact Us

Brand Name Baudcom

Place of Origin China

Model Number BD-ONU-301H

Product Description

BD-ONU-301H GEPON ONU products fully comply with IEEE802.3ah EPON standards. It is operative,
manageable and maintainable at telecommunication level, and can provide high speed data service for customers. It has a PON uplink port that connects to office end apparatus through optical fiber.

BD-ONU-301H GEPON ONU provides one 1000Base-T gigabit ethernet ports and one CATV RF port. The ONU can support data, CATV, and IPTV service, which is ideal FTTX application solution.

Ordering Information

BD-ONU-301H

GEPON ONU, 1 EPON interface, 1*10/100/1000M Ethernet ports, 1*RF CATV port, power AC220V or DC48V.

Features

*Conform to IEEE802.3ah EPON standards.
*Support Ethernet service layer 2 switching and wire-speed forwarding of uplink and downlink services
*Support frame filtering and suppression
*Support standard 802.1Q Vlan function, support VLAN conversion
*Support 4094 VLANs (802.1Q)
*Support Dynamic Bandwidth Allocation (DBA) function
*Support QoS, including traffic flow classification, priority marking, queue and dispatch, traffic shaping and traffic control, etc
*Single ONU supports up to 1 LLID.
*Support IGMP Snooping
*Support Ethernet port ratelimit loop detection
*Support power failure alarm
*Support lightning protection for power supply and lightning protection for service port

Specification

Item	Parameter
PON Interface	1 EPON optical interface Meet 1000BASE-PX20+ standard Symmetric 1.25Gbps upstream/downstream SC single-mode fiber split ratio: 1:64 Transmission distance 20KM
User Ethernet Interface	1*10/100/1000M auto-negotiation Full/half duplex mode RJ45 connector Auto MDI/MDI-X 100m distance
CATV Interface	CATV radio frequency feature (optional) Output level 95dBuv (input-6dBm) AGC working range 10dB CNR ≥46dB@-6dBm (input)
PON Optical Parameter	Wavelength: Tx 1310nm, Rx1490nm Tx Optical Power:0~4dBm Rx Sensitivity: -27dBm Saturation Optical Power: -3dBm Connector Type: SC Optical Fiber: 9/125um single-mode fiber
Data Transmission Parameter	PON Throughput: Downstream 950Mbps; Upstream 930Mbps Ethernet: 100Mbps or 1000Mbps Packet Loss Ratio: latency:
Shell	Plastic casing
Power	External 12V 0.5A AC/DC power supply adapter Power consumption:
Environmental Specifications	Operating temperature: 0 to 50 Storage temperature: -30 to 60 Operating humidity: 10% to 90%(Non-condensing) Storage humidity: 10% to 90%(Non-condensing)
