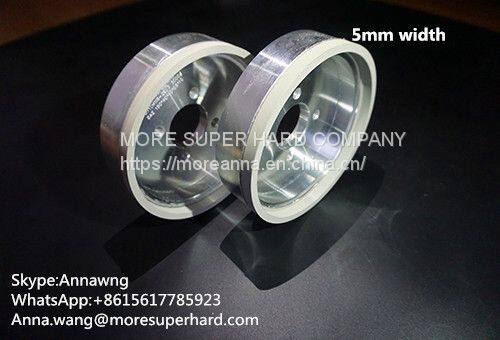

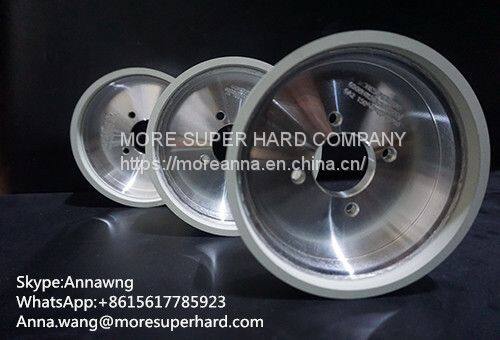

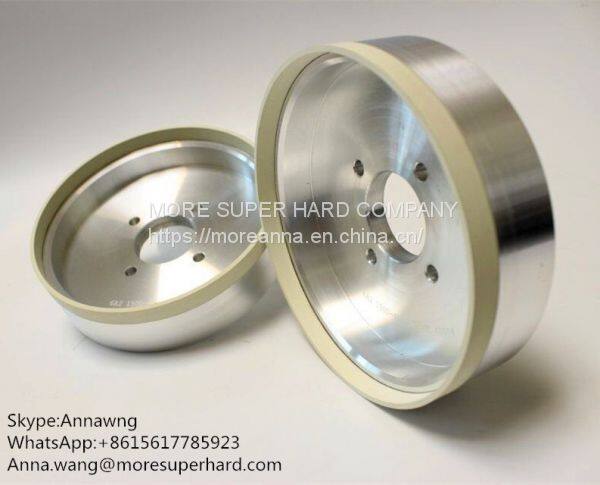

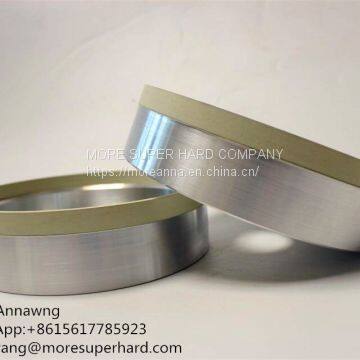

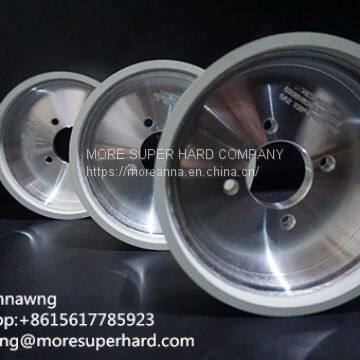

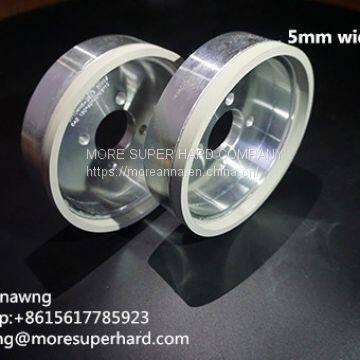

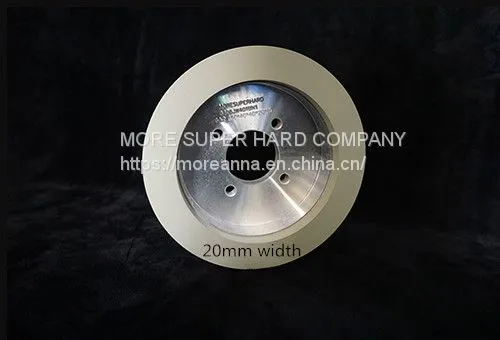

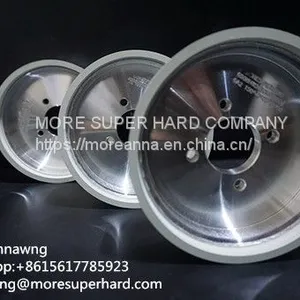

vitrified bond grinding wheel process vitrified bonded grinding wheels

Vitrified bonded grinding wheel has high temperature resistance.High processing efficiency, good rigidity, in the grinding process to maintain the shape of cutting tools, finished product size accuracy can be guaranteed and other advantages.

Using Vitrified bonded diamond grinding wheel to grind PCD tools can improve the grinding efficiency to the greatest extent.

And grinding ratio is small, wear-resisting degree is high, service life is long, processing cost is low, have extensive practical significance and promotion value.

The grinding surface quality of Vitrified bonded diamond grinding wheel is good, which is close to the grinding quality of metal bonded grinding wheel, and its grinding efficiency is very high, about 4 times of that of metal bonded grinding wheel, which has been proved by experiments.

However, due to the poor thermal stability and large inertia of diamond, it is difficult to prepare the Vitrified bonded diamond grinding wheel, and the performance of the grinding wheel batch is not stable. Therefore, the extensive application of the Vitrified bonded diamond grinding wheel is limited.

The most widely used vitrified bonded diamond grinding wheel is mainly used for PCD, CVD, PCBN, carbide, vitrified cutting tools and other cutting tools such as milling cutter, drill bit, reamer, etc.

Compared with common corundum and silicon carbide grinding tools, vitrified bond has strong grinding force, lower temperature and less abrasion. Vitrified bond grinding wheel can adapt to the effect of various coolant.

When you use the vitrified bond grinding wheel to grinding, the shape of the grinding tool is good and the precision of the workpiece is high.

There are many holes in the grinding tool, which is conducive to chip removal, chip storage and heat dissipation during grinding. The self-sharpening of the grinding tool is better, and the dressing interval is longer, so it is easier to finish.

Therefore, the use of vitrified bonded diamond abrasive tools is increasing in some developed countries.

1) high grinding efficiency;

2) high abrasion resistance: the abrasion resistance of the grinding wheel is high and the abrasive grain consumption is low, especially when the workpiece is hard and brittle.

3) low grinding force and low grinding temperature;

4) high precision, good surface quality and good shape retention of the grinding workpiece.

Therefore, the vitrified bonded diamond grinding wheel has more and more advantages in the grinding of some special materials, such as vitrifieds and has a good prospect in the development of diamond grinding wheel.

As a high performance grinding wheel with high speed, high efficiency, high precision, low grinding cost and low environmental pollution, it has been widely used and become a hot spot in the research and development of grinding tools around the world.

The hardness of grinding wheel refers to the difficulty degree of the superhard abrasive material falling off the grinding wheel. The harder the abrasive particles fall off, the higher the hardness of the grinding wheel is.

Generally speaking, the more the combined dose, the stronger the control on the abrasive, the harder the abrasive particles fall off, and the higher the hardness of the grinding wheel.

During grinding, the blade of the grinding wheel is not good and it is easy for the grinding wheel to remain still. The life of the diamond grinding wheel will be increased. However, the surface of the composite disc is easy to crack.

The hardness of the composite sheet is very high. During the external grinding process, the diamond on the surface of grinding wheel receives great grinding force and impact force.

If the vitrified bond dose is too small, the vitrified bond does not keep enough on the diamond, which results in that some diamonds do not play a full grinding role and begin to fall off, resulting in shorter life of the vitrified diamond grinding wheel.

However, when there are too many binders, the hardness of the grinding wheel is too high, and the cutting edge is not enough, it is easy to cause the composite sheet to collapse, resulting in the increase of reject rate.

As the size of the binding agent used is finer than that of diamond, and the binding agent will be densified in the process of burning.

With the increase in the content of binders in the vitrified diamond grinding wheel, the more compact the structure of the grinding wheel, the more clogging the grinding wheel is likely to occur and the grinding wheel will not move. It is often necessary to use the ordinary grinding wheel to cut the super-hard material grinding wheel, remove the redundant binders, make the new diamond cutting edge participate in the next grinding, and reduce the working efficiency of the grinding wheel.
