Help CenterMud Agitator,hedele
Related Products
Model |
APMA5.5 |
APMA7.5 |
APMA11 |
APMA15 |
Mud agitator is used in the surface mud tank to suspend solids and maintain a homogeneous mixture throughout the mud solids control system

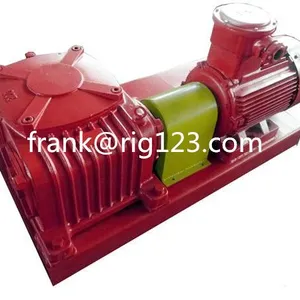

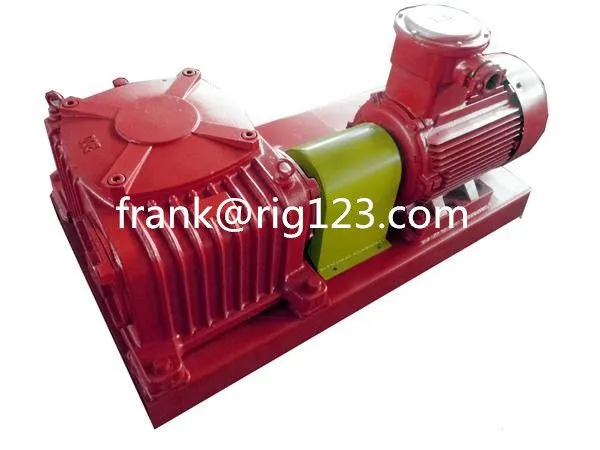

A mechanical agitator is driven by an explosion-proof motor coupled to a gearbox that drives the impeller & shaft. The impellers transform mechanical power into fluid circulation or agitation. The objective is to achieve a uniform suspension of all solids.
Solids control mud agitators are the mud mixers on Mud Tank. Including the horizontal and vertical type. That is meant by motor mounting direction. Nowadays, more and more users prefer the helical bevel geared agitator. Why? The helical bevel gear box will be more stable and reliable than the helical worm and wheel gearbox.
We hear the motors vary from each other as well. Such as30 HP motor of 380V/50Hz/3Ph and 4 poles. For mud process, usually we request agitator rotate at 60~70 rpm, thus we'll find proper gearbox with certain reduction ratio. (Of course, the rated speed was calculated well prior to model selection under torque demand, and so on)
For example, if we require shaft rotates 62 rpm with 1450 rpm motor, then the gearbox reduction ratio should be about 23:1. While if we request shaft rotates 13 rpm with 730 rpm motor, then the reduction box should hold reduction ratio at about 56:1.
Aipu manufacture mud agitator with worm and wheel gearbox, also the agitator with helical bevel gear box. The high performance, efficiency, and quality is appreciated much among clients. Helical bevel geared agitator will transfer more efficient to shaft save more energy than common worm and wheel gearbox. No matter for horizontal or vertical agitator, there is helical bevel gearbox available.
Large torque mud agitator will help much on mixing drilling fluid thoroughly, especially when there is large quantity mud with big gravity.
Electrical Brake Handle S50JCK-XI-20RIG-8457A
Electrical Brake Handle C-S50JCK-XI-21R1G-10815A
Outdoor amplifier panel LMS-ODA Part number: PH-ODA
alarm unit mainboard LMS-AUC Part number: PH-AUC
Transformator LMS-36/21/12 Part number: PH-TR "
Pressure switch K97C2E
Air filter Purolator F312(20*20*2) for power plant.
Air filter Purolator F312(20*25*2) for power plant.
Module Studded (FLUID END MODULE) 107.11.110.14-2
Crosshead Guide lower 107.11.90.03
Croshead Guide Upper 107.11.90.05
hydraulic pump 708-1U-01111 \ 708-1U-00162
107.12.20.22 Left crosshead
107.12.20.23 right side, middle crosshead
107.12.20.24 inner ring
107.12.20.26 grease Φ20×2, =25
107.12.20.27 Pin plate gasket δ2
107.12.20.28 Pin plate gasket δ1
107.12.20.29 Pin plate gasket δ0.5
107.05.20.18 retaining ring 280
107.12.20.30 Pin plate gasket δ0.25
107.05.20.16 Ten head pin
107.06.20.38 bolt M20×60
4G154836 bearing 180×280×219
Гидроцилиндр рабочего ключа PZ40-02-00B PZ40-02-01-00
Гидроцилиндр предохранительного ключа PZ40-01-00B PZ40-01-01-00
A5 пылеотбойное кольцо130х142х12 620322-00-1250
Направляющая ремень 620350-02-3350
Кольцо Глэна 620336-03-0500
OD уплотнительное кольцо 620338-04-0700
О-образное кольцо 620308-00-2780
ОК уплотнительное кольцо 620338-04-1090
C2 уплотнительное кольцо 620338-04-0750
О-образное кольцо145х3,55 620308-00-3100
BA уплотнительное кольцо 620338-02-0600
A5 пылеотбойное кольцо 620322-00-1150
Пружина тарельчатая 620102-00-0070
Механическое уплотнение SD-05E-00
Соединительный вал JC70-14-51B-03
KG-80 long open brake 6.3 mpa strock 18mm
BG-75B long closed brake 6.3 mpa strock 18 mm
Box hydraulic (big) NB1602.01.04.00
Box hydraulic (small) NB1602.01.01.00
Gear shaft GH3161-03.02(G)
Wheel (wreath) GH3161-02.10.00(G)
CRANK SHAFT GH3161-02.08.00
Box hydraulic (small) 1200026776
Gear shaft 1200004037
Wheel (wreath) 1200003993
CRANK SHAFT 1200003987
Sealing bush А459.46
Main bearing А459а.39
Central tube А459а.2
Bearing 2007934 GВ297-84
China Hedele Energy Equipment Co., Ltd
Whatsapp:+8617792077336
Add:Floor 21 fengshang,No.1 Gaoxin,Gaoxin District,Xi'an,China
Oil seal PD170h200h16 HG4-692-67
Insulating ring А459а.34
Upper bushing А459а.28
O-ring А459а.17
Spring washer А459.16
Upper sealing ring А459а.18
Exhaust gasket А459.19.0
Upper pressure cover А459.20
Discharge pipe А459а.21
Bottom pressure cover А459.9
Lower box gland А459а.22
Sealing ring А459.23
Sealing ring А459.24
Sealing ring А459.26
Drilling mud umbrella А459.27
Bearing 32130 GВ283-81
Bottom sleeve А459а.45А
Oil seal PD160h200h16 HG4-692-67
Gasket А459.а.3
XJFH-/-2008 Balancing block XJFH5/35～2008
XJFH-/-2013 bent shaft (CRANK SHAFT) XJFH5/35～2013
XJFH-/-2018а bucket (135) XJFH5/35～2018A
GH3161-04.12 90 (G) Sliding bar rod (tension lever) 11-3161-0412
W001-045-04-002 Impeller 2500SB68JC-14.1.2
W001-045-04-003 Wear pad 2500SB56JC-26.1.3
W001-045-02-015 oil seal, 63.5*88.8*12 Kit20619
W001-045-04-021 Bearing 7311ACM GB/T292-94
W001-045-02-027 Oil seal 47.6*69.9*10 Kit20619
W001-045-04-042 Packing gland set 2500SB68J-4.1.4.0
W001-045-04-044 Packing 10*10 T3101
W001-045-04-045 Pin SB68J-4.1.6
W001-045-04-046 Sleeve, shaft SB68J-4.1.5
W001-045-04-047 Mechanical seal VJ56
W001-045-02-051 Thin key C6*25 GB1567-79
W001-045-02-058 Pump joint SB56JC-26.2
W001-045-04-059 Electromotor joint 75 KW SB68-1.4
W001-045-04-028 Shaft 2500SB56JC-26.1.7
W001-045-02-016 bearing 2313 GB/T281-94
W001-045-04-046 sleeve,shaft SB68J-4.1.5
W001-045-04-001 pump case 2500SB68JC-14.1.1
W001-045-04-001 pump case 2500SB68JC-14.1.1
China Hedele Energy Equipment Co., Ltd
Whatsapp:+8617792077336
Add:Floor 21 fengshang,No.1 Gaoxin,Gaoxin District,Xi'an,China
W001-045-04-002 impeller 2500SB68(56)JC-14.1.2
W001-047-01-004 Impeller 32SB180J-002A
W001-047-01-010 Mechanical seal 32SB
W001-047-01-011 Shaft sleeve 32SB180J-011A
W001-047-01-016 Oil seal FB35*55*8 GB9877.1-88
W001-047-01-020 Shaft 32SB180J-006A
W001-047-01-019 Bearing 6207 GB/T 276-94
W001-047-01-013 pump cover 32SB180J-003A
W001-046-01-002 impeller set W1Q56-1.1.5.0
W001-046-01-030 shaft WJQ56J-3.1.2
W001-046-01-049 sleeve,shaft SB68J-4.1.5
W001-046-01-051 Mechanical seal assemply VJ56
W001-046-01-063 Front wear plate W1Q56-1.1.4
W001-046-01-02-016 bearing 2313 GT/T281-94
W001-046-01-04-021 bearing 7311ACM GT/T292-94
W001-046-01-001 pump case WIQ56J-3.1.1
W001-046-01-004 packing plate WIQ56J-1.1.6
W001-046-01-005 wear plate SB56JC-26.1.3
W001-046-01-014 stuffing box SB56JC-26.1.6
W001-046-01-021 bearing hausing SB56-18.1.8
