Home > Instruments & Meters > Test Instrument > Test Machine > BJ-93D Stand-combustible Gas Detector

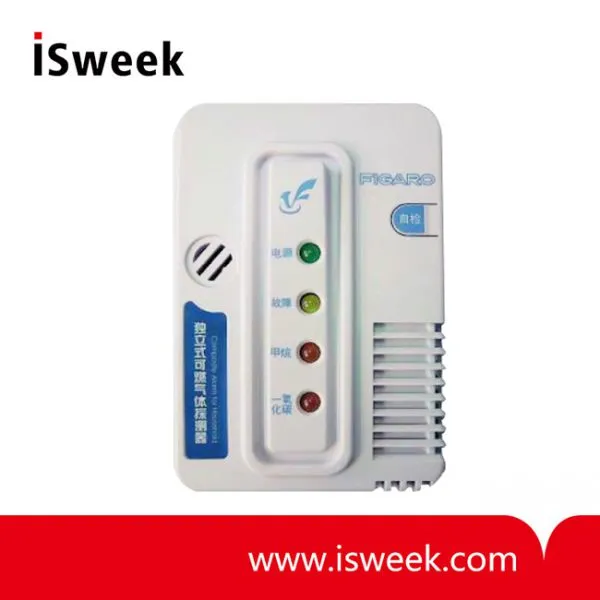

BJ-93D Stand-combustible Gas Detector
US$ 0.001 - 0.01
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Figaro
Place of Origin:
China
Model Number:
BJ-93D
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
F2000TSM-CO2-S/L Carbon Dioxide (CO2) Gas DetectorUS$ 0.001 - 0.01MOQ: 1 Piece -
TC-BO3-3 Portable Combustible Gas DetectorUS$ 0.001 - 0.01MOQ: 1 Piece
-
AS330 Metal Oxide Sensor Management SystemNegotiableMOQ: 1 Piece
-
AS510 Remote Air Quality MonitorNegotiableMOQ: 1 Piece
-
SD13 10-Year Sealed Lithium Battery Power Smoke AlarmNegotiableMOQ: 1 Piece
Brand Name
Figaro
Place of Origin
China
Model Number
BJ-93D
Stand-combustible Gas Detector
BJ-93D Combustible Gas Detector Detection of gas:
methane, carbon monoxide
BJ-93D Combustible Gas Detector Output:
• DC12V pulse output can drive shut-off valve
• Relay contact output
BJ-93D Combustible Gas Detector Technical Parameters
| Detection method |
FIGARO semiconductor gas sensor |
| Alarm concentration |
Methane: 1% LEL ~ 25% LEL Carbon monoxide: 50 x 10-6 ~ 300 x 10-6 |
| Power supply |
AC220V ± 15% |
| Power consumption |
less than 2W |
| Alarm | methane / carbon monoxide alarm lights, intermittent buzzer sound (alarm sound over 70dB), delay after about 20S output contact is closed and the output drive an external solenoid valve action signal, fault indicator flashes. |
| Over-temperature alarm |
the ambient temperature exceeds 70°C, carbon monoxide and methane warning lights warning lights flashing alternately, buzzer intermittent sound (70dB alarm sound above), after a delay of about 20S output contact is closed and the output drive an external solenoid valve action signal, fault indicator flashes. |
| When the fault alarm |
(sensor failure) fault indicator light, buzzer continuous sound. |
| Output delay |
20 seconds after the alarm output (can be changed according to user requirements) |
| Temperature |
-10 ~ 55°C |
| Size & Weight |
108mm x 75mm x 33mm, about 200g |
| Accessories |
Install a hanging plate, screw 2, up tube 2 |
| Implementation of the standards |
GB15322.2-2003/GB15322.5-2003 |
