Code: XYT-XX-DWDM-XXCH
Chat Online
Features
Product
Specification
Sale service
Technical Support
Description

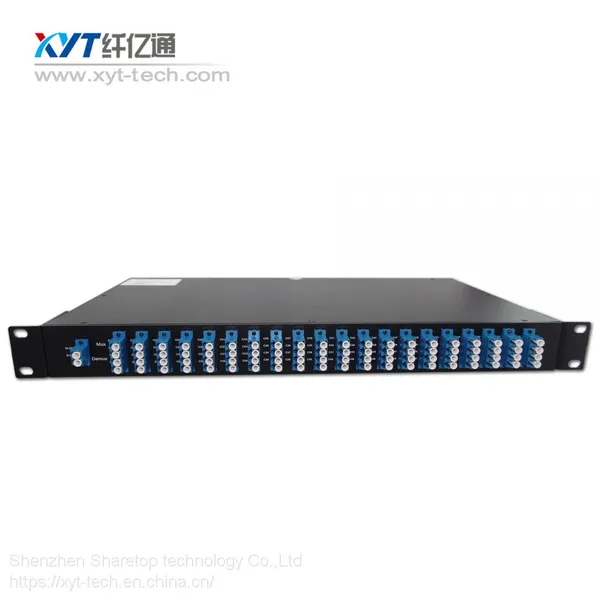

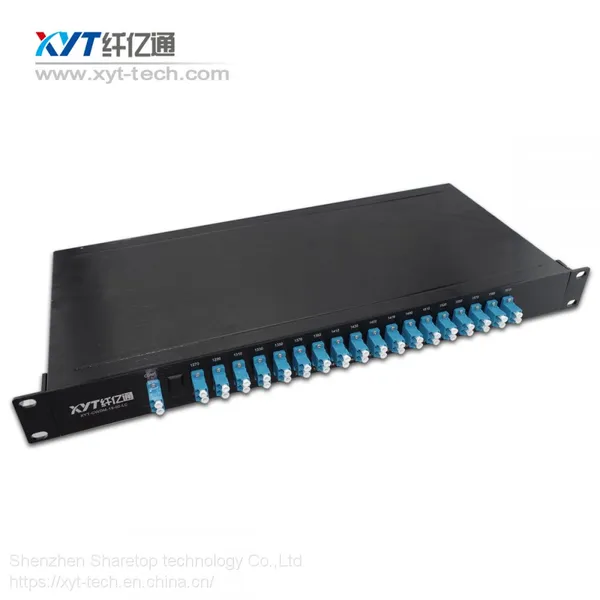

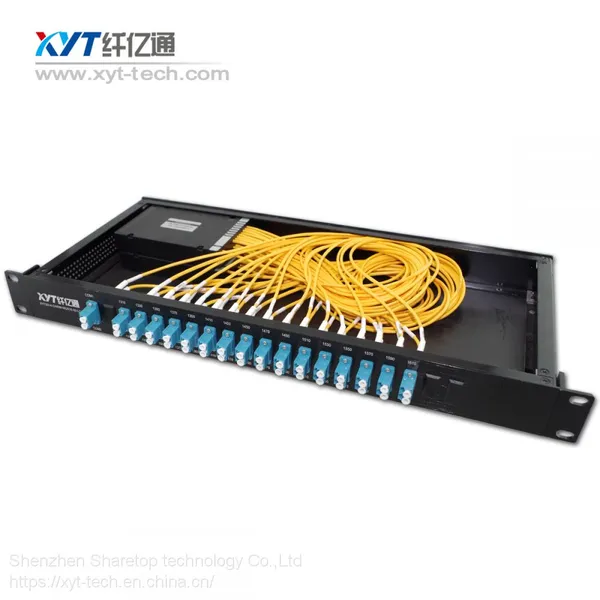

Sharetop(XYT-TECH) DWDM multi-channel multiplexer /demultiplexer (Mux /DeMux）modules are available on ITU channel spacing of 100GHz. They demonstrate low loss, temperature insensitivity and reliable performance in any system application.Fixed Mux/DeMux modules offer low-cost wavelength management solutions that are suitable for long haul, metro, and access application.
Features
Low Insertion Loss
High Isolation
Low PDL
Compact Design
Good channel-to-channel uniformity
Applications
DWDM System
PON Networks
CATV Links
Fiber optical amplifier
Wavelength routing
Specification
| Item | Unit | Parameters | ||
| Channel Spacing | GHz | 100GHZ | ||
| Wavelength Range | C- band ITU channels | |||
| Channel Centers | nm | ITU | ||
| Channels | ch | 8 | ||
| Passbandwidth | nm | ≥ +/- 0.13 | ||
| Passband Ripple | dB | ≤ 0.5 | ||
| Channel Insertion Loss | dB | ≤2.5 | ||
| Channel EXP Insertion Loss | dB | ≤2.8 | ||
| Isolation (adjacent channel) | dB | ≥30 | ||
| Isolation (non-adjacent channel) | dB | ≥ 40 | ||
| Polarization Dependent Loss | dB | ≤ 0.2 | ||
| Polarization Mode Dispersion | ps | ≤ 0.2 | ||
| Directivity | dB | ≥ 50 | ||
| Return Loss | dB | ≥ 45 | ||
| Optical Power Handling | mW | ≤ 500 | ||
| Operating Temperature Range | ℃ | -5 to 70 | ||
| Storage Temperature Range | ℃ | -40 to +85 | ||
| Fiber Type | SMF-28e | |||
| Package dimensions | abs box or 1u rack chassis | |||
All the specifications are based on the devices without connector
CONTACT : sales@xyt-tech.com
