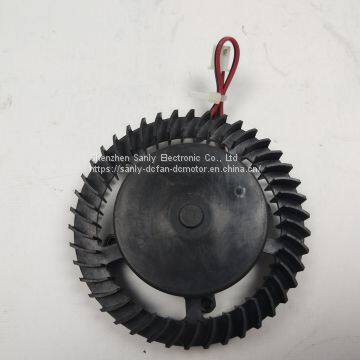

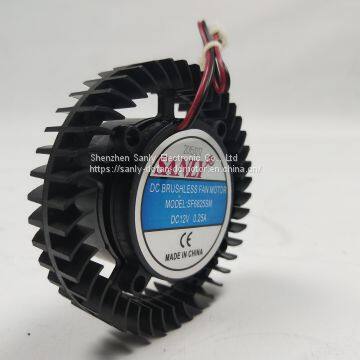

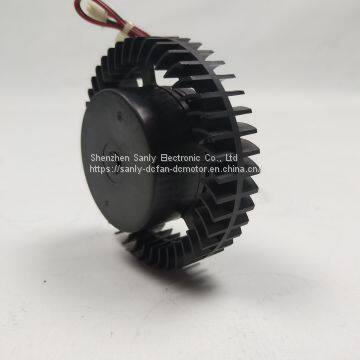

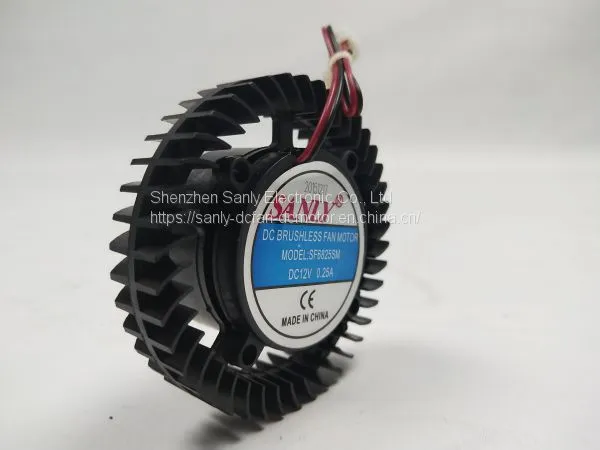

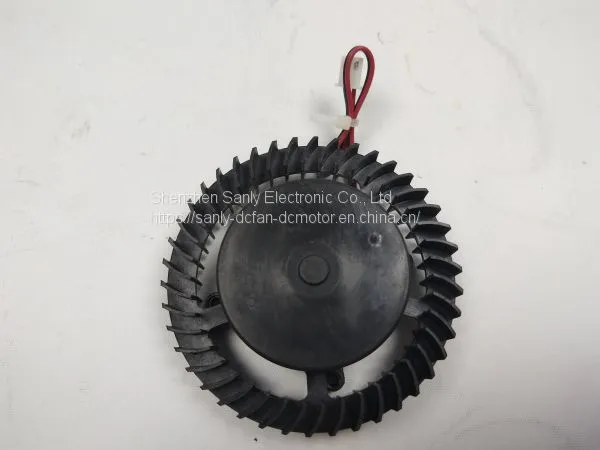

DC 12v 6825 ball bearing brushless cooling fan centrifugal fan
Specifications
Series | 6825 | Weight | 80g | ||||||||
Bearing | Ball bearing | Power Cord | 26AWG2468 | ||||||||
Insulation Grade | Class B | Protection Grade | IP44/IP45 | ||||||||
Operating Temperature | -10℃ ~ 60℃ | Life Expectancy | 40000-50000h | ||||||||
Rated | Operating Voltage Range | Rated Current | Rated input power | Speed | Maximum | Maximum | Noise | ||||
Model | Function | VDC | VDC | Amp | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | dB-A |
SF6825BL | FG/PWM/RD | 12 | 6to13.5 | 0.12 | 1.44 | 1800 | 0.18 | 6.31 | 5.04 | 0.20 | 31.5 |
SF6825S/BM | FG/PWM/RD | 12 | 6to13.5 | 0.25 | 3.00 | 3000 | 0.30 | 8.20 | 8.40 | 0.26 | 37.0 |
SF6825S/BH | FG/PWM/RD | 12 | 6to13.5 | 0.45 | 5.40 | 4000 | 0.40 | 9.40 | 11.20 | 0.30 | 42.0 |
SF6825S/BL | FG/PWM/RD | 24 | 15to25.5 | 0.10 | 2.40 | 1800 | 0.18 | 6.31 | 5.04 | 0.20 | 31.5 |
SF6825S/BM | FG/PWM/RD | 24 | 15to25.5 | 0.20 | 4.80 | 3000 | 0.30 | 8.20 | 8.40 | 0.26 | 37.0 |
SF6825S/BH | FG/PWM/RD | 24 | 15to25.5 | 0.35 | 8.40 | 4000 | 0.40 | 9.40 | 11.20 | 0.30 | 42.0 |
Our Services
1. Warranty: one year warranty for all products.
2. Private Label: All products are able to be Private labeled.
3. Delivery time: Normally lead time is 15-20 days.
4. Products quality: 100% products inspection before delivery.
5. Customized product and cooling products is provided as customer request.
l Help us to provide preferably product fans for you:
l Fan Type, Centrifugal Fan, Centrifugal Fan Blower, Axial fan, Cross Flow Fan, Frameless Fan
l Case Size (Dimensions)
l Speed
l Air Flow
l Noise
l Rating Voltage, 3V/5V/12V/24V....
l Bearing, Sleeve/Ball
l Wire, 2 lead wires/3 lead wires/4 lead wires
l Wire Length
l Connector or not
l Target Price
About Us
Shenzhen Sanly Electronic Co, .Ltd.
Established in 1998 in Shenzhen, has been designing, producing and marketing high-performance DC brushless motor and cooling fans for over 20 years. SANLY, an ISO certified company, designs and manufacturers sealed DC brush and brushless motor electric cooling fans and blowers for industrial, conmercial and home appliance markets. Our products are mainly used for cooling radiators and for ventilation. Additionally, we offer many of our OEM-quality fans and motors.
We produce DC Motors, DC Blowers, Centrifugal Fans, Axial DC Fans, Frameless Fans, Cross Flow Fans. Our products satisfied clients well with their good functions, such as temperature control, manual speed control, PWM speed control, low/high speed, Anti-dust, Anti-moisture, lock protection.
