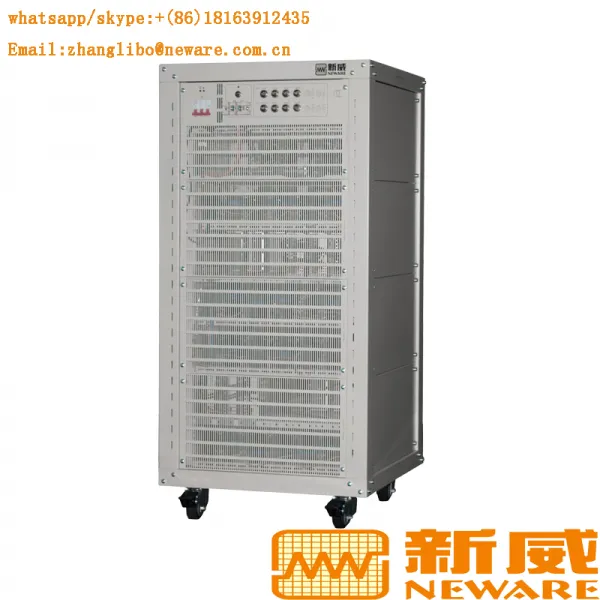

Neware 5V500A E-lectrical cars cells tester

Name: Neware 5V500A E-lectrical cars cells tester
Brand: Neware
Price: USD $5000 - 50000 / Set

FOB Price

USD $5000 - $50000 / Set

1 Set(Min.Order)

Supply Ability 10000 Set / Sets per Month
Port shenzhen
Payment Terms:T/T
Delivery Detail:7 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:

Neware

Place of Origin:

China

Model Number:

CT-4008-5V100A-NA

Product Description

Neware is a leading manufacturer of battery testing system manufacturer for 20 years in China.

Our equipment provide DCIR,pulse,cycle life,capacity test and so on.

Technical specification

BTS-5V100A

Battery Testing System

Model:

BTS-

100

Material Code:

CT-4008

-5V100A

Description

Product Specification

AC Input

AC 220V±10% 50Hz

Power

7089

Resolution

AD: 16bit; DA: 16bit

Impedance Input

≥1MΩ

Voltage

Measuring Range

25mV~5V

Discharge Min Voltage

2.5V

Accuracy

± 0.1% of FS

Stability

± 0.1% of FS

Current

Range

Charge: 500mA~100A Discharge: 500mA~100A

Accuracy

± 0.1% of FS

Stability

± 0.1% of FS

Power

Output Power Per Channel

500W

Stability

± 0.2% of FS

Time

Rise Time

20ms (10%FS~90%FS)

StepTime

≤ (365*24) hour/step

Time Format 00:00:00:000 (h:min:s:ms)

Data Acquisition

Intervals

Time interval Δt: (100ms~60000s)

Voltage interval ΔU: (10mV~5V)

Current interval ΔI: (200mA~100A)

Frequency

10Hz

Charge

Modes of Operation

CCC, CVC, CC & CVC, CPC

End Conditions

Voltage, Current, Test Time, Capacity

Discharge

Modes of Operation

CCD, CPD, CRD

End Conditions

Voltage, Current, Test Time, Capacity

Pulse

Charge

CCC

Discharge

CCD

Minimum Pulse Width

500ms

Automated Switch

Automated switch from charge to discharge for each pulse

End Condition

Voltage, Test Time

Cycle

Cycles

65535

Steps

254

Nested Function

Max three levels of loops

Protective Function

Power-off data protection

Off-line Operating

User-defined safety (upper and lower) tolerance of current, voltage and delay time

Reverse-connecting protection

Channel Features

Independent pairs of closed loop for constant current source and constant voltage source

Channels

Independent control

Detection and Sampling

4-wire Connecting

Noise Density

<85dB

Data Management

MYSQL Database

Communication Means

TCP/IP Protocol

Exports Formats

EXCEL, TXT, Graph

Communication Interface

Ethernet Port

Number of Channels Per Cabinet

Operating Environment

Description

Product Specification

Operating Temperature

0ºC~40ºC

Storage Temperature

-10ºC~50ºC

Operating Humidity

≤70% RH

Storage Humidity

≤80% RH

Application:

GSM test,pulse test,capacity test,cycle life test,DCIR test,charge&discharge test,Electrochemistry Research and so on.

Warraty: 1 year

Delivery: 7days after deposit

Contact information:

Emily Zhang

zhanglibo at neware.com.cn
