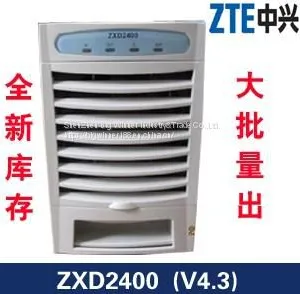

ZTE ZXD2400 (V4.3) Rectifier Module, 50A communication power
1 , ZTE ZXD2400 50A rectifier modules using the new high-capacity devices IGBT, simplified circuit structure, and improve reliability.
2 , ZTE ZXD2400 50A rectifier uses the full load range soft-switching power conversion technology to ensure the full load range has a high conversion efficiency , while improving the switching frequency , the power compact and lightweight as possible, followed by electromagnetic interference greatly reduced
3 , Wide AC input voltage range suitable for Chinas vast countryside, the mountains of the grid status
4 , AC input power factor close to 1
5 , ZTE ZXD2400 50A rectifier output characteristics to achieve constant power type , AC power calls for battery charging, the battery voltage is low, can provide 20% higher than the rated output current. In the same load capacity, can reduce the number of modules monomer , thus saving investment for the user
6 , built-in monitoring CPU module , real-time display of the parameters rectifier
7 , the keyboard can be set up to protect the alarm parameters are floating adjustable output voltage, output current limit and other variables ;
8 , perfect three remote interface functions, provides RS485 communication interface , can achieve centralized monitoring
9 , ZTE ZXD2400 50A input and output with perfect reasonable protection measures , both to improve the reliability of the rectifier , but also protect the electrical equipment
10 , to facilitate input and output interfaces , you can achieve direct hot-swappable ;
11 , advanced modular design , multiple parallel flows automatically
12 , the fan thermostat work to improve the reliability of the system
13 , ZTE ZXD2400 50A rectifier professional input, output filter circuit and shielding insulation design it has a good electromagnetic compatibility and tiny electromagnetic radiation.
Input :200-240V 50HZ/60HZ
Output : 48V 50A
Voltage : 42V-60V adjustable current 5A-55A adjustable.
Stock for sale,if need other model please contact with us..
