T8461 Rockwell Automation Digital Output Module
T8461 Rockwell Automation Digital Output Module
DON’T HESITATE TO CONTACT Us:
Contact Person: Jim (Manager)
Email: sales6@amikon.cn | Skype: +86-180-2077-6782
Fax: +86 0592-5165-561 | Mobile Wechat: +86-180-2077-6782
QUICK START GUIDE
TrustedTM Industrial Control System

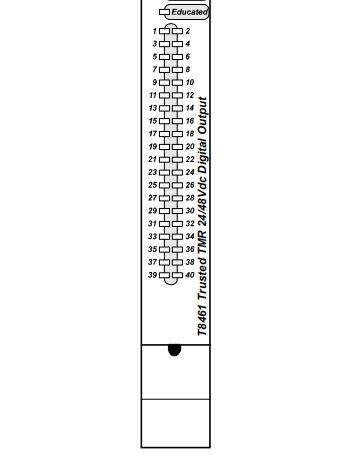

TrustedTM TMR 24/48V dc Digital Output Module-T8461
The TrustedTM TMR 24/48V dc Digital Output module interfaces to 40 field
output devices. Outputs are arranged in five groups of eight. All outputs in
a group share a common power source and return. Fault tolerance is achieved through Triple Modular Redundancy (TMR) within the same module for each of the 40 output
channels. The module provides on-board Sequence of Events (SOE) reporting
with a resolution of 1ms. The “event” is the actual sensing of the field device loop current.
Each triplicated section (slice) of the module, receives output instructions from the TrustedTM TMR Processor and sends its data to an internal safety layer hardware voter. Each
slice uses the voted data to control the outputs. Every output channel consists of a six-element voted array. The output switch array provides fault tolerant, uninterrupted control
under an output switch failure condition. Output switching and fault diagnostics comply with the demanding requirements of IEC-61508 SIL-3 for First Fault - Fault Tolerant, and Second Fault - Fail Safe outputs.
Features:
40 TMR output channels per
module
Five isolated groups of eight outputs each
Six-element voted output array
Comprehensive diagnostics and self-test
First fault – Fault Tolerant, Second fault – Fail Safe
Line monitoring on a per channel basis
Automatic over-current protection – no fuses required
2500V dc Opto-Isolation
Hot replaceable
Front panel status LEDs for each channel
Module fault and status indicators
IEC 61508, SIL 3 safety applications
On-board 1ms resolution
Sequence of Events reporting
