Home > Products > Kraft paper machine > New type 1575 corrugated paper machine, kraft paper machine

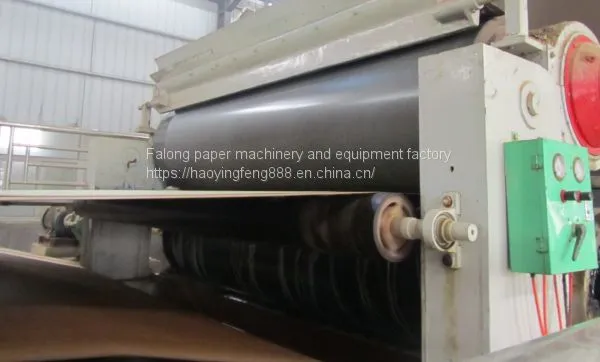

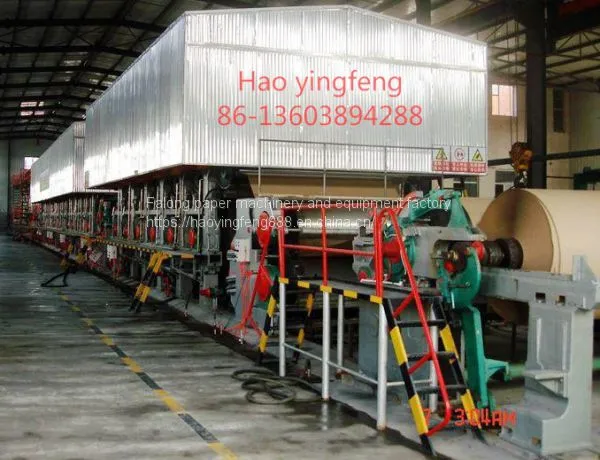

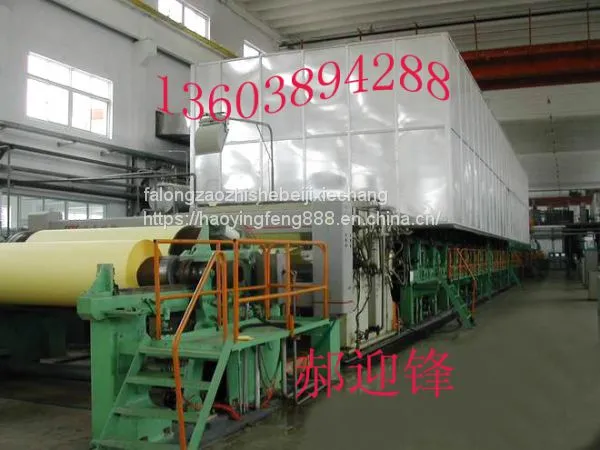

New type 1575 corrugated paper machine, kraft paper machine
- 100 Set / Sets per Month
- tianjin/qingdao
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 45 days
- Semi Automatic Packing Line , Toilet Roll Packaging Machine Price
- Semi Automatic Packing Line , Toilet Roll Tissue Packaging Machine
- Semi Automatic Tissue Paper Packing Machine , Tissue Rolls Packing Machine
- Tissue Rolls Packing Machine , Automatic Packing Machine
- Tissue Roll Packing Machine , Semi Automatic Toilet Roll Packing Machine
- Manual Cutter for Cutting Paper , Paper Cutting Machine Small Size
Product Details
Brand Name: | yingfeng Mechanics | Place of Origin: | China | Model Number: | 1575 |
Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas | Warranty: | 1 year |
Weight: | 80-120tons of | Dimension(L*W*H): | 36000mm×4500mm×4500mm | Voltage: | 380V |
Product Type: | Other, kraft paper | Condition: | New | Power(W): | 300KW-450KW |
Processing Type: | Other, kraft paper |
Product Description
Our factory is a professional manufacturer of paper machine, paper machine, paper machine, small paper machine and pulping equipment, is one of the earliest professional manufacturers of paper equipment in China. The company mainly produces: 787, 1092, 1575, 1760, 1880, 2364, 2400, 2640, 2880, 3150, 3200, 3400, 3800, 4000, 4400 series paper machine. There are various types of paper making machines, such as round net, long net and laminated net, etc. Environmentally friendly pulping: advanced technology, excellent equipment quality, after-sales service warm and thoughtful.
1575 type multi cylinder multi cage paper board machine, kraft paper machine
1575/80 four cylinder net dryer paper machine
One, use: used to produce convex board, various cardboard, etc.
Two, technical characteristics:
1, net paper width: 1575mm
2, gauge: 2400mm
3, working speed: 20-80m/min
4, theoretical output: 15-18t/d
5, transmission mode: distributed drive, AC variable frequency speed regulation.
6, outline size: 36000 x 4500 x 4500
Three, main equipment:
1. Round mesh: 4_1250 mesh cages, 4 rolls on_380 soft glue, 1 roll back.
2, the press part: 260 for rubber roller, 3 for roller, 400 for pressing 400 roller, and 1 for roller.
3, bake Cadres: 1 of the 2500 drying cylinders, 5 of the 1500 drying cylinders, 1 of the 400 400 rollers, 1 of the 400 roller.
4, the transmission part: distributed transmission, AC frequency conversion speed regulation.
Four, accessory equipment: 1575 five roller press, 1575 cylinder winding machine.
Sales manager: hao yingfeng +86-13603894288
Email:940746614@qq.com
WhatsApp: 86-13603894288
imo: 86-13603894288
Email: 940746614@qq.com
