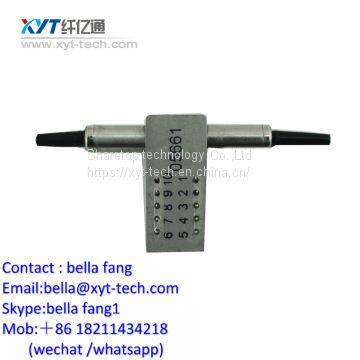

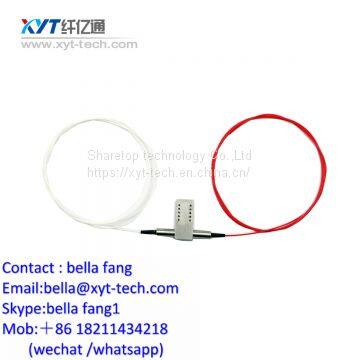

1x2 Mechanical Switch Fiber Optic Product FC/UPC
US$ 20 - 600
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
XYT-TECH
Place of Origin:
China
Model Number:
XYT-OSW
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2x2B Mechanical Bypass Switch FC/UPC Line ProtectionUS$ 20 - 600MOQ: 1 Piece -
2x2F Fully Switched FC/UPC Line Protection Fiber Optic SwitchUS$ 20 - 600MOQ: 1 Piece
-
1x1 MEMS VOA Fiber Attenuator SM 0-30dbUS$ 20 - 600MOQ: 1 Piece
-
1x2 MEMS VOA Fiber Attenuator SM 0-30dbUS$ 20 - 600MOQ: 1 Piece
-
1x4 MEMS Fiber Optic Switch SM FC/UPC ConnectorUS$ 20 - 600MOQ: 1 Piece
Brand Name
XYT-TECH
Place of Origin
China
Model Number
XYT-OSW
Features
Low Insertion Loss
Wide Wavelength Range
Low Crosstalk
High Stability, High Reliability
Epoxy-free on Optical Path
Latching and Non-latching
Applications
Channel Blocking
Configurable Add/Drop
System Monitoring
Instrumentation
Specification
| Parameters | 1×2 | ||
| Wavelength Range | nm | 670~980 | 1260~1650 |
| Operating Wavelength | nm | p>670/785/850/980 | 1310/1490/1550/1625/1650 |
| Insertion Loss | dB | Typ:0.5 Max:0.8 | Typ:0.4 Max:0.6 |
| Return Loss | dB | SM≥50、MM≥30 | |
| Crosstalk | dB | SM≥70、MM≥65 | |
| PDL | dB | ≤0.05 | |
| WDL | dB | ≤0.25 | |
| TDL | dB | ≤0.25 | |
| Repeatability | dB | ≤±0.02 | |
| Power Supply | V | 3.0 or 5.0 |
|
| Lifetime | Tim | ≥107 | |
| Switch Time | ms | ≤8 |
|
| Transmission Power | m | ≤500 | |
| Operating Temperature | ℃ | -20~+70 |
|
| Storage Temperature | ℃ | -40~+70 | |
| Weight | g | 16 | |
| Dimension | mm | (L)27×(W)12.6×(H)8.0 (±0.2) | |
Above specification are for device without connector
