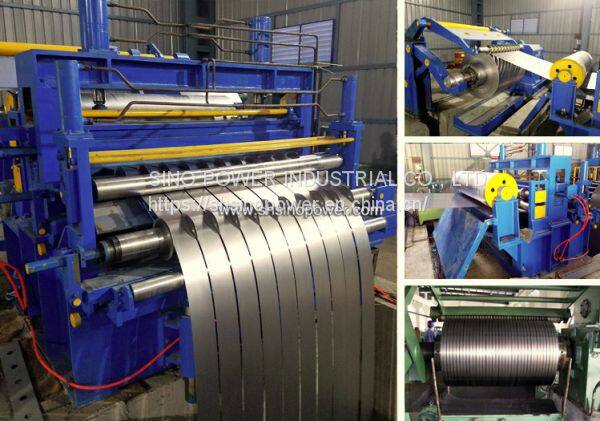

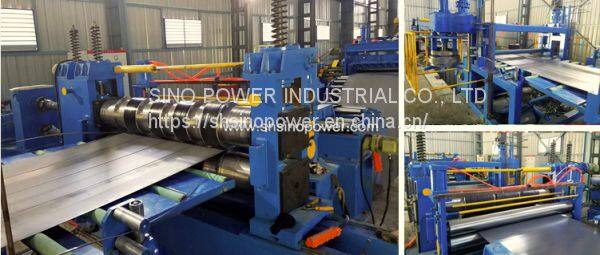

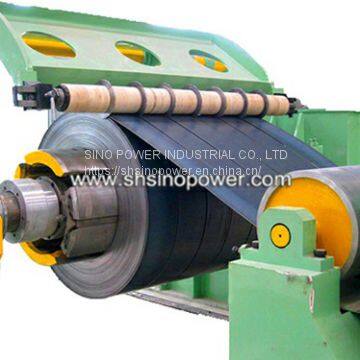

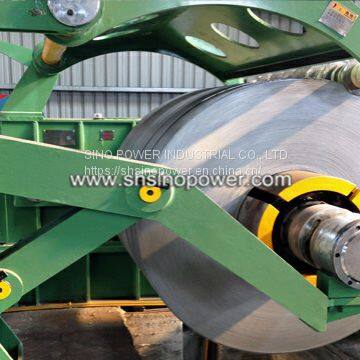

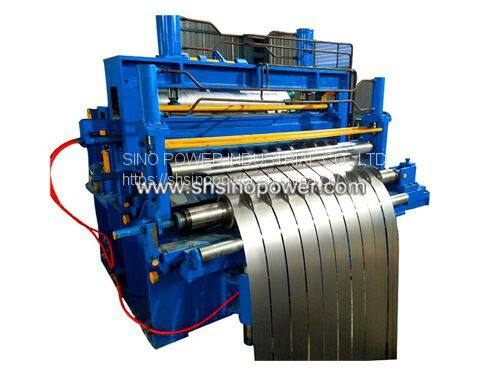

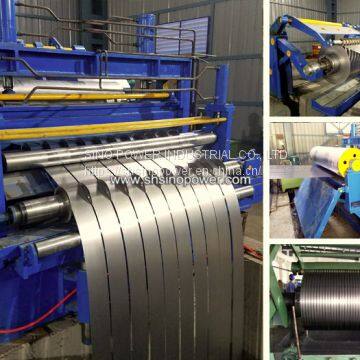

SP(0.2-2.0) metal slitting line
Coil thickness: 0.2-2.0mm
Coil width:400-1600mm
Productin speed:20-120m/min
Pipe material: HR, CR, PPGI, GI,AL,CU,etc
SP(0.2-2.0) Series Steel slitting line is applicable to coils of various specifications. It is used for slitting the coil into required width for the use of punch line through the procedure of uncoiling, pre-leveling, cropping, slitting and recoiling. It has advantages such as proper layout, easy operation, highly automated and high production efficiency.
1. Technical Parameters of metal slitting line
| Model | Thickness | Coil Width | Coil Weight | Number of Strip |
Line Speed | Coil Material |
| mm | mm | tons | pcs | m/min | ||
| SP(0.2-2) | 0.3-2.0 | 400-1600 | ≤20 | 8~20 | 0~150 | δs≤230N/2, Cold-rolled Coil, Hot-rolled Coil, Stainless Coil, Galvanized Coil, Aluminum Coil, Copper Coil, etc |
| SP(0.3-3) | 0.3-3.0 | 400-1600 | ≤20 | 8~20 | 0~120 | |
| SP(1-6) | 1-6 | 500-2200 | ≤25 | 5~15 | 0-80 | |
| SP(1-8) | 2-8 | 500-2200 | ≤25 | 5~12 | 0-60 | |
| SP(2-10) | 2-10 | 500-2200 | ≤35 | 3~10 | 0-60 | |
| SP(2-12) | 2-12 | 500-2200 | ≤35 | 3~10 | 0-40 | |
| SP(3-16) | 3-16 | 500-2300 | ≤35 | 2~8 | 0-40 | |
| SP(5-20) | 5-20 | 500-2300 | ≤35 | 2~8 | 0-20 |
2. Process Flow of slitting line machine

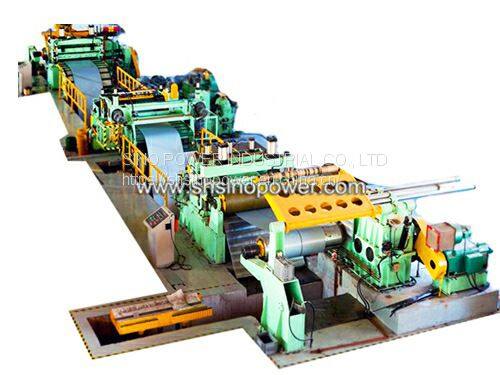

Raw material platform→ carrying coil car→ hydraulic uncoiler→ feeding guide plate→ pair pinching roller, five rollers leveling→ coil head cutting→ front looping table→ side guiding table→ pinching machine→ disc slitting→ curling machine→ back looping table→ pre-feeding coils→ tension table→ rewinding→ discharging car→ hydraulic bracket→ Electric control
Please Visit our web site for more details or get offers from our email:
SINO POWER INDUSTRIAL CO., LIMITED -shsinopower.com
Mail: shawn@shsinopower.com
(Please send inquiry to above email address directly,Thanks)
