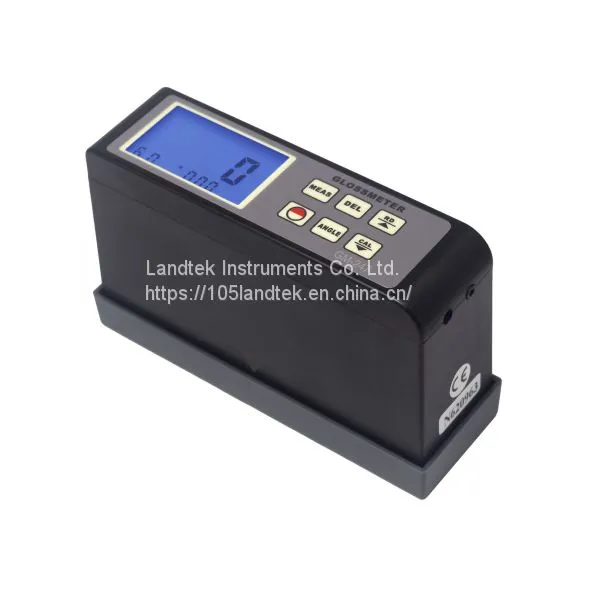

20°/45°/75°Gloss Meter (Integral Type) GM-247
Applications:
Gloss meter have different kinds of measurement angles.Generally,20°applies to High Gloss Materials,45°applies to Medium Gloss Materials,75°applies to Low Gloss Materials.
Features:
* In accordance with international standard ASTMD523, ASTMD1455, ASTMC346, ASTMC584, ASTMD2457, DIN ENISO2813, DIN67530, ENISO7668, JISZ8741, MFT30064, TAPPIT480, GB9754, GB/T13891, GB7706 and GB8807. Its technical parameters conform with JJG696-2002.
* Accurate measurement, good repetitiveness.
* Small in size, easy to carry.
* Auto calibration.
* Intelligent design, rapid measurement.
* Able to store 254 groups of measurements.
* Applies USB,Bluetooth data output.
* Built-in lithium ion rechargeable battery.
* Backlight display,suitable for low light environment..
Details:
Display:4 Digits Backlit LCD
Measuring Angle:20°/45°/75°
Range:0.1 ~ 200 Gloss Units
Gloss Units:GU
Accuracy:±1.0 GU
Resolution:0.1
Repeatability:±0.5 GU
Measuring Area:7 x 14 mm（Ellipse）
Data Memorized:254 Groups
Operating Conditions:
Temp:0 ~ 40°C
Humidity:
Power Supply:
3.7 V Lithium Ion Rechargeable Battery
Dimensions:140 x 45 x 75 mm
Weight:305 g(Including Batteries)
Standard Accessories:
Main Unit
Holder with Calibration Standard
AC Adapter
Optical Cleaning Cloth
Carrying Case(B04)
Operation Manual
Optional Accessories:
USB Data Cable with Software
Bluetooth Data Adapter with Software
