Home > Manufacturing & Processing Machinery > Petroleum Equipment & Machinery > Pumping Unit > Oilfield Well Drilling Mud Tank Use Solid Control Equipment Vacuum Degasser
Oilfield Well Drilling Mud Tank Use Solid Control Equipment Vacuum Degasser
US$ 1550 - 6350
MOQ: 5 Sets
Key Specifications
Get Latest Price
Brand Name:
STAR
Place of Origin:
China
Model Number:
ZCQ-1/4
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin,Qingdao,Shanghai,Lianyungang,Guangzhou,Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Oilfield Drilling Rid Drilling Fluid Solid Control Equipment Mud Tank Bottom ValveUS$ 295 - 515MOQ: 1 Set -
Sell Oilfield Well Drilling Rig Parts Drilling Fluid Treatment Solid Control Device DesanderUS$ 1588 - 3175MOQ: 1 Set
-
Sell Oilfield Use Environmental Protection Equipment Remote Control Electronic and Diesel Ignition DeviceUS$ 2380 - 3970MOQ: 1 Set
-
Sell Oilfield Use Well Drilling With Mud Tank Solid Control Mud Treatment Equipment Drilling Fluid Mud PumpUS$ 7695 - 46250MOQ: 1 Set
-
Sell Oilfield Equipment On Mud Tank Drilling Fluid Cleaning Treatment Device Solid Control Equipment Shale ShakerUS$ 6150 - 15385MOQ: 1 Set
Brand Name
STAR
Place of Origin
China
Model Number
ZCQ-1/4
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
2Years
Weight
1850KG
Dimension(L*W*H)
1900x900x2200
Production Capacity
95%
Voltage
60Hz
Certification
ISO, API
Condition
New
Features
specifically handles invading drilling fluids, invasive gas in drilling fluid can be quickly removed, recovery drilling fluid proportioin and stable drilling fluid performance.
Power(W)
15
Product Application
Vacuum Degassing is a solid-control device that specifically handles invading drilling fluids, invasive gas in drilling fluid can be quickly removed, recovery drilling fluid proportioin and stable drilling fluid performance. It is an indispensable equipment for exploration wells, ultra-deep wells and underbalanced well drilling projects, suitable for supporting various drilling fluid circulation perification systems.
Vacuum Degasser

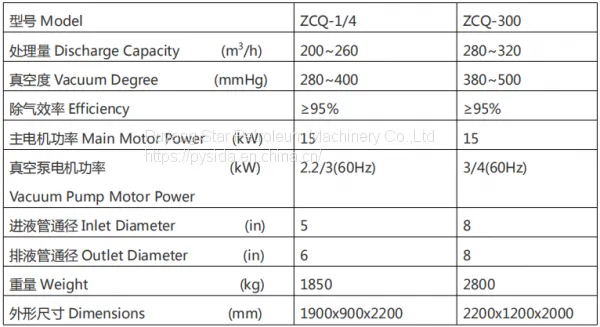

Vacuum Degassing is Main Specifications:

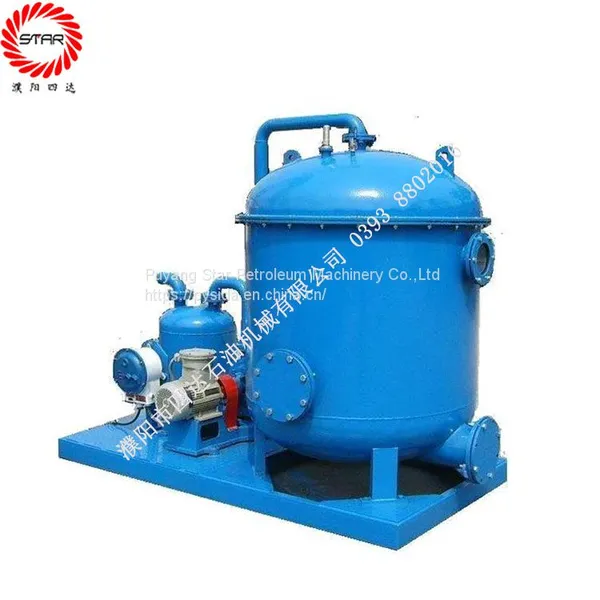

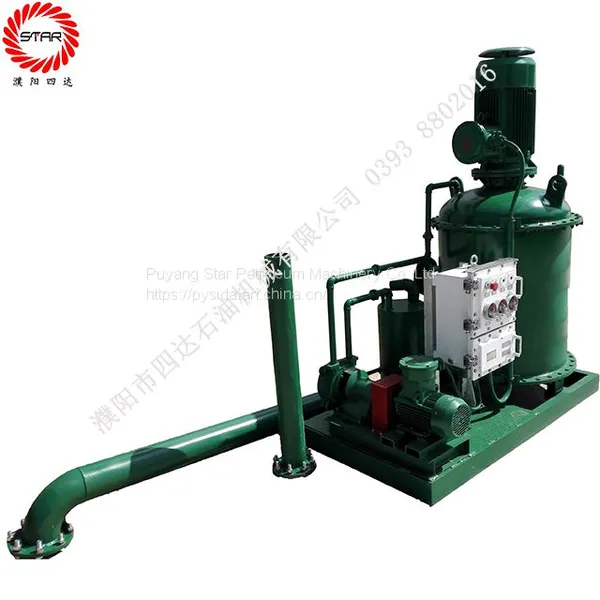

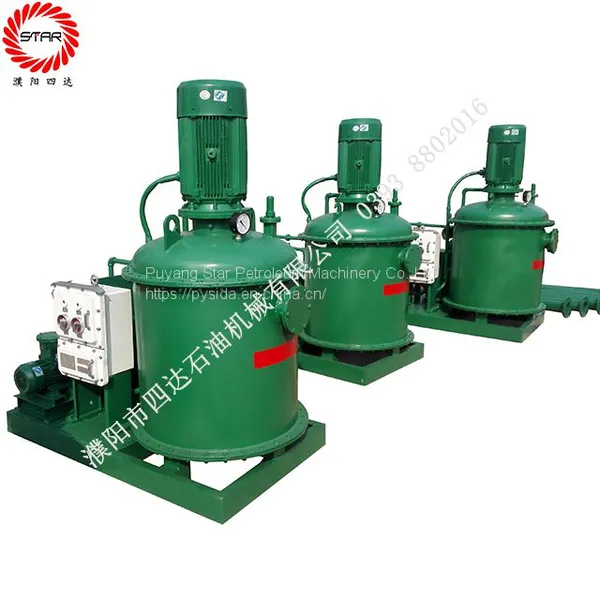

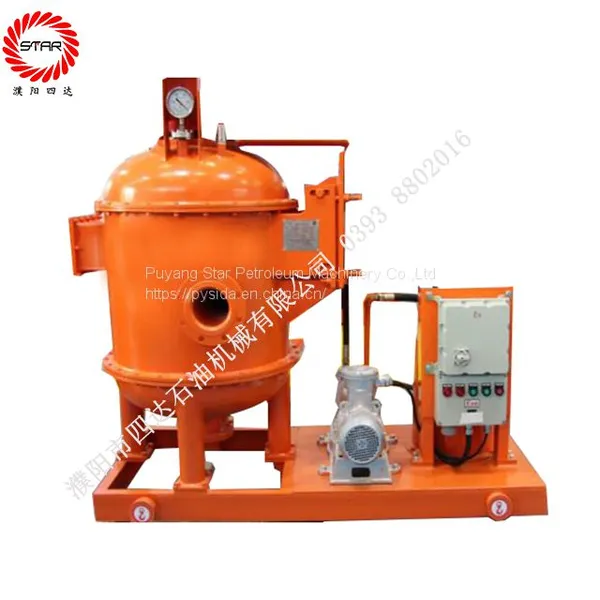

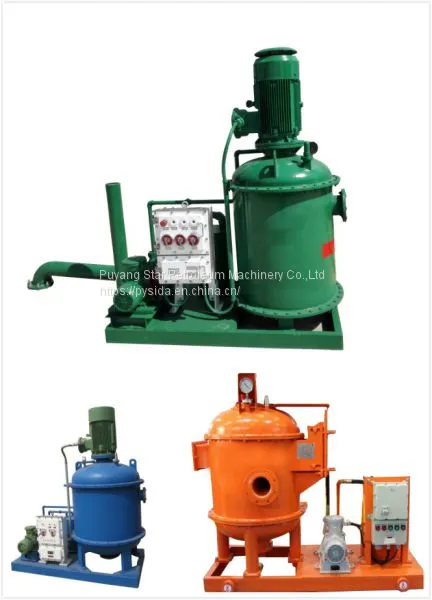

Product Display
Structural characteristics of vacuum deaerator machine:
1.The suction of the vacuum pump causes the mud to enter the vacuum tank and use it to draw the gas out of the vacuum tank, where the vacuum pump serves two different functions.
2. In the working process, the water ring vacuum pump is always in the isothermal state, suitable for the flammable and explosive gas suction, and the safety performance is reliable.
3. The mud shoots through the window of the rotor at high speed to the four walls. The bubbles in the mud are completely broken and the degassing effect is good.
4. The main motor is biased and the overall center of gravity is reduced.
5. The use of a belt drive avoids the complexity of the reduction mechanism.
6. The application of steam separator will not cause water and gas to be discharged at the same time, so that the exhaust pipe is always open. In addition, water can be circulated to the vacuum pump, saving water.
7. The suction pipe is inserted into the mud tank and can be used as a high-power stirrer when the mud is not immersed.
2. In the working process, the water ring vacuum pump is always in the isothermal state, suitable for the flammable and explosive gas suction, and the safety performance is reliable.
3. The mud shoots through the window of the rotor at high speed to the four walls. The bubbles in the mud are completely broken and the degassing effect is good.
4. The main motor is biased and the overall center of gravity is reduced.
5. The use of a belt drive avoids the complexity of the reduction mechanism.
6. The application of steam separator will not cause water and gas to be discharged at the same time, so that the exhaust pipe is always open. In addition, water can be circulated to the vacuum pump, saving water.
7. The suction pipe is inserted into the mud tank and can be used as a high-power stirrer when the mud is not immersed.
Want to know more,please be free to contact Lillian----
1.By Trademanager
2.By Following information
Remark:please supply more detail require specification ,that I can back the quotation to you soon.
