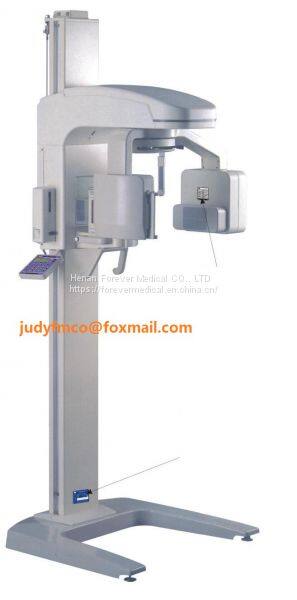

Medical X-ray Equipments & Accessories Properties Panoramic Dental X ray
YJ-QD2000 Product Description
Input Voltage: 220V±10% 50Hz±1Hz fuse≤1Ω
Input Power
Instantaneous Loading: 2500W Standby Mode: 110W 0.5A
Fuse: 15A (Ø6x30)
Anode Voltage
Automatic: 60kV-88kW
Manual: 60kV-88kW
Anode Current
Panorama: 12mA±20%
TMJ: 12mA±20%
Focus: 0.5x0.5mm
Zoom: 1.20-1.30
X-ray Tube
X-ray Generator: high frequency DC generator
Total Filtrations: 2.5MMAL Exposure Time
Panoramic: 14s
TMJ: 3 seconds x4
Film Size: 150x300mm
X-ray Cassette: 150mm, 300mm X-ray Intensification: MSL-40
Vertical Range of Tube Head: 853-1643mm
Lifting Device: Manual electromagnetically locked
Panoramic Parameters
IEC Classification: Class I, type B
Power Supply: 220V, 50/60Hz, 10A (can be adjusted as customer's require) Mains Resistance:
X-ray generator: High frequency dc at 20 kHz
Anodic Voltage: 60-86 kV, Constant Potential
Anodic Current: 4-10 mA, Direct Current
Focus size: 0.5*0.5mm
Inherent Filtration: 2.5 mm Al
Column Heigth: 230cm
Displacement: 90 cm, from 90 to 180 cm
Vertical Movement: Manual Adjustment
Patient Positioning: Manual Carriage Adjustment
Centering Light Lateral
Centering Chin rest
Reference with bite wing
Parameters:
| Pan | Ceph | |
| Focus Film | 51cm | 158cm |
| Distance | ||
| Exposure | 19s | 0.2 to 3.5s(12steps) mAs from 2 to 35 |
| Projections | Adult(19s) | Antero Posterior |
| Children(16s) | ||
| Half left(10s) | Latero lateral | |
| Half right(10s) | With soft tissue filter | |
| Frontal Teech(12s) | ||
| TMJ opened and closed | ||
| Month (4*3.2s) | ||
| Frontal Sinuses(18s) | ||
| Cooling pause | Automatically controlled | Automatically controlled |
| 6 min ma | 60s max | |
| Film size | 15*30 cm, flat cassette | 18*24 cm or 8*10 cm |
| Weight | 120kgs | 50kgs |
