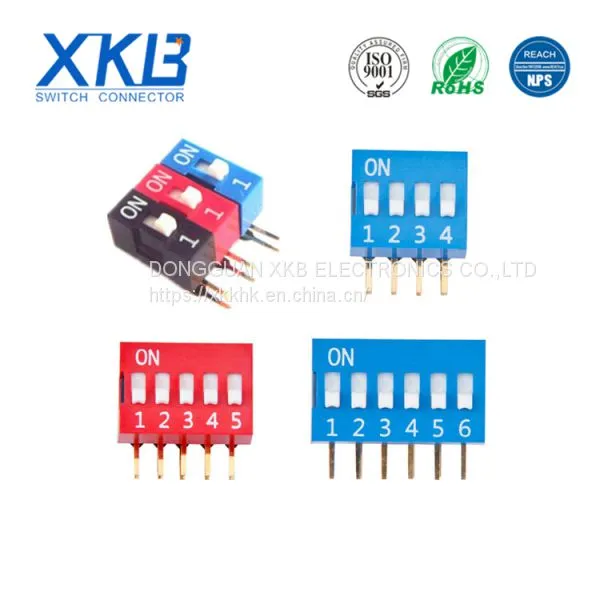

Black red blue 2-12 positions 2.54mm pitch on/off Dip switch
USD $1.2 - $1.5
/ Piece
1000 Pieces(Min.Order)
- 1000 Piece / Pieces per Month
- Shenzhen/Hongkong/Xiamen
- T/T L/C PayPal
You May Like
-
4holes RCA jack AV socket
-
AV socket AV6 double-six-hole socket RCA jack video with metal
-
Good quality single socket RCA as AV connector
-
4 holes jack socket RCA as AV connector
-
Bluetooth 4.0 Wireless Anti lost alarm with Bluetooth Remote control for iPhone Samsung smartphone
-
KDC-A04 Power Switch 4pin
Product Details
| Brand Name: | XKB | Place of Origin: | China | Model Number: | DA-XX |
Product Description
Product Name:Dip Switch
Model Number:DA-XX(2.54MM)
Color:Black/Red/Blue
Pitch:2.54mm
Position:2.3.4.5.6.7.8.9.10.11.12
Contact Rating:25MA，24V DC
Contact Resistance:50MΩ Max
Insulation Resistance:100 MΩ Min.500V DC
Dielectric Strength: 500V AC 1 minute
Operating Force:1000gf max
Travel:2mm
Operating Life:2000 cycles
Operating Temp.:-40℃-+85℃
Storage Temp.:-40℃-+85℃
