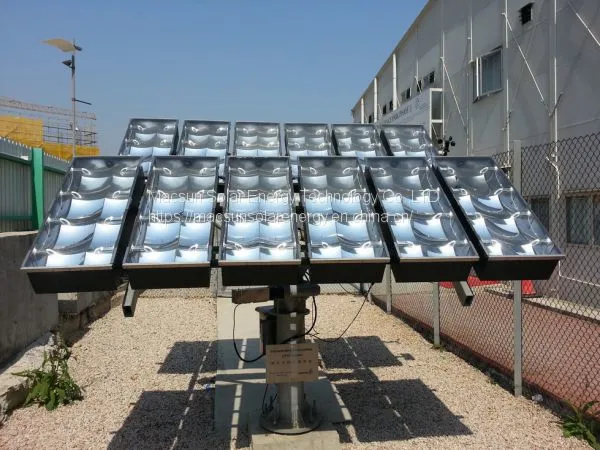

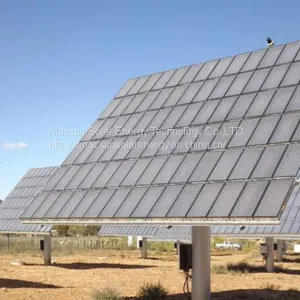

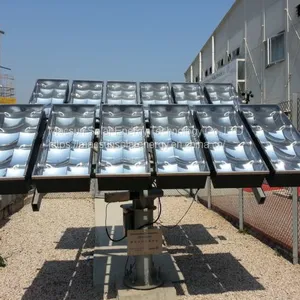

Help CenterHot Selling Solar Tracker Solar Tracking System Dual Axis Tracker for PV With Factory Price
Related Products
-
Concentrated Photovoltaic CPV Solar Tracking System Dual Axis Tracker for CPV With Factory PriceUS$ 0.42 - 0.51MOQ: 1 Piece -
Concentrated Photovoltaic CPV Solar Tracking System Dual Axis Tracker for CPV With Factory PriceUS$ 0.42 - 0.98MOQ: 1 Piece
-
Hot Sale Automatic Solar Tracking System Dual Axis Solar Tracking System With Factory PriceUS$ 0.36 - 0.40MOQ: 1 Watt
-
Macsun Solar PV Solar Tracking System Dual Axis Tracker for CPVUS$ 0.16 - 0.51MOQ: 1 Watt
-
Macsun Solar Best Selling Solar Tracker Solar Tracking System Dual Axis Solar Tracking System for PV and CPVUS$ 0.42 - 0.51MOQ: 1 Piece
Technical details:
Model MST-300: Ground / Roof Type --- PV & CPV Tracker
Type of Solar Tracker: Dual Axis Tracker with linear actuator for tilting and slew drive for positioning.
Tracking Accuracy (Up to 16m/s)： ± 0.1° (including deflection in wind at all points on array)
Design Temperature Range: - 40°C to +70 °C
Operation temperature range: - 30°C to +55°C
Maximum Operational Wind Speed: 22m/s (79km/hr) - at which speed the system moves into stow position
Absolute Maximum Wind Speed: 40 m/s
Array Area: up to 6 m2 / (depends on module dimension and weigh)
Post Height: 2.3m
Maximum Height: 3.66 m
Weight: 600 kg (excluding modules)
Payload: kg (Solar modules only)
System Design Lifetime: 25 years
Elevation Tracking Range: 0° to 75°
Azimuth Tracking Range: 0~270° and 0~450° (For different latitude use)
Control Type: Light sensor + Historic tracking
Tracking Type: Dual-axis tracking
Automatic high wind stow function (option with wind speedmeter)
Emergency stop button on tracker
Safety Feature: Safe positions for maintenance operations
IP Rating IP 65
Labview remote monitoring (option)
Control Box Power Supply Source: 110/ 220V AC
