Product Description:

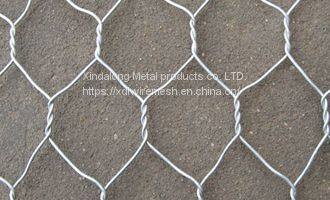

Hexagonal wire mesh is also known by the name of chicken mesh.

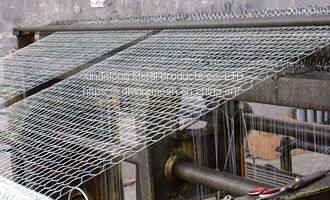

Hexagonal opening wire mesh offers good ventilation and fencing uses. Hexagonal wire mesh is made of twisting carbon steel wire, electro or hot dipped galvanized, then plastic coated, or plain.
| PVC Coated Hexagonal Wire Netting | |||
| Mesh |
Wire Gauge (mm) |
Width |
|
| Inch | mm | ||
| 1/2'' | 13 | 0.6—1.0 | 2'—2 m |
| 3/4'' | 19 | 0.6—1.0 | 2'—2 m |
| 1'' | 25 | 0.7—1.3 | 1'—2 m |
| 1—1/4‘’ | 30 | 0.85—1.3 | 1'—2 m |
| 1—1/2‘’ | 40 | 0.85—1.4 | 1'—2 m |
| 2‘’ | 50 | 1.0—1.4 | 1'—2 m | ||
| Anping Xinlong Wire Mesh Manufacture Co.,Ltd also offer other specification you need | |||||
| Note: 1.The thickness of PVC Coating is usually 0.2-4.0mm, others may arranged as per buyers' request; 2. Package: Normally each roll packed in water proof paper, Then in termo foil(Shrinked Plastic) | |||||
| Galvanized hexagonal wire netting | |||||
| Mesh | Min. Gal.v.G/ | Width | Wire Gauge (Diameter) BWG | ||
| Inch | mm | Tolerance (mm) | SQ.M | ||
| 3/8'' | 10 | ±1.0 | 0.7mm—145 | 2'—1m | 27,26,25,24,23 |
| 1/2'' | 13 | ±1.5 | 0.7mm—95 | 2'—2m | 25,24,23,22,21 |
| 5/8'' | 16 | ±2.0 | 0.7mm—70 | 2'—2m | 27,26,25,24,23,22 |
| 3/4'' | 20 | ±3.0 | 0.7mm—55 | 2'—2m | 25,24,23,22,21,20,19 |
| 1'' | 25 | ±3.0 | 0.9mm—55 | 1'—2m | 25,24,23,22,21,20,19,18 |
| 1—1/4'' | 31 | ±4.0 | 0.9mm—40 | 1'—2m | 23,22,21,20,19,18 |
| 1—1/2'' | 40 | ±5.0 | 1.0mm—45 | 1'—2m | 23,22,21,20,19,18 |
| 2'' | 50 | ±6.0 | 1.2mm—40 | 1'—2m | 23,22,21,20,19,18 |
| 2''—1/2'' | 65 | ±7.0 | 1.0mm—30 | 1'—2m | 21,20,19,18 |
| 3'' | 75 | ±8.0 | 1.4mm—30 | 2'—2m | 20,19,18,17 |
| 4'' | 100 | ±8.0 | 1.6mm—30 | 2'—2m | 19,18,17,16 |
| Note: 1, The above tolerance comply with standard EN 10223-2:1997; 2, Minimum Galvanization is only for typical wire diameter as stipulated separately in the column for your reference; Also it is only for hot dipped galvanized netting. | |||||
Application:

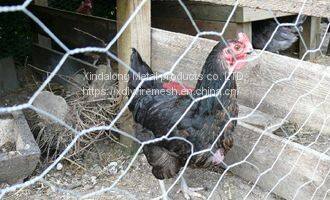

1. Raising chickens, ducks, geese, rabbits and zoo fence.
2. Machinery and equipment protection, highway guardrail.
3. Sports venues fence, rod network protective green belt.
4. Screen in the production of a box-shaped containers, filled with cages, can be used to protect and support the seawall, hillsides, road and bridge, reservoirs and other civil engineering.
Packing:
It has rubber mat at the bottom of the pallet to avoid the pallet destroyed the panels;
It has 4 metal corners to keep the pallet more strong;
It has metal plate under the plastic bandage to reduce the apressure of fence panels;
It has wooden plate at the top of fence panel which can protect the fence panels avoid being crushed by
other pallets.
Welcome send inquiry.
