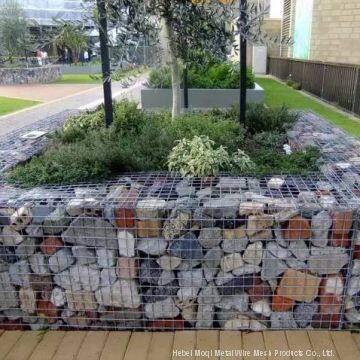

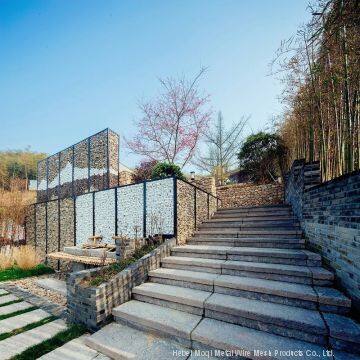

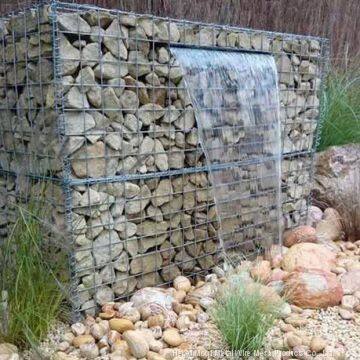

Help CenterAwesome Retaining Wall Using Gabion Baskets Filled With Stones for Landscaping
Related Products
-
Supplier Produce Galvanized Gabion Wire Mesh Use for River Bank ProtectionUS$ 20 - 25MOQ: 100 Rolls -
Low Price Hot Dipped Galvanized 8x10cm Heavy Hexagonal Gabion Wire Mesh for Retaining WallsUS$ 2.5 - 5.5MOQ: 1000 Square Meters
-
Factory Wholesale Hot Dipped Galvanized Welded Wire Mesh Gabion Box PricesUS$ 9.5 - 12.5MOQ: 500 Sets
-
High Quality Galvanized Welding Gabion Retaining Wall, Gabion MeshUS$ 9.5 - 12.5MOQ: 500 Sets
-
Factory Price Woven High Tensile Strength Gabion Mesh for SaleUS$ 2.5 - 5.5MOQ: 1000 Square Meters
Welded Gabion Mesh
Gabion retaining wall is a cage, cylinder, or box filled with rocks, concrete, or sometimes sand and soil.
Gabion Wire mesh can use in civil engineering, road building, and military applications.
The mesh is reinforced on all edges with wires of a larger diameter to strengthen the gabions and facilitate the assembly and installation.
Technical Note:
1. Mesh Size: Mesh openings should be square of nominal dimension of 76.2mm on the grid.
2. Mesh Wire: Nominal wire diameter should be 3.0mm.

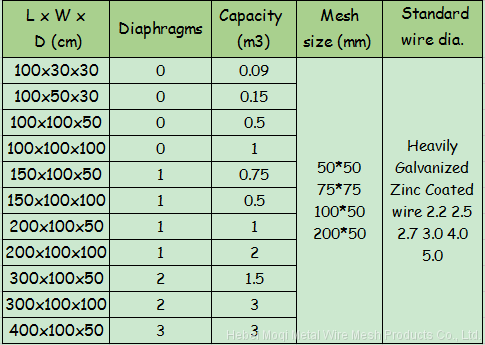

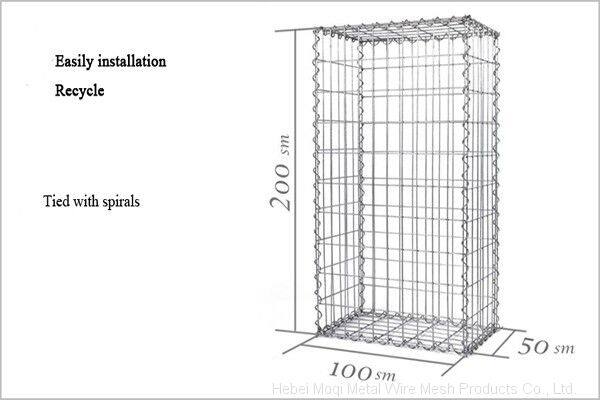

3. Standard Sizes: 2m x1m x1m, 2m x 1m x 0.5m, 1m x1m x1m, 1m x1m x 0.5m, 1.5m x 1m x1m
4. Surface Treatment: 95% zinc 5% aluminium coating for corrosion resistance

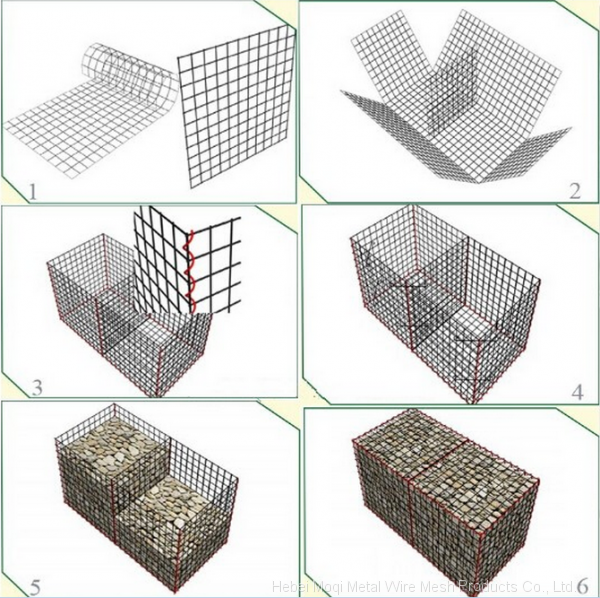

5. Assembly: Assembled with stainless steel clips connecting side panels and diaphragms to the base panel
6. Joining: welded gabion box should be provided with lacing wire for site assembly, which should be of
minimum wire diameter 2.2mm for final joining.

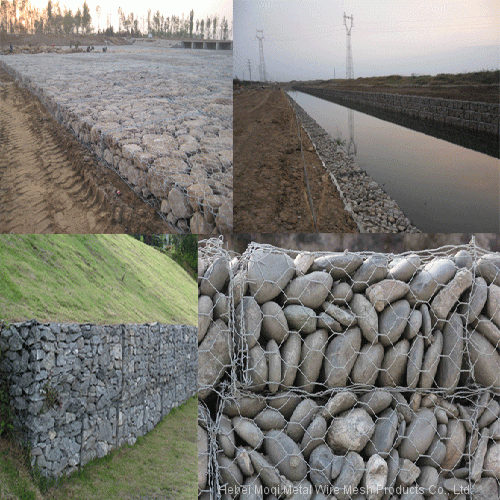

Major Applications of Welded Gabion Box:
1. Retaining wall structures
2. Prevention of current scour and erosion control
3. Bridge protection
4. Hydraulic structures, dams and culverts
5. Embankment protection
6. Rockfall prevention and soil erosion protection
Welded mesh gabions are faster to erect and do not need tensioning. This allows them to keep their shape, to be free from bulges and depressions and fit easily against the wall.

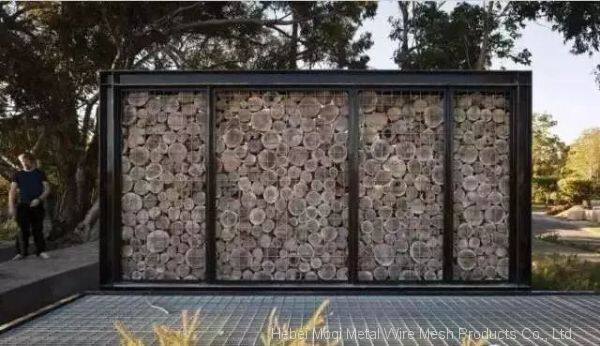

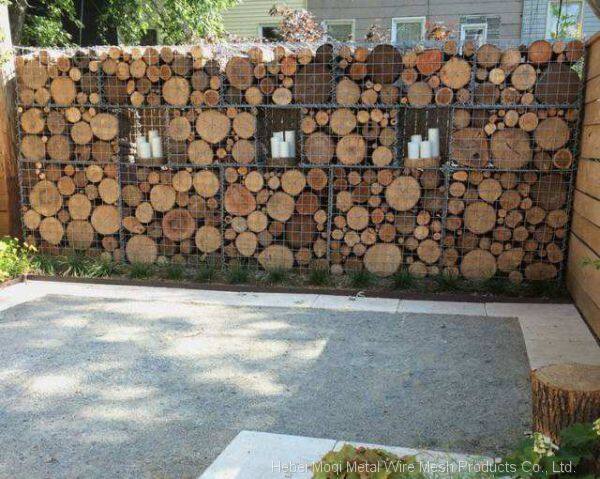

Application
