Agricultural Multi-span Hot Galvanized Steel Greenhouse Frame for Tomato

Agricultural Multi-span Hot Galvanized Steel Greenhouse Frame for Tomato photo-1
Agricultural Multi-span Hot Galvanized Steel Greenhouse Frame for Tomato photo-2

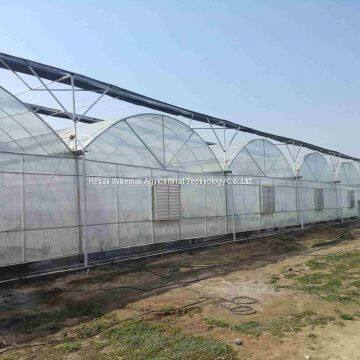

Agricultural Multi-span Hot Galvanized Steel Greenhouse Frame for Tomato photo-3
Agricultural Multi-span Hot Galvanized Steel Greenhouse Frame for Tomato photo-4

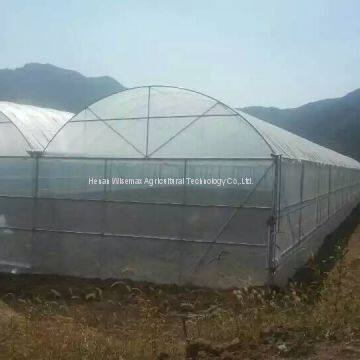

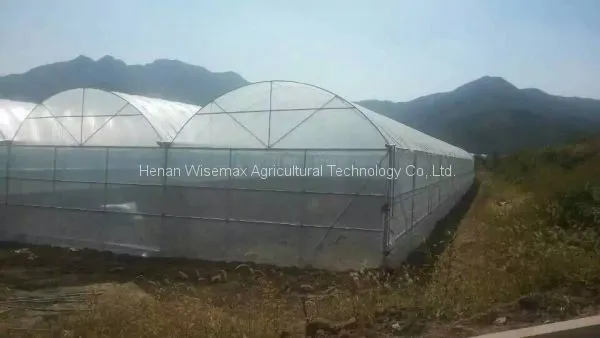

Agricultural Multi-span Hot Galvanized Steel Greenhouse Frame for Tomato photo-5
US$ 8 - 14 MOQ: 500 Square Meters
Key Specifications
Get Latest Price
Brand Name:
wisemax
Place of Origin:
China
Model Number:
greenhouse frame
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai,qingdao,tianjin
Delivery Detail:
10 days
Brand Name wisemax
Place of Origin China
Model Number greenhouse frame
Cover Material Film
Layer Single
Material PE
Type Multi-Span Agricultural Greenhouses
Size Large

(1)We can design the greenhouse for you according to your needs

(2)Overseas engineer for guiding installation is available

(3)Hot selling multi span models: 32x16m, 32x32m, 40x16m, 40x32m, 40x40m, 40x48m, 48x48m,60x64m, 64x64m, 100x96m, 100x104m.

Technical Parameter(All Parameter can be changed according to your needs)
Length
30-100m or customized
Span Width
8m,9m,9.6m,10.8m,12m
Shoulder height
2.0-5.0m
  Top Height
3.5-7.0m
  Gutter Height
3-4.5m
Rainfall
140mm/h
Crops hanging load
0.15KN/M2
Snow load
0.35KN/M2


Standard Structure: Hot galvanized steel pipe

(1)Main pillar:100(80)x50x3mm hot galvanized steel square tubes
(2)Deputy pillar:50x50x2mm hot galvanized steel square tubes
(3)Arch pipe:32x1.5mm galvanized steel pipe
(4)Gutter:thickness is 1.5m,length is 4m
(5)Horizontal bar:32x1.5mm galvanized steel pipe
(6)Boom:32x1.5mm galvanized steel pipe
(7)Service life: 10-15years

Products Details
Greenhouse Frame

(1)The frame works structure is assembled by prefabricated parts. All main parts are hot dipping galvanized after processing with zinc cover 275G/M2;
(2)Pipe Diameter:25mm,32mm ,Spacing:1.0m/1.5m/2.0 m

Covering Material

(1)80-200micron 3 layers extruding film
(2)Global light transmission : ≥ 90%
(3)Feature:Anti-fog, Anti-UV, Anti-Aging, Anti-Mildew, Anti-drip, etc.(4) Temperature range: -40 C to +60 C. D.3 years guarantee, 5 years life

Ventilation system

(1)Roof Ventilation:Manual operation&Automatic operation


(2)Side Ventilation:Manual film roller&Automatic Roller motor


Shading System

(1)Outside Shading:55%,75%shading rate


(2)Inside Shading:55%,75%,85%,100%shading rate

Cooling System

(1)Cooling pad:Normal height: 1.5m, 2m available for customize, thickness 100mm, (2)includes cooling pad and water supply system.

(2)Cooling fan:1380×1380x400mm Stainless steel blade ,Fan flow:40000m3/h 380V,1100W 4sets for 1sets 36x16m greenhouse

Climate control system

(1).Create more comfortable indoor climate for your greenhouse.
(2).
Accurately and automatically control growing environment.
(3). Maintain optimum conditions for your plants, flowers and vegetables with our climate control equipment.

Heating system

(1). Electric/coal/diesel oil/CNG heating fans and boiler.
(2)• Protect your plants and vegetables in cold weather.
(3)• Maximum performance for human comfort.
(4)• Raise temperature to 28℃ in winter.

Our Service

1.Reliable design:We can design the greenhouse for you according to your needs
2.Greenhouse installation:Engineers can be sent to your country for greenhouse installation.
3.Quality guarantee: We have strict quality control and mature technology ,our products have met the national and the industry standard .All our exports will be strictly inspected before shipment.
4.One-to-one 24 hours full-time online service:any questions,please contact us.
5.After service:If any quality problems occurs within the guarantee period,we will take our responsibility and provide on site service if needed.   warehouse

Optional Equipment
Ebb&Flow(Flood) Rolling Bench

(1)Tray Materials: ABS, thickness:3.0mm, deepth:7mm.
(2)Color: Gray, UV protective abilities


Seedbed

(1)Size: L6mxW 1.5mx0.7H, silk thickness: 3mm, mesh: 3x13mm,with movable shelf.

Our Warehouse

(1)We have a IQC who have 10-year experience,when the raw materials incoming,they all need him personally check.

(2)Our galvanized steel is mainly supplied by Baosteel Group Co., Ltd. and Anshan Iron & Steel Group Co., Ltd.They are most powerful domestic steel company, specializing in the production of high content, high value-added steel products, and also exported to many countries.So the quality must be guaranteed.
